ASTM D5 Penetrometer of Bituminous Materials, Asphalt Needle Penetration Tester

ASTM D5 Penetrometer of Bituminous Materials, Asphalt Needle Penetration Tester
ASTM D5 Penetrometer of Bituminous Materials, Asphalt Needle Penetration Tester ASTM D5 Penetrometer of Bituminous Materials, Asphalt Needle Penetration Tester ASTM D5 Penetrometer of Bituminous Materials, Asphalt Needle Penetration Tester ASTM D5 Penetrometer of Bituminous Materials, Asphalt Needle Penetration Tester ASTM D5 Penetrometer of Bituminous Materials, Asphalt Needle Penetration Tester ASTM D5 Penetrometer of Bituminous Materials, Asphalt Needle Penetration Tester ASTM D5 Penetrometer of Bituminous Materials, Asphalt Needle Penetration Tester ASTM D5 Penetrometer of Bituminous Materials, Asphalt Needle Penetration Tester ASTM D5 Penetrometer of Bituminous Materials, Asphalt Needle Penetration Tester ASTM D5 Penetrometer of Bituminous Materials, Asphalt Needle Penetration Tester ASTM D5 Penetrometer of Bituminous Materials, Asphalt Needle Penetration Tester ASTM D5 Penetrometer of Bituminous Materials, Asphalt Needle Penetration Tester
Basic Information
Place of Origin: China
Brand Name: Advanced Instruments
Certification: ASTM D5
Model Number: AIC-2801E1
Minimum Order Quantity: 1 set
Price: US$1000-2000/set
Packaging Details: Plywood Case
Delivery Time: 20days
Payment Terms: T/T, L/C, D/P
Supply Ability: 50Sets Per Month
Get Best Price Contact Now
Test Standard: ASTM D5 Warranty: 1full Year
Transport Package: Plywood Case Trandmark: Advanced Instruments
Operating Power Supply: AC220 V±10V, 50Hz Total Power Consumption: ≤300W
Measurement Range: 0 Penetration~600 Penetrations Resolution: 0.1 Penetration(0.01mm)
Timing Range: 5s, 8s, 10s, 12s, 30s, 60s Temperature Control Accuracy: 25 ℃± 0.1 ℃
Constant Temperature Bath: Hard Glass Chamber Net Weight: 16kg
Highlight:

ASTM D5

,

Penetrometer of Bituminous Materials

,

Asphalt Needle Penetration Tester

General Introduction



This penetrometer is designed and made as per T0604-2011 Penetration Test for Bituminous Materials in JTG E20-2011 Specification and Test Methods of Bitumen and Bituminous Mixture for Highway Engineering and ASTM D5 Standard Test Method for Penetration of Bituminous Materials. The penetrometer is used to determine the penetration of pavement petroleum asphalt, modified asphalt, liquid petroleum asphalt and emulsified asphalt. It is also suitable to test solid particle, powder, colloid and raw-food materials such as cheese, glycine, butter, cream and leavening. It can be widely used in food industry, highway engineering and other industrial fields.



Product Advantages



1.High-precision temperature controller, sensor, heating tube; The temperature setting is convenient, and the temperature control accuracy is high, reaching ±0.1°C.

2.Equipped with a digital display time control device, the suction and release of the electromagnet are controlled after the set time is reached, so that the push rod falls and stops moving.

3.Equipped with a cold light source illumination device and a magnifying glass, which is convenient for precise use and operation during testing.

4.Equipped with a 100% millimeter ruler depth measuring mechanism with LCD digital clearing, the data is stable and accurate, with an accuracy of 0.1 pin (cone) needle penetration, with zeroing and memory functions, and the data is stable and checkable.

5.The maximum measurable needle (cone) penetration value is not less than 600 units, which can adapt to various test requirements.

6.The unique electric upgrade structure controls the rough adjustment and fine-tuning functions of the lifting frame by the stepper motor, which is convenient for the needle tip to align with the specimen plane; It solves the shortcomings of the short service life of the original gear lifting structure and improves the durability of the equipment.

7.The lifting frame has the function of automatically controlling the drop and locking of the needle (cone) rod, and can automatically stop steadily in any position.

8.The operating table is equipped with horizontal bubbles, and the bottom stainless steel foot has an adjustment function to ensure the high level of the instrument.

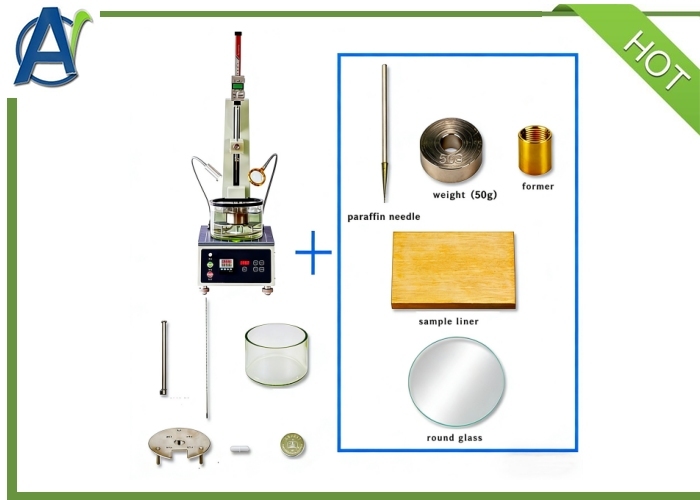

9. The optional accessories of the instrument include grease cone penetration, asphalt penetration, petroleum wax penetration, etc., and carry out corresponding experiments.

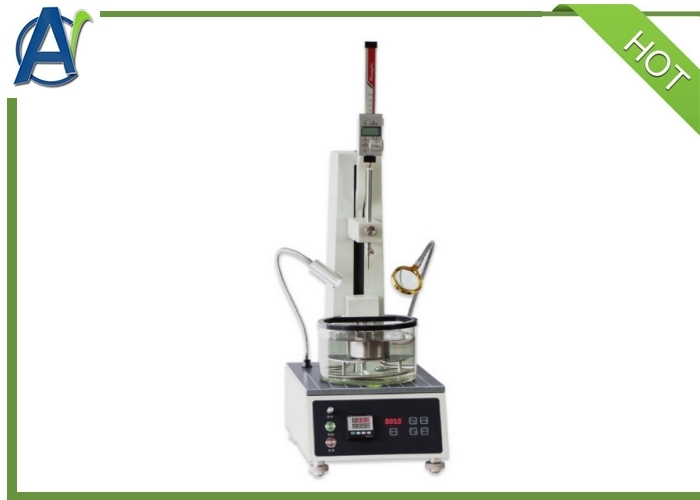

ASTM D5 Penetrometer of Bituminous Materials, Asphalt Needle Penetration Tester 0


The Technical Specifications and Parameters



Power supply AC(220±10%)V, 50Hz
Total power consumption ≤300W
Measurement range (0~600) Penetration
Resolution 0.01mm (0.1 pin penetration)
Needle entry time control

5s, 8s, 10s, 12s, 30s, 60 s,

and the error is less than ±0.1 s

Heater power 200W
Temperature control range (room temperature +5°C) ~60°C
Temperature control accuracy ±0.1℃
Constant temperature bath Hard glass cylinder
Stirring Magnetic stirrer rotates and stirs
Applicable environment Temperature: (15~35)°C, Relative Humidity: ≤85%
Net Weight 16KG
Dimension 260mm×400mm×640mm

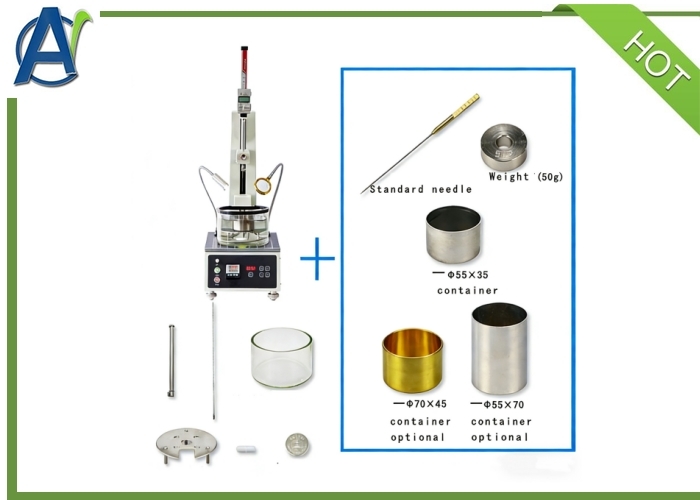

ASTM D5 Penetrometer of Bituminous Materials, Asphalt Needle Penetration Tester 1


FAQ
1.What's the delivery time?
About 20days.
2.What's your payment terms?
30% paid by T/T in advance,70% paid by by T/T before shipping.
3.What's your guarantee terms?
The warranty of all products is 1 year.During this period,we are responsible for all faults caused by us.And we can supply life-long technical support.
4.Can you supply training?
We can supply training in our factory and online training for free.If onsite installation and training are required,please pay for tickets,accommodation and salary USD280/Day for every person.
