| Place of Origin: | China |
|---|---|
| Brand Name: | AI |
| Certification: | ISO |
| Model Number: | DT-II |
| Minimum Order Quantity: | 1 PC Ductility Test Equipment |
| Price: | Negotiable |
| Packaging Details: | Ductility Test Equipment packed in Plywood case |
| Delivery Time: | 15 days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 1000 PC/Month |
| Test Standard: | ASTM D113 | Power Supply: | AC220V(-5%～+10%),50Hz |
|---|---|---|---|
| Measuring Range: | 1.5m（±10mm） | Temperature Range: | (5~50)℃ |
| Tensile Speed: | 10mm/min And 50mm/min | Force Measurement: | (0～300)N |
| Size: | 2365mm×530mm×950mm | Power Consumption: | ≤5600W |
| Highlight: | Ductility Test Equipment,ASTM D113,Ductilometer |
||

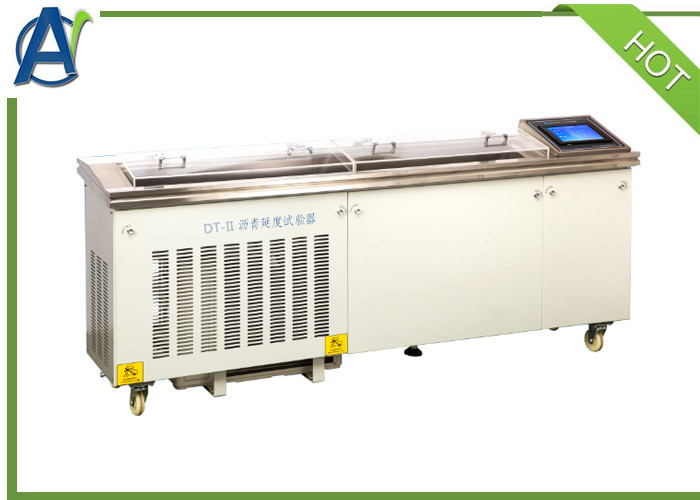

ASTM D113 Asphalt Ductility Tester Ductilometer Ducilimeter Apparatus
1. This ductiometer is designed with full touch screen operation, convenient and fast.
2. 32-bit ARM microcontroller control, automatically control the water bath’s temperature, automatically collect, deal with dragging and force data.
3. Novel design of stretch drive, uniform speed, accurate display of ductility and force.
4. Shield type cold heat balance pressurization cycle system, to ensure the temperature in the bath is uniform.
5. Data storage, easy to query.
6. Automatically calculate and display average ductility value, max.force, elongation deformation value at maximum force and etc.
1. Power supply: AC(220±10%)V, 50Hz;
2. Measurement distance: 1.5m(±10mm);
3. Heating mode: Electric heater;
4. Temperature control mode: Shield type cold heat balance pressurization cycle system;
5. Temperature control range: (5~50)℃, adjustable. Resolution is 0.01℃;
6. Temperature control accuracy: ±0.1℃;
7. Tensile speed: 10mm/min and 50mm/min, two grades;
8. Measurement accuracy: ±1 mm;
9. Ductility display: Display in real time;
10. Ductility record: By touching screen;
11. Force measurement: (0～300)N;
12. Force accuracy:±1N;
13. Data output:Real time display of industrial touch screen;
14. Refrigeration mode: Compressor refrigeration;
15. Ambient temperature: (15~+35)℃;
16. Relative humidity: ≤85%;
17. Dimension: 2365mm×530mm×950mm;
18. Total power consumption: ≤5600W;
III.Accessories list
| No. | Name | Unit | Qty |
| 1 | DT-II Bitumen Ductility Testing Machine | Set | 1 |
| 2 | Test module | Pair | 3 |
| 3 | Mould frame | Pair | 3 |
| 4 | Asphalt elastic recovery (force ductility measurement) test module | Pair | 3 |
| 5 | Asphalt elastic recovery (force ductility measurement) module frame | Pair | 3 |
| 6 |
Thermometer (0~50℃, resolution 0.1 ℃) |
Piece | 1 |
| 7 |
Socket(250V 32A,three cores) |
Piece | 1 |
| 8 |
Wireless remote control ductility recorder |
Piece | 1 |
| 9 | Test module plate | Piece | 1 |
