5KVA 5KV No Partial Discharge And Withstand Voltage Test System

5KVA 5KV No Partial Discharge And Withstand Voltage Test System
5KVA 5KV No Partial Discharge And Withstand Voltage Test System 5KVA 5KV No Partial Discharge And Withstand Voltage Test System 5KVA 5KV No Partial Discharge And Withstand Voltage Test System 5KVA 5KV No Partial Discharge And Withstand Voltage Test System 5KVA 5KV No Partial Discharge And Withstand Voltage Test System 5KVA 5KV No Partial Discharge And Withstand Voltage Test System 5KVA 5KV No Partial Discharge And Withstand Voltage Test System 5KVA 5KV No Partial Discharge And Withstand Voltage Test System 5KVA 5KV No Partial Discharge And Withstand Voltage Test System
Basic Information
Place of Origin: China
Brand Name: AI
Certification: ISO
Model Number: AIC-5/5
Minimum Order Quantity: 1 set No Partial Discharge and Withstand Voltage Test System
Price: Negotiable
Packaging Details: Plywood case
Delivery Time: 30 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 200 sets per month
Get Best Price Contact Now
Sampling Rate: 0.5M,1M,2.5M,5M,10M,20M Range Switching: 60dB,40dB,20dB,0dB,-20dB
Frequency Band Range: 20k-100kHz,80k-200kHz,40k-300kHz Display: 7 "TFT True Color Touch LCD
Storage: 256MB DDR2,running Memory SD Card: Standard 16G Card
Interface: RS232 And USB Rated Voltage: AC 220V
Capacity: 5KVA Output Voltage: 0~250V
Highlight:

Partial Discharge Tester

,

No Partial Discharge Tester

,

Withstand Voltage Test

Product description:

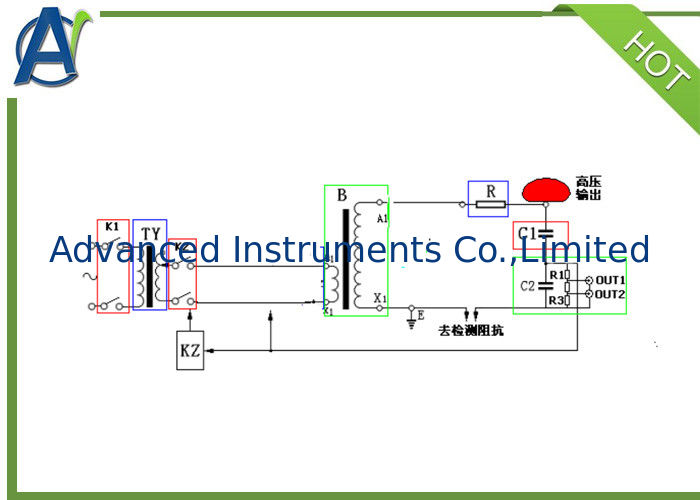

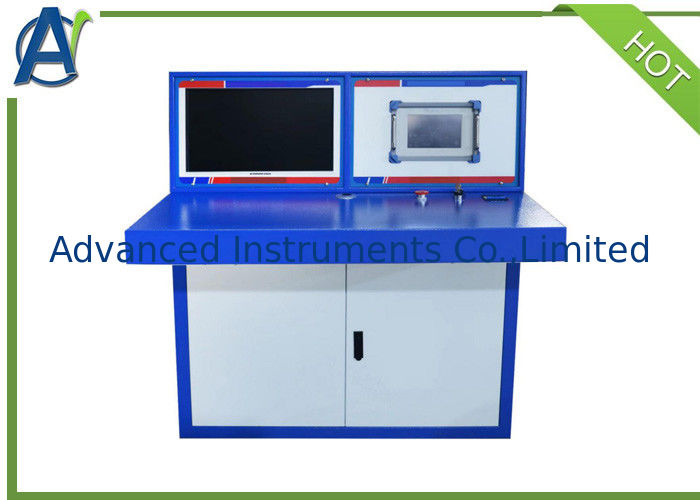

AIC-5/5 power frequency non partial discharge test system is mainly used for voltage withstand strength and partial discharge test of 5kV electrical equipment and insulating material.

Standard:

JB/T9641 Test Transformer

GB/T16927.1 High voltage test techniques Part 1: General test requirements

GB/T16927.2 High voltage test technology Part 2: Measuring system

GB7328 Sound Level Measurement of Transformers and Reactors

GB/7354 Partial discharge measurement

JB/T563 Technical Conditions for Ordering Coupling Capacitors and Capacitor Voltage Dividers

JB/T8169 Coupling Capacitor and Capacitor Voltage Divider

GB4208 Enclosure Protection Class

GB/T191 Packaging Pictorial Marks for Storage and Transportation

DL/T 848.2 General Specifications for High Voltage Test Equipment




Technical specifications of Fully Automatic Controller

1 Name Automatic power frequency non partial discharge test bench
2 Rated voltage AC 220V
3 Capacity 5kVA
4 Output voltage 0~250V
5 Voltage accuracy ±0.5%
6 Current accuracy ±0.5%
7 Display method 17 inch controller
8 Operation method Automatic,manual
9 Data storage 1000 groups
10 Password Multi level permission setting
Six Protections for Safer Use
1 Low voltage protection Low voltage current protection
2 High voltage protection High current protection
3 High voltage over-voltage protection High voltage flashover protection
Software interface
1 Operation status transition information prompt During automatic test, 5 stages of test can be set
2 Automatically provide report enquiry, data and graphics Protection status prompt
3 Voltage and time curves Working status display of primary circuit


Technical specifications of Partial discharge measurement unit:

Parameters
Number of Channels Two electrical signal interfaces and one external synchronization interface
Sampling rate 0.5M,1M,2.5M,5M,10M,20M optional
Sampling accuracy 12bit
Range switching 60dB,40dB,20dB,0dB,-20dB,5 gears in total
Frequency Band range 20k-100kHz,80k-200kHz,40k-300kHz
Nonlinear error of this range 0.05
Display
Display screen 7 "TFT true color touch LCD
Resolution 800×480
Storage
Physical storage 256MB DDR2,running memory
SD card Standard 16G card, which can be upgraded to 32G, is used to store test records and test data
Interface
RS232 Used for synchronous transmission interface with PC
USB Used for synchronous transmission with PC, external mouse and keyboard, and external mobile storage device interface
Power mode Battery power supply (16.8V lithium battery)+external power supply (18V) can provide power supply for 8 hours continuously
Electrical signal interface Two BNC interfaces (two on the front and two on the rear panel) for signal input
SMA interface External synchronization interface
SD card slot SD card supporting up to 32G can be inserted
Internet port extensible
Grounding button For external grounding
General description
CPU Dominant frequency 533MHz
System WINCE6.0
Operating ambient temperature -20℃~45℃
Storage ambient temperature -20℃~60℃
Dimension L*W*H:249mm × 216mm × 167mm
Weight 4.7kg



5KVA 5KV No Partial Discharge And Withstand Voltage Test System 0
