| Place of Origin: | China |
|---|---|
| Brand Name: | AI |
| Certification: | ISO |
| Model Number: | ACT |
| Minimum Order Quantity: | 1 PC ASTM D6307 Asphalt Content Test Machine |
| Price: | Negotiable |

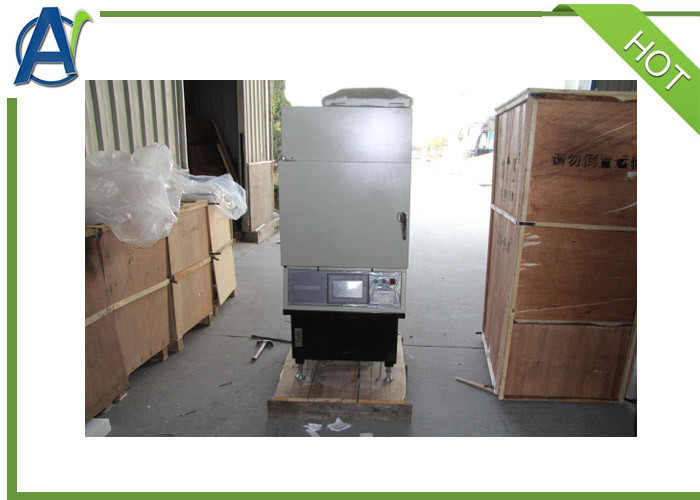

| Packaging Details: | ASTM D6307 Asphalt Content Test Machine packed in Plywood case |
| Delivery Time: | 10 days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 1000 PC/Month |
| Test Standard: | ASTM D6307 | Test Method: | Ignition Method |
|---|---|---|---|
| Power Supply: | AC380V ± 10V, 50Hz | Maximum Sample Weight: | 4000g |
| Maximum Temperature: | 800℃ | Size: | 700 Mm × 800mm × 1550mm |
| Warrnty: | 1 Year | Purpose: | Determine The Asphalt Content Of The Bituminous Mixtures |
| Highlight: | Asphalt Content Test Machine,Asphalt Content Test Machine by Ignition,ASTM D6307 Ignition Method |
||
Introduction:

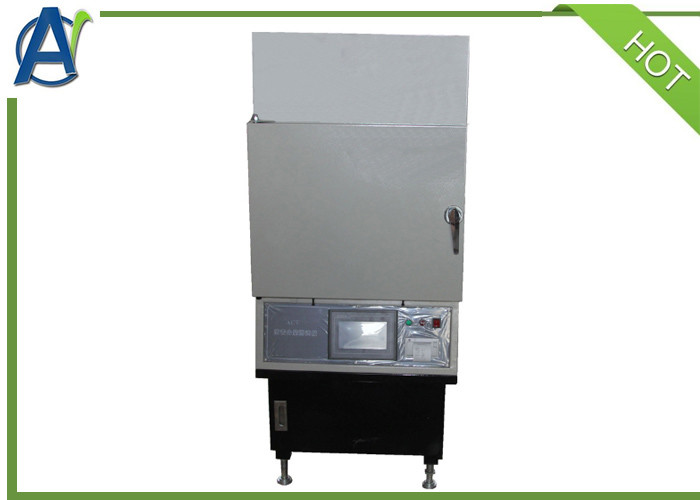

The asphalt content test machine is designed and made as per T0735-2011 “Asphalt Content Test in Bituminous Mixtures ( Combustion Furnace Method )”in JTG E20-2011 Standard Test Methods of Bitumen and Bituminous Mixtures for Highway Engineering. The instrument can determine asphalt content rapidly, correctly, safely and reliably .And it is suitable to determine the asphalt content of the bituminous mixtures .It is also used to analysis the asphalt mixtures after the combustion .
The asphalt content test machin is also as per requirements of ASTM D6307-98 and AASHTO T308-99 .
I. Main technical features:
1. The furnace body is made of heat insulation material, the heat preservation effect is good, the preheating time is short, the temperature of the heating is fast, and can be up to the standard working temperature 538 in 30 minutes.
2. Heat insulation performance is good, the furnace internal standard operating temperature, furnace body external temperature below 45 ℃, high safety operation, effectively avoid the high temperature influence on the accuracy of measurement of electronic balance.
3. With a post combustion chamber two combustion function and high temperature filtration technology, the test gas emission standards.
4. Powerful software, which can display temperature, sample weight, weight loss, correction coefficient, asphalt content and bitumen aggregate ratio at same time.
5. Temperature adopts fuzzy control scheme, the temperature control precision is high, and the stability is good.
6. Safe and environmentally friendly, without using organic solvent that is harmful to the human health and the environment, is a kind of green environmental protection product.
7. Using special structure, to ensure that the key measurement parts at high temperature does not produce state error.
8. 7 inches industrial-grade touch screen, the screen showed large amount of information, simple and easy to operate, reliable into the sample, close the door and press the start button, the instrument automatically complete the test.
9. Real-time display test data, and has the self diagnosis, fault code prompt function, can inquire and pr℃ess historical data.
10. After the test, there is a voice prompt function, and can automatically save, print the experimental results.
11. Flexible data pr℃essing mode, can make the following choice (software, or software and hardware): connect with computer; Connected to the common printer; Download data with U disk; with the function of connecting to the Internet.
II. Main technical specifications:
| 1 | Maximum sample weight | 4000g, recommended sample weight: (1000 ~ 2000) g |
| 2 | Maximum temperature of the combustion chamber | 800 ℃, accuracy: ± 5 ℃, standard operating temperature: 538 ℃. |
| 3 | The highest temperature of the post combustion chamber | up to 900 ℃ |
| 4 | Combustion and filtration | With a post combustion chamber two combustion function and high temperature filtration technology, the test gas emission standards. |
| 5 | The balance accuracy | 0.1g, the balance scale: 10kg (by the United States imported special balance) |
| 6 | Asphalt content test accuracy | 0.10% |
| 7 | The test time is fast | 1200g test sample only about 30 minutes |
| 8 | The chamber dimensions | 350 mm × 440mm × 330mm (length × width × height) |
| 9 | Dimensions | 700 mm × 800mm × 1550mm (length × width × height) |
| 10 | Power supply | AC380V ± 10V, 50Hz, current less than 40A (three-phase four-wire system, with zero line). 220V ± 10V, current less than 5A |
III.Package List
| No. | Name | Unit | Qty | Memo |
| 1 | Asphalt Content Test Machine | Set | 1 | |
| 2 | Electronic balance | Set | 1 | |
| 3 | Loading box | Set | 1 | |
| 4 | Power line | Piece | 2 | |
| 5 | Reclaimed handle | Piece | 1 | |
| 6 | Corrugated pipe | Piece | 1 | |
| 7 | Wire brush | Piece | 1 | |
| 8 | Operation manual | Piece | 1 |
