| Place of Origin: | CHINA |
|---|---|
| Brand Name: | AI |
| Certification: | ISO |
| Model Number: | AIC-0655 |
| Minimum Order Quantity: | 1 SET Storage Stability Tester |
| Price: | negotiable |
| Packaging Details: | Storage Stability Tester is packed in Plywood case |
| Delivery Time: | 10 days |
| Payment Terms: | Western Union, T/T, L/C |
| Supply Ability: | 20 sets per month |
| Chamber Size: | 210 Mm × 110 Mm × 370 Mm | Power Supply: | 220 V, 50HZ |
|---|---|---|---|
| Warranty: | 1 Year | Keyword: | Storage Stability Tester |
| Filter Screen: | Sieve To 0.18μm | Sample Loading Entrance: | Φ32㎜ ± 0.1mm. |
| Glass Tube: | Height 310 Mm ± 10mm | Standard: | T 0655 |
| Highlight: | Storage Stability Tester,Emulsified Asphalt Testing Equipment,Asphalt Storage Stability Tester |
||

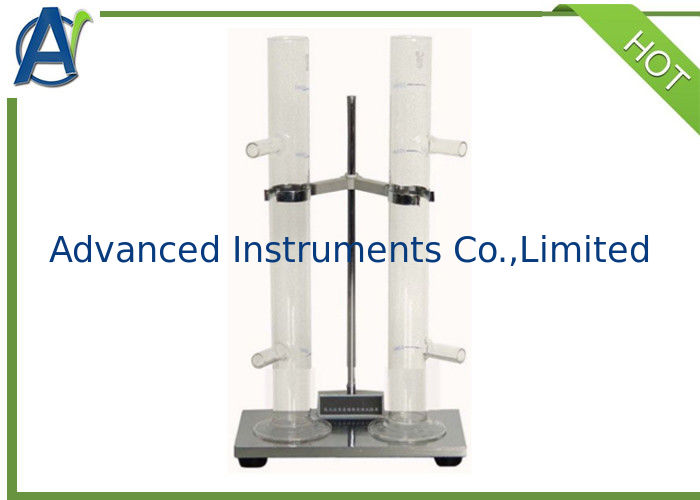

Introduction
The instrument is according to the ministry of communications of the People's Republic of China standard JTG E20-2011 Standard Test Methods for Bitumen and Bituminous Mixtures for Highway Engineering in T 0655-1993 "emulsified asphalt storage stability test" provisions of the design and manufacture of it, it is suitable for the determination of various types of emulsified asphalt storage stability
Main features
1. Base with 10 mm chrome-plated steel plate, stable and reliable;
2. The glass tube holder structure is unique and can be adjusted up and down;
3. Overall design structure is reasonable, elegant appearance.
Specifications
1. Glass tube: The effective height 310 mm ± 10mm;
Mark line 250ml;
Sample loading entrance Φ32㎜ ± 0.1mm.
2. Dimension: 210 mm × 110 mm × 370 mm (length × width × height).
Optional accessories
1. Balance: Weighing 1000g, the sense of it not more than 0.1g;
2. Filter screen: Sieve to 0.18μm.
Accessories List
| No. | Name | Unit | Qty |
| 1 | Metal test tube stand | Piece | 1 |
| 2 | Metal test tube holder | Piece | 1 |
| 3 | Professional test tube | Piece | 2 |
| 4 | Test tube plug(Ø32) | Piece | 2 |
| 5 | Branch tube plug(Ø11) | Piece | 4 |
| 6 | Operation manual | Piece | 1 |
| 7 | Quality certificate | Piece | 1 |
| 8 | Repair guarantee | Piece | 1 |
