Automatic Asphalt Testing Equipment for Wheel Track Rutting Fatigue Test

Basic Information

Place of Origin:	China
Brand Name:	AI
Certification:	ISO
Model Number:	WTT-I

Minimum Order Quantity:	1 PC Wheel Track Rutting Testing Equipment
Price:	Negotiable
Packaging Details:	Wheel Track Rutting Testing Equipment packed in Plywood case
Delivery Time:	10 days
Payment Terms:	T/T, Western Union
Supply Ability:	1000 PC/Month

Get Best Price Contact Now

Sample Size:	300mm×300mm×(30～200)mm	Test Wheel Movement:	230mm±10mm
Grinding Rate:	(42±1)times/min	Displacement Measuring Range:	0mm～30mm
Wheel Track Test Time:	60 Minutes～240 Minutes	Temperature Controle:	Ambient Temp.～80℃
Purpose:	Determine The Wheel Track Resistance Property Of Bituminous Mixtures	Warranty:	1 Year
Highlight:	Rutting Fatigue Test , Wheel Track Testing Equipment , Wheel Track Rutting Test

Automatic Wheel Track Tester

Summary

This wheel track tester is designed and made as per industrial standard T0719-2011 Wheel Track Test for Bituminous Materials in JTG E20-2011 Standard Test Methods of Bitumen and Bituminous Mixtures for Highway Engineering. It is used to determine the wheel track resistance property of bituminous mixtures under high temperature condition(Immersed in water or not immersed in water).

I. Main technical features

1. This rutting tester adopts PWM temperature control. It can control :

⑴ Water temperature in chamber during water immersed wheel track test

⑵ Ambient temperature of constant temperature chamber at a time.

2. The constant temperature chamber adopts outside circulatory heating mode. The uniformity and stability is good. No overshoots.

3. This wheel track test machine shows time- displacement curves and time- temperature curves during a test.

4. It equips an absolute temperature sensor. No temperature drift in a long time test.

5. The mechanical structure adopts wheel movement mode.

6. One wheel tester. It can determine both water immersion test or no water immersion test.

II. Main technical specifications

1	Sample size	300mm×300mm×(30～200)mm (Grinding wheel molding) 300mm×15mm×50mm(Cutting on site)
2	Working mode	Rod drive
3	Rubber hardness	78±2 at 60℃,international standard
4	Test wheel movement	230mm±10mm
5	Grinding rate	(42±1)times/min (21 times of returns/min)
6	Loading device	(0.7MPa～1.3 MPa)±0.05Mpa when CPRESS is at 60℃.
7	Displacement measuring range	0mm～30mm
8	Displacement measuring accuracy	＜0.01mm
9	Wheel track test time	60 minutes～240 minutes. 60 minutes is standard.
10	Temperature controle for constant temperature chamber	Ambient temp.～80℃,precision ±0.3℃
11	Deformation measurement	Precision 0.3%,minimum division 0.005mm
12	Test temperature	45℃～85℃, precision 0.5℃
13	Working environment	Temperature 0℃～50℃,RH ≤90%
14	Drive motor power	0.75kW,1450r/min
15	Power supply	3 phases and 4 lines. Power 3.5KW,The yellow line is working zero line
16	Dimension	1510mm×740mm×146mm
17	Net weight	About 0.5 T

III.Package list

No.	Name	Unit	Qty	Memo
1	Automatic Wheel-Track Rutting Tester	Set	1
2	Computer	Set	1
3	Printer	Set	1
4	380V power line	Piece	1
5	Test mode 50mm	Piece	3
6	Operation manual	Piece	1
7	Air compressor	Set	1

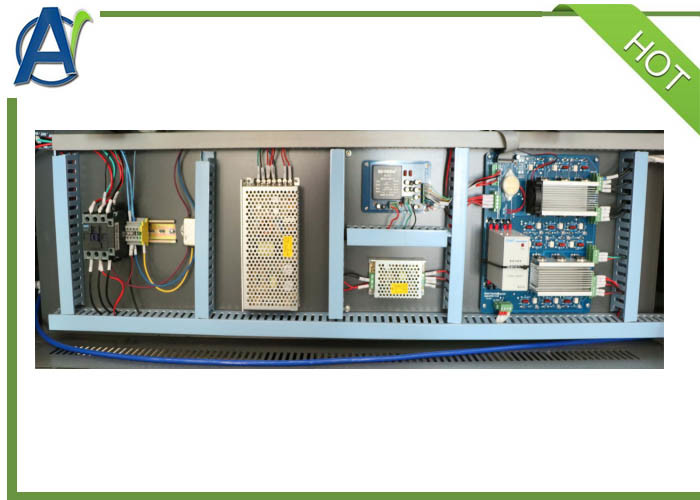

Automatic Asphalt Testing Equipment for Wheel Track Rutting Fatigue Test 0
