Place of Origin: | China |
---|---|
Brand Name: | AI |
Certification: | ISO |
Model Number: | SVT |
Minimum Order Quantity: | 1 Set ASTM D88 Saybolt Viscosity Test Apparatus |
Price: | Negotiable |
Packaging Details: | ASTM D88 Saybolt Viscosity Test Apparatus packed in Plywood case |
Delivery Time: | 15 days |
Payment Terms: | D/P, T/T, L/C, Western Union |
Supply Ability: | 1000 Sets per Month |
Test Standard: | ASTM D88 | Test Method: | Saybolt Viscometer Method |
---|---|---|---|
Power Supply: | AC(220±10%)V 50Hz | Working Position: | 2 Units |
Receiving Flask: | (60±0.0)5ml | Heating Power Of Bath: | 1000W |
Working Temperature Of Bath: | Room Temp.~240℃ | Warranty: | 1 Year |
Highlight: | Saybolt Viscosity Apparatus,Saybolt Viscosity for Asphalt,ASTM D88 Saybolt Viscosity Test |

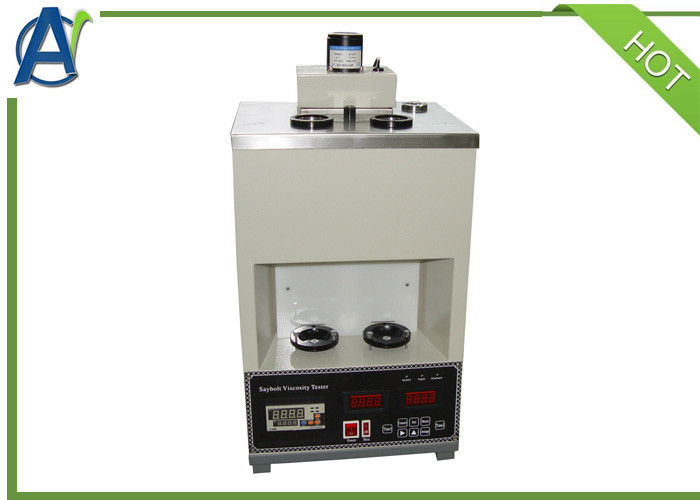

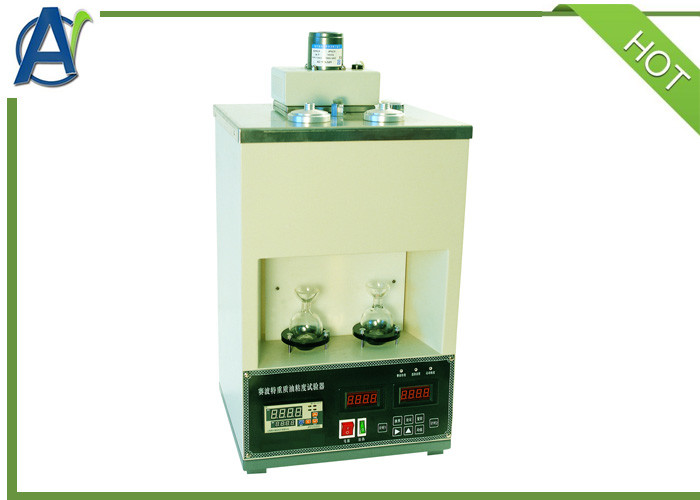

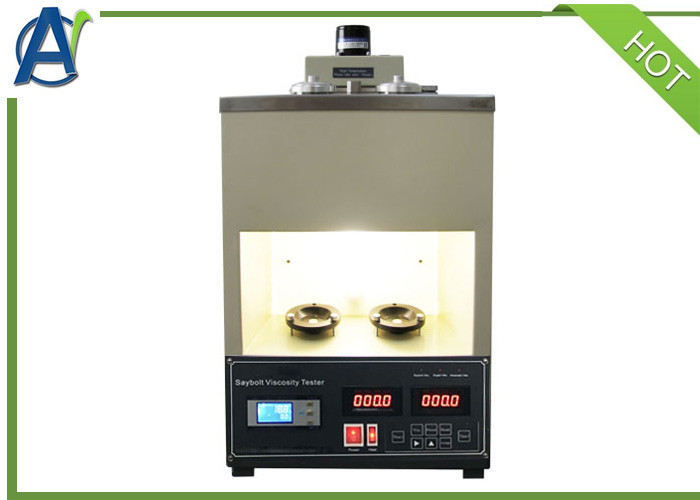

I.Introduction:
The saybolt viscosity test apparatus is designed and made as per T 0623 Bitumen Saybolt Viscosity Test (Saybolt Viscometer Method) in the JTG E20-2011 Standard Test Methods for Bitumen and Bituminous Mixtures for Highway Engineering.
It is suitable to determine the Saybolt viscosity of bitumen and bituminous mixtures under a constant temperature as per T0623.
II.Features:
1. This saybolt viscosity test apparatus is composed of bath, temperature controller, parameters display and calculation (calibration coefficient, time, viscosity and so on).
2. This bitumen saybolt viscosity apparatus adopts micro computer technology. It equips double lines to detect. It can determine two samples at the same time. It can display the parameters and calculate the arithmetic mean value automatically.
3. This saybolt viscosity apparatus can convert the Saybolt viscosity to Engler viscosity and kinematic viscosity automatically. Operator can get three viscosity data from one test. The work efficiency is high.
III.Specifications:
1 | Power supply | AC(220±10%)V 50Hz |
2 | Instrument structure | Desktop type |
3 | Working mode | Double lines,parallel test |
4 | Receiving flask | (60±0.0)5ml |
5 | Heating power of bath | 1000W |
6 | Working temperature of bath | Room temp.~240℃ |
7 | Temperature control accuracy | ±0.1℃ |
9 | Timing range | 0.0s~999.9s |
9 | Timing accuracy | ±0.1s |
10 | Ambient temperature | ≤35℃ |
11 | Relative humidity | ≤85% |
12 | Overall dimension | 360mm×360mm×790mm |
IV.Accessories List
No. | Item | Unit | Qty |
1 | Sample receiving flask | Piece | 2 |
2 | Stopper handle | Piece | 2 |
3 | Stopper | Piece | 10 |
4 | Mercury thermometer 0~50 ℃, scale division is 0.1 ℃ | Piece | 1 |
5 | Mercury thermometer 0~300 ℃, scale division is 1 ℃ | Piece | 1 |
6 | Stopper for glass thermometer (silicon gel stopper 8 #) | Piece | 1 |
7 | Stopping ring for thermometer (1#) | Piece | 4 |
