Advanced Instruments Co.,Limited
To Be Advanced in Quality and Service!
| Place of Origin: | China |
|---|---|
| Brand Name: | AI |
| Certification: | ISO |
| Model Number: | KFT-C1 |
| Minimum Order Quantity: | 1 Set Transformer Oil Water Content Tester |
| Price: | Negotiable |
| Packaging Details: | Transformer Oil Water Content Tester packed in Carton |
| Delivery Time: | 10 days |
| Payment Terms: | D/P, T/T, L/C, Western Union |
| Supply Ability: | 1000 Sets per Month |
| Test Standard: | ASTM D6304,ASTM D1744 | Test Method: | Coulometric Karl Fischer Titration |
|---|---|---|---|
| Power Supply: | AC220V±10% 50HZ | Measuring Range: | 1ppm-100% |
| Dimension: | 320*240*180mm | Weight: | 6KG |
| Display: | LCD | Warranty: | 1 Year |
| Highlight: | Transformer Oil Water Content Tester,Coulometric Karl Fischer Titration,Karl Fischer Titration |
||
Introduction:
This transformer oil water content tester adopts Karl Fischer Coulometric titration method. It owns advantages of high testing accuracy, good repeatability, low testing cost etc. It is used to accurately test trace water content in various liquid, solid and gases. And it is widely applied to petroleum, chemical engineering, pharmacy, electricity, scientific research, education department and so on.
Features:
1. Intelligent Determination is guaranteed by moisture content ppm tester.
2. Powerful new-generation processor; dual-CPU design.
3. Dual power channels separate electrolytic electrode and measuring electrode; automatically removing all kinds of interference; greatly improving the accuracy of test results.
4. Measuring electrode data directly A / D sample converting; data true value avoids errors caused by analog circuit; results more accurate.
5. Coulometric Karl Fisher Titration Set is operated easily.
6. Touch-screen operation; only pressing once then the test will be done automatically and the reported values will automatically display.
7. Background Compensation.
8. Large current background compensation. Standby time can be shortened to be less than 10 minutes.
9. Rotating Speed Control
10. Software adjusting stirring speed; selection between 0 to 36.
11. End Point Indication is available for moisture content tester.
12. Character tips and buzzer.
13. Perfect Calculating Function.
14. Automatically display, calculate, print ug / ppm / percentages / mg/L / sample name / test date
15. Automatic Date Data Storage.
16. Year, month, day, hour, minute, second; automatic storage when power off .
Specifications:
| 1 | Display | LCD |
| 2 | Measuring range | 3ug to 200 mg water; Water content range: 1ppm-100% |
| 3 | Resolution | 0.01 ug water |
| 4 | Accuracy | 10μg-1mg water, ± 0.2%; >1mg water, < ± 0.3% (excluding injection error) |
| 5 | Electrolysis speed | max 2.4 mg/min |
| 6 | Electrolytic current | 0~430 mA |
| 7 | Ambient temperature | 5 ~ 35 ℃ |
| 8 | Humidity | ≤85% |
| 9 | Power supply | AC 220V ± 10% |
| 10 | Dimension | 320*240*180mm |
| 11 | Weight | about 6kg |

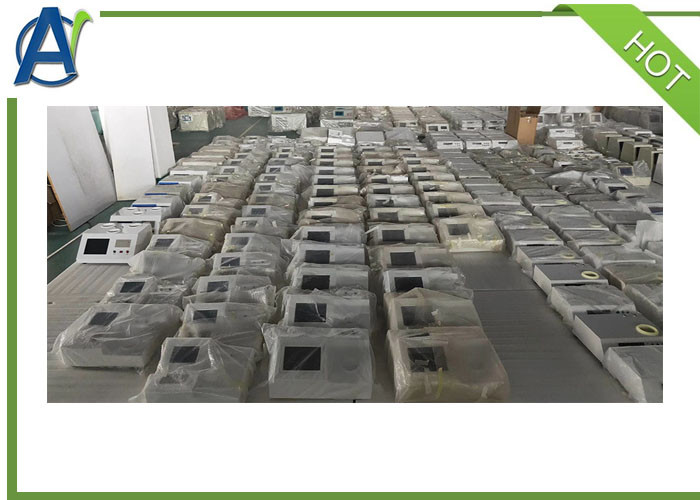

KFT-C1 Transformer Oil Water Content Test Set in Stock
