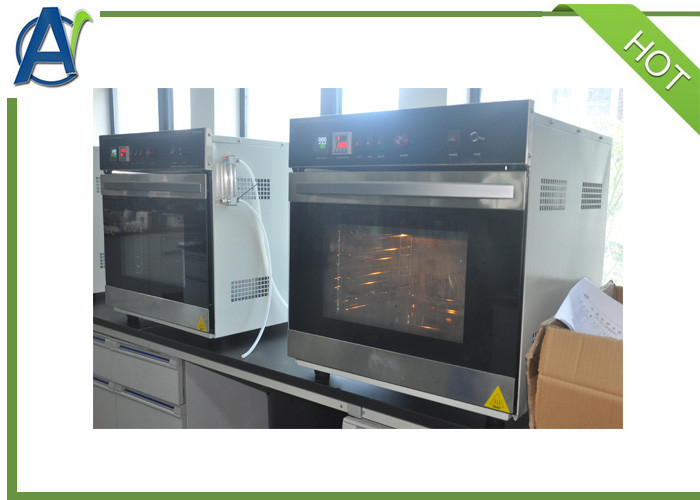

IEC 62535 Corrosive Sulfur Tester For Electrical Insulating Oils

Basic Information

Place of Origin:	China
Brand Name:	AI
Certification:	ISO
Model Number:	CST-II

Minimum Order Quantity:	1 set Corrosive Sulfur Tester
Price:	Negotiable
Packaging Details:	Corrosive Sulfur Tester is packed in Hardboard
Delivery Time:	30 days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	50 sets per month

Get Best Price Contact Now

Test Standards:	ASTM D1275,IEC 62535	Temperature Range:	Ambient~150℃
Temperature Controller:	Imported PID	Timing:	Digital Timer
Power Supply:	220V 50HZ	Weight:	31KG
Dimension:	600×600×650mm³	Total Power:	1200W
Standard Copper Strip:	Purity 99.9%,thickness 0.125~0.250mm	Test Object:	Electrical Insulating Oils
Highlight:	Corrosive Sulfur Transformer Oil Test Set , IEC 62535 Corrosive Sulfur Analyzer , Digital Timer Corrosive Sulfur Analyzer

Summary

1. The Corrosive Sulfur Tester has an air guide cooling system, when the surface temperature of the instrument is too high, it will automatically start to dissipate heat;
2. High-end enamel liner, corrosion-resistant and easy to clean;
3. The Corrosive Sulfur Tester is equipped with fan circulation and lighting device in the box;
4. The Corrosive Sulfur Tester uses imported Omron PID thermostat, digital display temperature, accuracy 0.1ºC
5. Over-temperature safety protection;
6. Innovative V-shaped door opening method, fully transparent high temperature resistant glass door;
7. The Corrosive Sulfur Tester adopts digital display timer, accuracy deviation per hour is not more than 2min, record test time, with time alarm.

Main specifications

1	Reference standards	GB/T25961, ASTM D1275,IEC 62535
2	Working temperature	Ambient~150ºC
3	Temperature controlling mode	Imported PID temperature controller
4	Timing method	Digital timer
5	Standard copper strip	Purity 99.9%,thickness 0.125~0.250mm
6	Total power	1200W
7	Weight	31KG
8	Dimension	600×600×650mm³
9	Power supply	AC 220V ,50Hz
