| Place of Origin: | China |
|---|---|
| Brand Name: | AI |
| Certification: | ISO |
| Model Number: | AIC-943 |
| Minimum Order Quantity: | 1 set Inhibited Mineral Oils Oxidation Characteristics Tester |
| Price: | Negotiable |
| Packaging Details: | Inhibited Mineral Oils Oxidation Characteristics Tester packed in Hardboard |
| Delivery Time: | 30 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 200 sets per month |
| Test Standards: | ASTM D943,GB/T12581 | Temperature Range: | Ambient~120℃±0.1℃ |
|---|---|---|---|
| Flow Range: | 0～200ML/H | Dimensions: | 630*710*930mm3 |
| Power Supply: | 220V 50HZ | Weight: | 50KG |
| Power Consumption: | 2400W | Keyword: | Oxidation Characteristics Tester |
| Heating Method: | Electrical Heating Rod | Timing Method: | Digital Timer |
| High Light: | Oxidation Characteristics Tester,Inhibited Mineral Oils Oxidation Tester,ASTM D943 |
||
Summary
The Oxidation Characteristics Tester is applicable to Unused mineral insulating oil with inhibitor. It can also be used to understand the tendency of Unused mineral insulating oil to form acid and sediment before and after the induction period.
The use method is: the sample is kept at a certain temperature in the presence of copper catalyst coil, and at the same time, a constant oxygen flow is used to measure the time required for the volatile acid produced by the oxidation of the sample to increase to equivalent to the neutralization value of 0.28mgkoh/g, indicating the oxidation stability of the sample by the induction period.
◆ The Oxidation Characteristics Tester adopts Metal bath heating,safe and environment-friendly.
◆ Mic-computer temperature controller,digital display,accuracy ±0.1℃, PT100 sensor.

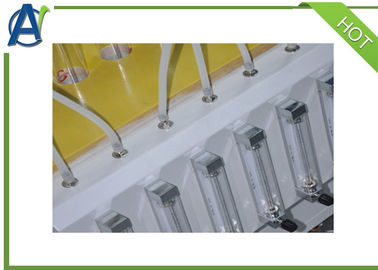

◆ Precise flow meter controls air flow.
◆ The Oxidation Characteristics Tester can do 6 tests simultaneously,every 3 samples for two groups.
◆ Working time is displayed digitally
◆ The Oxidation Characteristics Tester provides Glass tube as per standards
◆ Big power solid relay controlls temperature rising
◆ The Oxidation Characteristics Tester has function of Over-temperature alarming.
Technical Specifications
| Model | AIC-943 Inhibited Mineral Oils Oxidation Characteristics Tester |
| Applicable standards | GB/T12581 ASTM D943 |
| Heating method |
electrical heating rod |
| Temperature controlling range | ambient~120℃±0.1℃ |
| Temperature controlling method |
imported digital PID temperature controller |
| Working units |
6 |
| Timing method | digital timer |
| Flow range | 0～200ML/H |
| Total power consumption | 2400W |
| Dimensions | 630*710*930mm |
| Weight | 50KG |
| Power supply | AC220V 50HZ |
