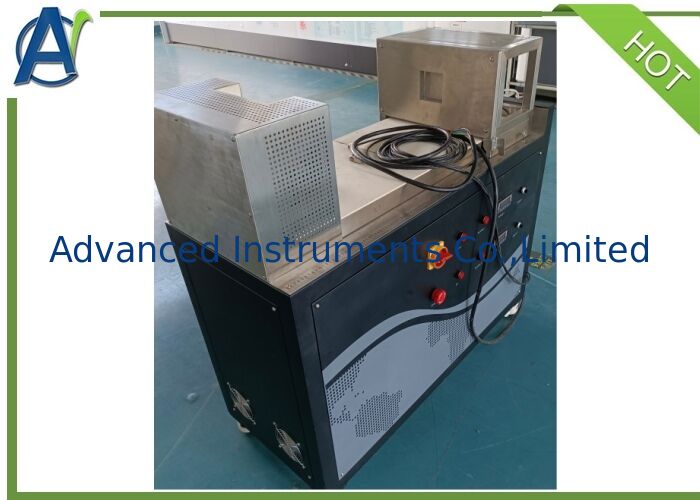

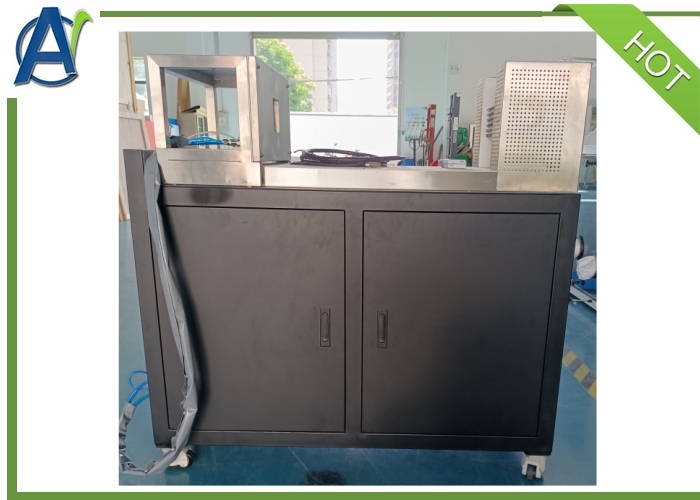

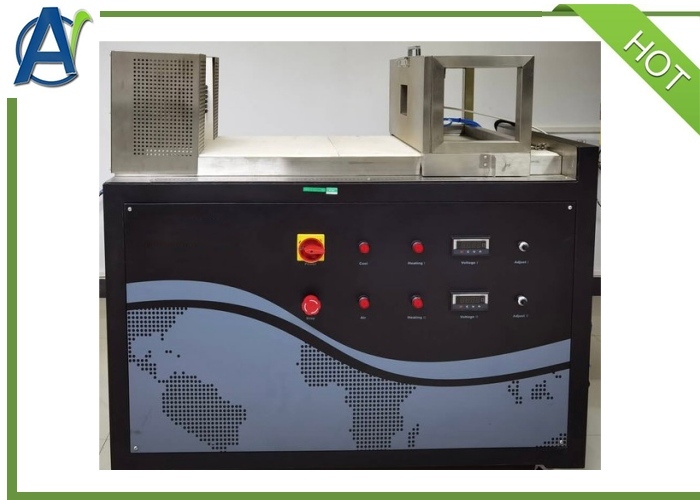

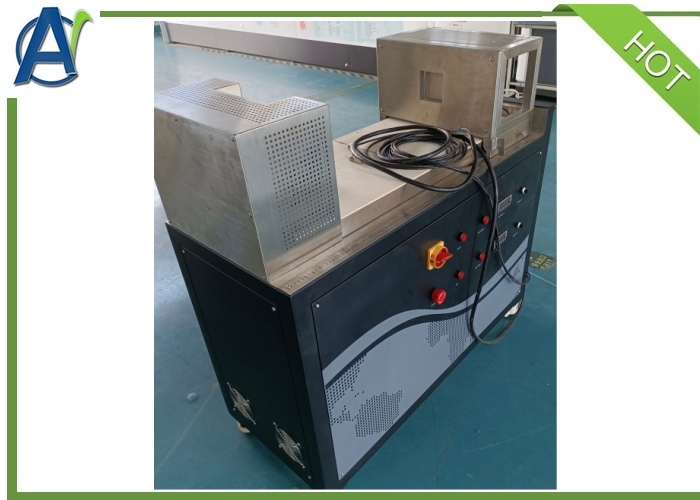

ISO 6942 EN 366 Radiant Protective Performance Tester for Protective Clothing Radiant Heat Test

ISO 6942 EN 366 Radiant Protective Performance Tester for Protective Clothing Radiant Heat Test
ISO 6942 EN 366 Radiant Protective Performance Tester for Protective Clothing Radiant Heat Test ISO 6942 EN 366 Radiant Protective Performance Tester for Protective Clothing Radiant Heat Test ISO 6942 EN 366 Radiant Protective Performance Tester for Protective Clothing Radiant Heat Test ISO 6942 EN 366 Radiant Protective Performance Tester for Protective Clothing Radiant Heat Test ISO 6942 EN 366 Radiant Protective Performance Tester for Protective Clothing Radiant Heat Test ISO 6942 EN 366 Radiant Protective Performance Tester for Protective Clothing Radiant Heat Test ISO 6942 EN 366 Radiant Protective Performance Tester for Protective Clothing Radiant Heat Test ISO 6942 EN 366 Radiant Protective Performance Tester for Protective Clothing Radiant Heat Test ISO 6942 EN 366 Radiant Protective Performance Tester for Protective Clothing Radiant Heat Test ISO 6942 EN 366 Radiant Protective Performance Tester for Protective Clothing Radiant Heat Test ISO 6942 EN 366 Radiant Protective Performance Tester for Protective Clothing Radiant Heat Test ISO 6942 EN 366 Radiant Protective Performance Tester for Protective Clothing Radiant Heat Test
Basic Information
Place of Origin: China
Brand Name: AI
Certification: ISO9001
Model Number: RPP
Minimum Order Quantity: 1 Set
Price: USD$10000~20000
Packaging Details: Plywood case
Delivery Time: 60days
Payment Terms: T/T,Western Union,L/C
Supply Ability: 20sets per month
Get Best Price Contact Now
OEM Service: Available Language: English
Test Standard: ISO 6942 And En 366 Test Objects: Protective Clothing Testing
Size: 1300mm(L) X 500mm(W) X 1200mm(H) Weight: 160kg
Gas Supplies: Compressed Air Quantity Of Heating Bar: 6PCS
Heating Capability: Max.1200℃ Radiation Heat Flux: 10~80 Kw /M2
Power Consumption: 15000w Control: PC
Operation: Automatic
Highlight:

ISO 6942 radiant heat tester

,

EN 366 protective clothing tester

,

radiant protective performance test equipment

I.ISO 6942 EN 366 Thermal Radiation Resistance Tester for Protective Materials
The thermal radiation resistance tester is designed to evaluate the thermal radiation protection performance of protective materials, complying with standards such as ISO 6942 and EN 366. The instrument supports two test methods: Method A involves a visual assessment of changes in the material's appearance following exposure to thermal radiation; Method B measures the Radiant Heat Transfer Index (RHTI)-based on the time required for the temperature on the back of the specimen to rise by 12°C or 24°C-to determine the material's thermal protection performance.

Applicable Industries:
Safety and protection

Test Standards:
EN (European Standards): EN ISO 6942:2002, EN 1363, EN 366
ISO (International Organization for Standardization): ISO 6942:2022
Other Standards: AQ 6103


ISO 6942 EN 366 Radiant Protective Performance Tester for Protective Clothing Radiant Heat Test
II. Main Features

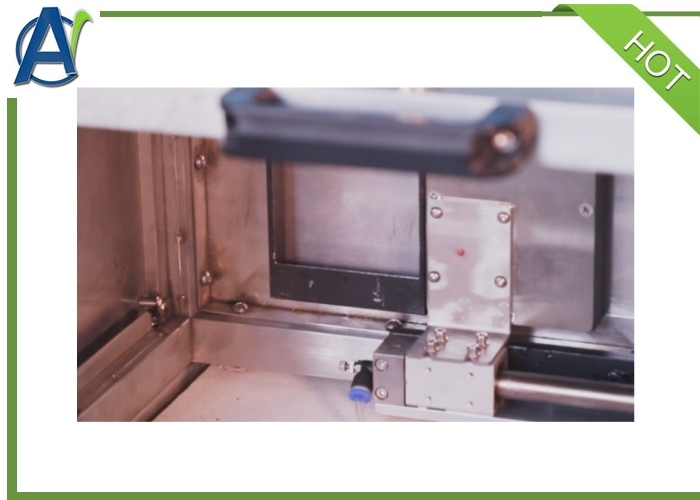

1. The test apparatus consists of a radiation unit, a specimen holder, and a data acquisition and software system;
2. The thermal radiation unit comprises six Glowbar heating elements, capable of operating at temperatures of at least 1100°C;
3. The specimen clamping mechanism utilizes a circulating water cooling system for protection;
4. A copper disc calorimeter made of oxygen-free superconducting copper is used to measure thermal radiation flux;
5. The specimen holder is horizontally adjustable, allowing for thermal radiation flux measurements at various positions;
6. A weight mechanism is included to apply a standard 2N force to the specimen;
7. The data acquisition system records parameters such as thermal radiation flux, temperature, and time;
8. Equipped with a computer and printer for data output and test report printing.


III.Specification

Introduction of main machined parts
No.
Name
Craft
1
Heat auxiliary facilities
Stainless steel and 2mm SS sheet machines,seamless welding
2
Sample holder
Stainless steel machines as per standard
3
Other auxiliary facilities
Aluminum or iron baking finish
4
Auxiliary fixtures
Aluminum processing or stainless steeel

Main Components of  Heat Radiation Resistant Test Device
No.
Name
Remark
1
Operation method
Automatic controlled by computer
2
Software
Designed by AIC
3
Acquisition card
Taiwan ADVANTECH
4
Heat flow meter
Imported
5
Heating bar
Customized
FAQ

  1. What's the delivery time?

    About 60days.

  2. What's your payment terms?

    30% paid by T/T in advance,70% paid by by T/T before shipping.

  3. What's your guarantee terms?

    The warranty of all products is 1 year.During this period,we are responsible for all faults caused by us.And we can supply life-long technical support.

  4. Can you supply training?

    We can supply training in our factory and online training for free.If onsite installation and training are required,please pay for tickets,accommodation and salary USD280/Day for every person.
