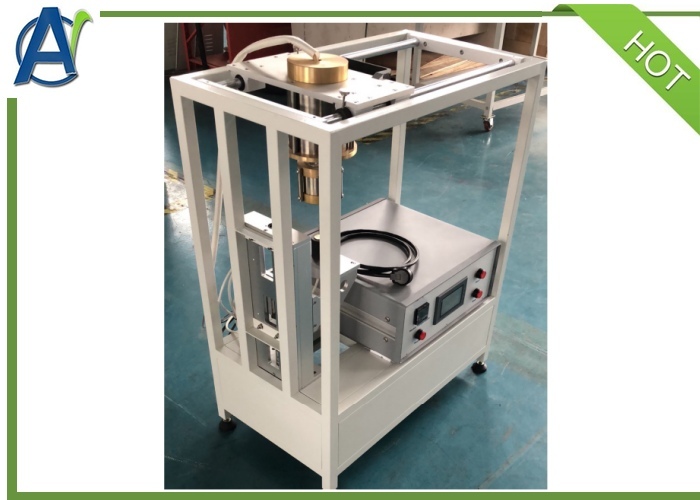

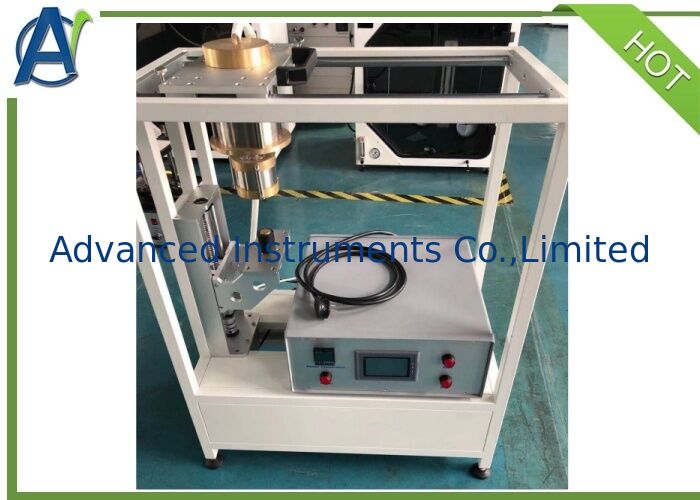

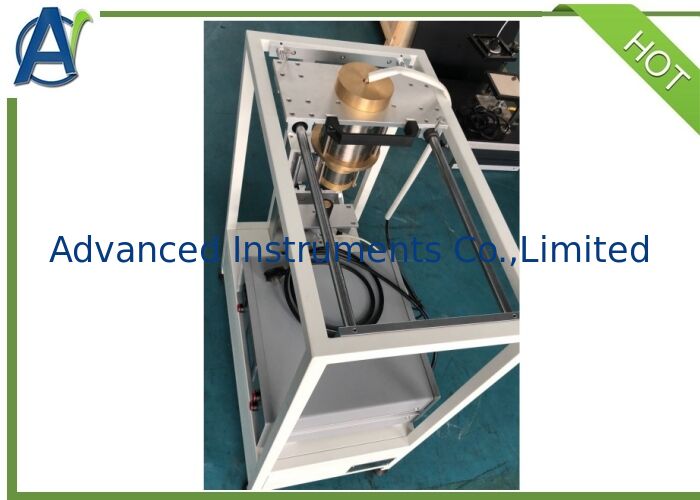

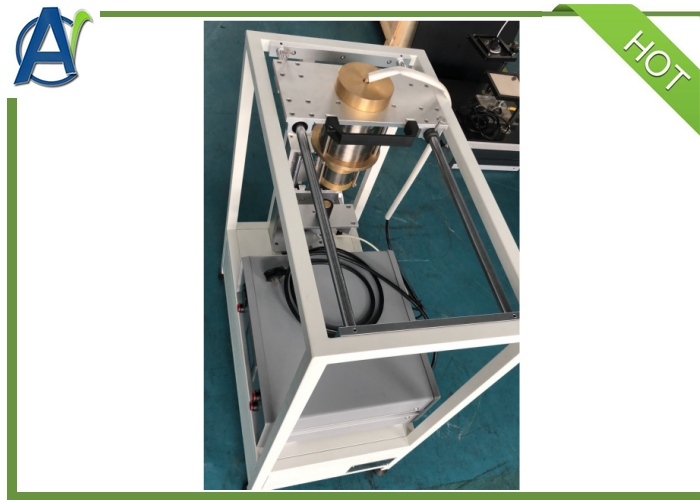

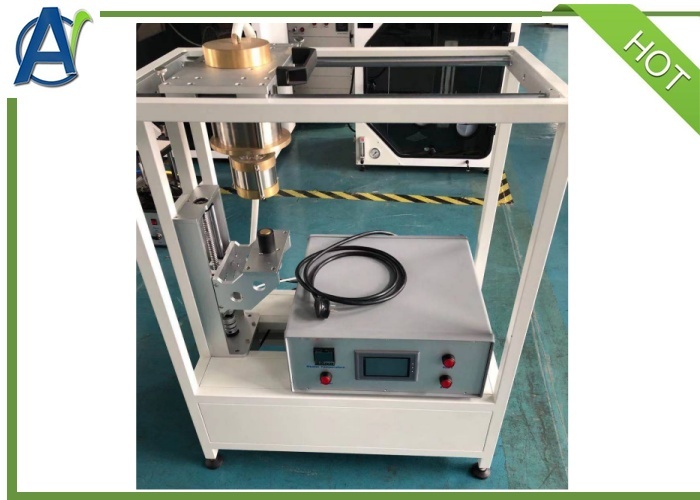

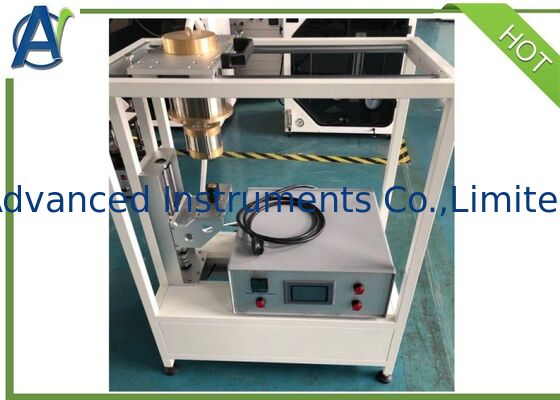

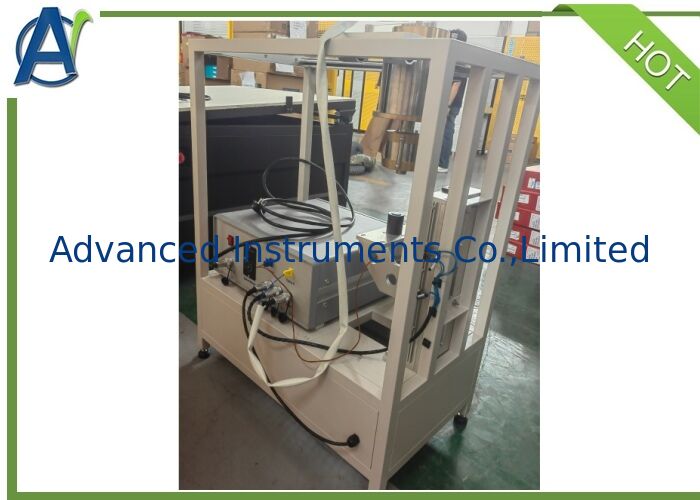

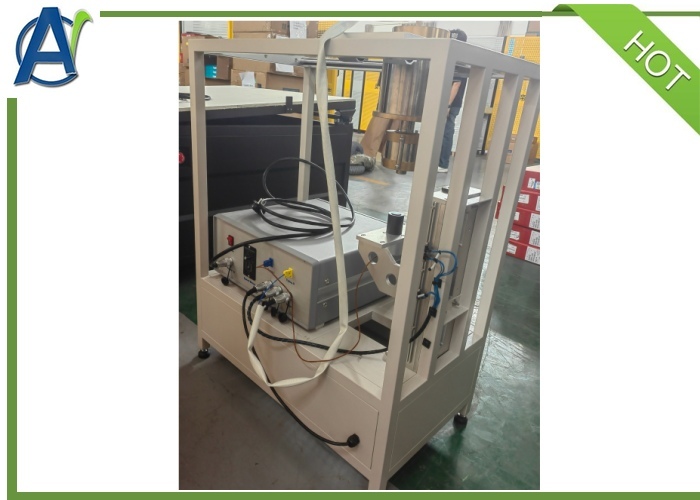

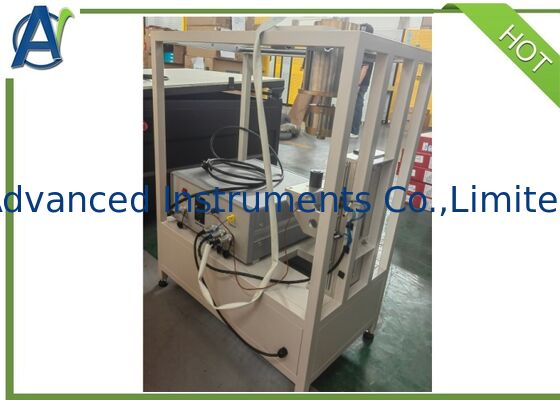

Contact Heat Resistance Test Apparatus EN 702 and ISO 12127-1 for Protective Clothing Fabric

Contact Heat Resistance Test Apparatus EN 702 and ISO 12127-1 for Protective Clothing Fabric
Contact Heat Resistance Test Apparatus EN 702 and ISO 12127-1 for Protective Clothing Fabric Contact Heat Resistance Test Apparatus EN 702 and ISO 12127-1 for Protective Clothing Fabric Contact Heat Resistance Test Apparatus EN 702 and ISO 12127-1 for Protective Clothing Fabric Contact Heat Resistance Test Apparatus EN 702 and ISO 12127-1 for Protective Clothing Fabric Contact Heat Resistance Test Apparatus EN 702 and ISO 12127-1 for Protective Clothing Fabric Contact Heat Resistance Test Apparatus EN 702 and ISO 12127-1 for Protective Clothing Fabric Contact Heat Resistance Test Apparatus EN 702 and ISO 12127-1 for Protective Clothing Fabric Contact Heat Resistance Test Apparatus EN 702 and ISO 12127-1 for Protective Clothing Fabric Contact Heat Resistance Test Apparatus EN 702 and ISO 12127-1 for Protective Clothing Fabric Contact Heat Resistance Test Apparatus EN 702 and ISO 12127-1 for Protective Clothing Fabric Contact Heat Resistance Test Apparatus EN 702 and ISO 12127-1 for Protective Clothing Fabric Contact Heat Resistance Test Apparatus EN 702 and ISO 12127-1 for Protective Clothing Fabric
Basic Information
Place of Origin: China
Brand Name: AI
Certification: ISO9001
Model Number: CHT-M
Minimum Order Quantity: 1 Set
Price: USD$5000~10000
Packaging Details: Plywood case
Delivery Time: 60days
Payment Terms: T/T,Western Union,L/C
Supply Ability: 20sets per month
Get Best Price Contact Now
Language: English OEM Service: Available
Test Standard: ISO 12127,En 702 Size: 450mm*800mm*1100mm
Net Weight: 70kg Heating Temperature Range: Ambient~500℃
Contact Speed: 5mm/S Contact Diameter: ¢25.2±0.05 Mm
Display: LCD Function: Determining The Contact Heat Transmission
Test Objects: Protective Clothing Or Its Materials
Highlight:

Contact heat resistance test apparatus

,

Protective clothing fabric tester

,

EN 702 ISO 12127-1 compliance tester

I.The Contact Heat Resistance Test Apparatus EN702&ISO 12127-1
The contact heat resistance test apparatus is developed in accordance with the EN 702 testing standard and also meets the requirements of the domestic standard AQ 6103-2007 (Protective gloves for welders - Contact heat resistance test). It displays parameters such as contact temperature, measurement start time, and threshold time. The testing principle involves placing the protective fabric in contact with a heated cylinder under a pressure of 49 N at a set temperature; the time required for the temperature to rise by 10°C from the initial temperature is defined as the "threshold time," which serves as a metric for evaluating the thermal protection performance of the fabric.
Applicable Industries:
Safety and protection

Test Standards:
EN (European Standard): EN 702:2015;
Other standards: AQ 6103;
ISO (International Organization for Standardization): ISO 12127-1:2007


Contact Heat Resistance Test Apparatus EN 702 and ISO 12127-1 for Protective Clothing Fabric
II. Main Features
1. Uses a high-temperature resistant metal heating element with a contact surface diameter of 25.2 ± 0.05 mm;
2. Heating element temperature range: Room temperature to 500°C; real-time display via the human-machine interface;
3. Calorimeter contact surface dimensions: 25 ± 0.05 mm (diameter) × 5 ± 0.02 mm (thickness); temperature measurement range up to at least 500°C;
4. Contact force: 49 N; contact speed: 5 mm/s; calorimeter controlled by a servo motor for automatic lifting and lowering; the entire test process is automatically executed via program control;
5. The heating element platform can move horizontally (left/right) to facilitate sample loading and ensure operator safety;
6. LCD display panel; PLC automatically records the initial test temperature, threshold time, temperature at the end of the threshold time, and real-time temperature.


III.Specification

Size:450mm*800mm*1100MM

Net Weight:70 kg

Electrical Requirements:
Power Supply: 220V, 50Hz, Max. 6A;
Environmental Requirements:
For indoor use;
Altitude: up to 2000m (6560ft);
Ambient Temperature: 13~30°C (56~86°F);
Relative Humidity: 25~75%;
Storage Temperature of Instrument: 10~43°C (50~110°F);
Storage Relative Humidity: 20~80%;
Installation Category: II;
Pollution Degree: 2;
Introduction of main machined parts
NO.
Name
Craft
1
Contact heat source and measuring parts
Stainless steel or brass machined as per standard
2
Control cabinet
Customized by reputable cabinet factory
3
Other auxiliary facilities
Thickness of iron plate is 1.5mm ,seamless welded cabinet with baking finish for cars
4
Heater
Made in China
5
Auxiliary fixtures
Aluminum processing

Main Components of Contact Heat Transmission Test Apparatus
NO.
Name
Remark
1
Operation method
Touch screen operation
2
Software
Designed by AIC
3
PLC
Delta DVP 16EC00T3
4
Touch Screen
Weinview SK-043AE
5
Motor
Speed adjustable 5GU-90W/reinforced single phase
6
Screw pulley
Taiwan HIWIN
7
Temperature controller
Omron
FAQ

  1. What's the delivery time?

    About 60days.

  2. What's your payment terms?

    30% paid by T/T in advance,70% paid by by T/T before shipping.

  3. What's your guarantee terms?

    The warranty of all products is 1 year.During this period,we are responsible for all faults caused by us.And we can supply life-long technical support.

  4. Can you supply training?

    We can supply training in our factory and online training for free.If onsite installation and training are required,please pay for tickets,accommodation and salary USD280/Day for every person.
