EN 367 & ISO 9151 Convective Heat Resistance Test Apparatus for Protective Clothing Fabric

Basic Information

Place of Origin:	China
Brand Name:	AI
Certification:	ISO9001
Model Number:	HTI

Minimum Order Quantity:	1 Set
Price:	USD$10,000~20,000
Packaging Details:	Plywood case
Delivery Time:	60days
Payment Terms:	T/T,Western Union,L/C
Supply Ability:	20sets per month

Get Best Price Contact Now

Language:	English	Test Object:	Safety Protection
Color:	White	OEM Service:	Available
Control:	Software Automatic Control	Heat Radiant Flux:	80kW/m²
Test Standard:	EN 367,ISO 9151,AQ 6103	Electrical Requirement:	220V, 1.5kW
Ambient Temperature:	25±5°C	Gas Requirement:	Propane And Compressed Air From Air Compressor
Highlight:	EN 367 heat resistance test apparatus , ISO 9151 protective clothing tester , convective heat resistance fabric equipment

I. ISO 9151 EN367 Heat Transfer Index Test Apparatus

A new term heat transfer index (HTI) has been introduced to avoid confusion with the thermal protective index (TPI) or other terms used in previous versions of this test. HTI calculated from the mean time in seconds to achieve a temperature rise of 24±0.2ºC when testing by this method using a copper disc and a starting temperature of 25±5ºC. The heat transfer index provides a method of grading materials which does not imply that the material tested will give any precise protective time under actual use conditions.

Applicable Industries: Safety Protection

Test Standards:

ISO 9151, EN 367, AQ 6103

II. Main Features

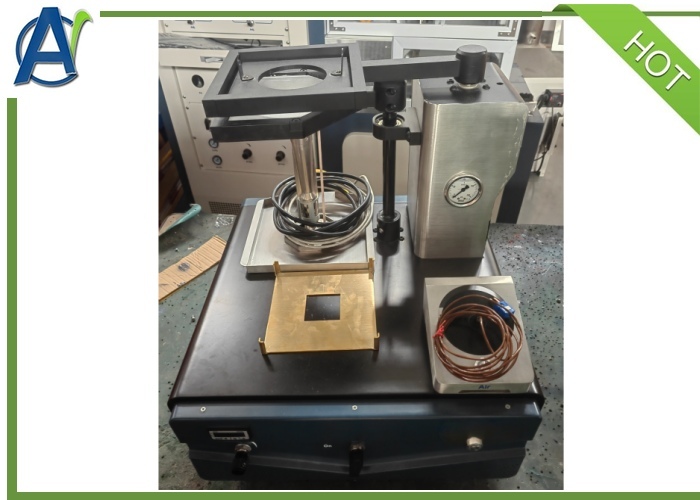

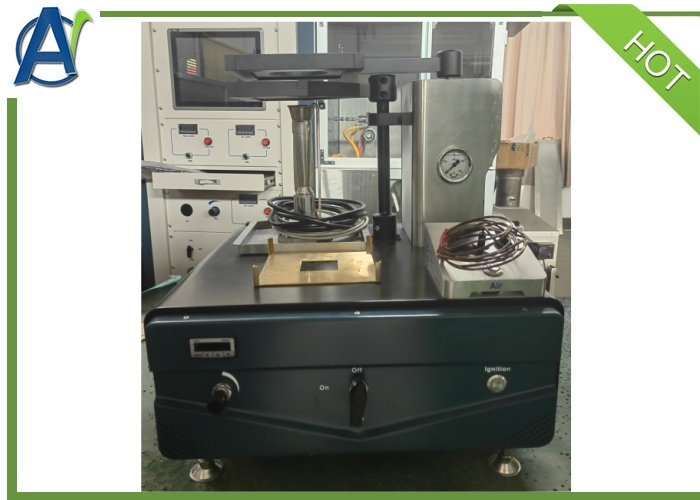

1. The convective heat resistance test apparatus consists of a burner, heat-resistant baffle, copper disc calorimeter and specimen holder.
2. The heat-resistant baffle and sample gripper are driven by pneumatic units and support automatic control via software.
3. The burner delivers a heat radiant flux of 80kW/m² to apply radiant flame impingement on the bottom of the specimen.
4. The copper disc calorimeter is mounted on top of the specimen to record the temperature rise on the back side of the sample in real time.
5. The air cooling system for the copper disc calorimeter can greatly reduce test duration.
6. The software automatically records the time required for the copper disc calorimeter to reach the temperature corresponding to 12s and 24s starting from 25°C.
7. The software automatically records three sets of test data and calculates the average value, which is the Heat Transfer Index (HTI).
8. The test software can automatically calibrate the heat flux density of the copper disc calorimeter.

III.Specification

Dimensions & Weight:460mm*600mm*420mm,58kg

Power supply: 220 V ±10%, 50 Hz, 5 A

Installation Requirements

Electrical requirement: 220V, 1.5kW
Ambient temperature: 25±5°C
Gas requirement: Propane and compressed air from air compressor

What's the delivery time?

About 60days.
What's your payment terms?

30% paid by T/T in advance,70% paid by by T/T before shipping.
What's your guarantee terms?

The warranty of all products is 1 year.During this period,we are responsible for all faults caused by us.And we can supply life-long technical support.
Can you supply training?

We can supply training in our factory and online training for free.If onsite installation and training are required,please pay for tickets,accommodation and salary USD280/Day for every person.
