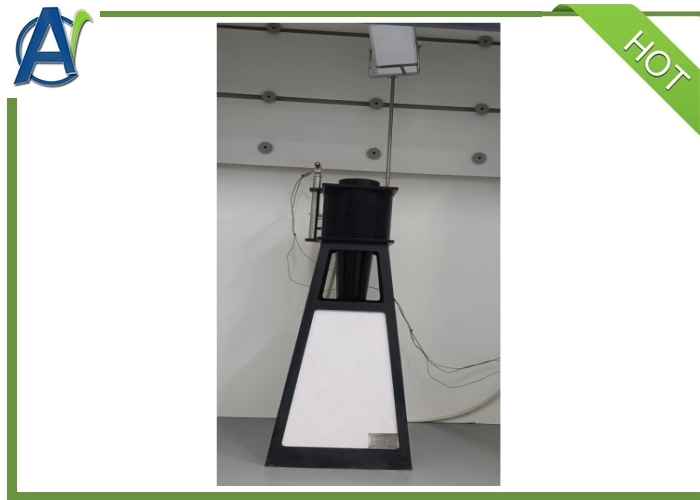

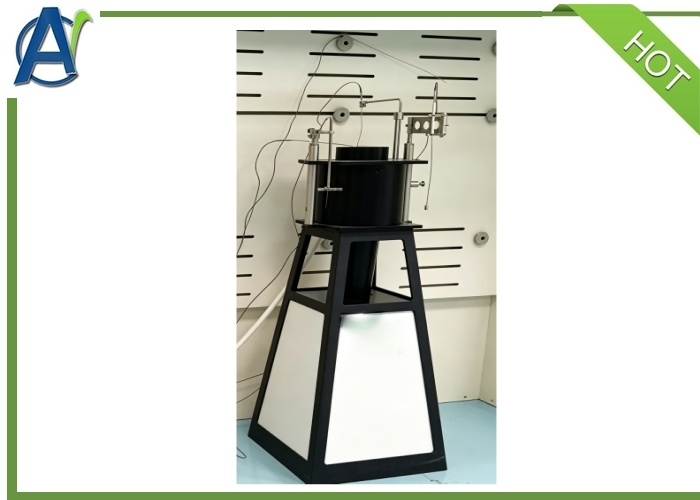

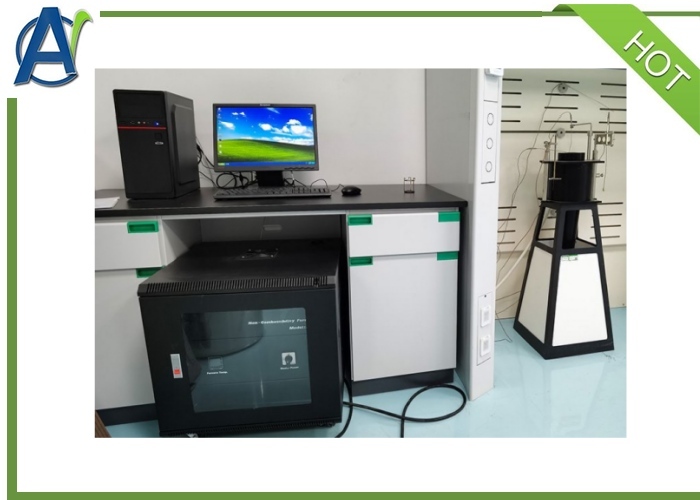

ISO 1182 Non-Combustibility Test Furnace for Building Materials Fire Reaction Tester

Basic Information

Place of Origin:	China
Brand Name:	AI
Certification:	ISO9001
Model Number:	NCF

Minimum Order Quantity:	1 Set
Price:	USD$5000~7000
Packaging Details:	Plywood case
Delivery Time:	60days
Payment Terms:	T/T,Western Union,L/C
Supply Ability:	20sets per month

Get Best Price Contact Now

Test Object:	Building Material	Power Supply:	AC220V±10%, 50Hz
Test Standard:	ISO 1182,EN 13501-1,IMO FTPC PART1,BS 476-4&11	Gas Supplies:	CP Grade Butane (purity 99%).
Weight:	157kg	Color:	White
Language:	English	OEM Service:	Available
Size Of Furnace:	400 Mm (W) X 400 Mm (D) X 1200 Mm (H)	Size Of Control Unit:	530 Mm (W) × 270 Mm (D) × 280 Mm (H)
Operation:	Controlled By PC	Temperature Control:	750℃±2℃
Temperature Measurement Range:	0-1000℃±5%
Highlight:	ISO 1182 non-combustibility test furnace , building materials fire reaction tester , fire testing equipment with warranty

I. Non-Combustibility Test Furnace for Building Materials ISO 1182

The Non-combustibility Test Instrument is used for determining the non-combustibility performance of the building and railway material under a 750ºC furnace.

During the Non-Combustibility Test, the test specimen (diameter 45mm and height 50mm) is inserted into a stabilized furnace at 750ºC, and the temperature of the furnace, surface & center of the specimen will be measured. Also, the flaming time and moss loss are recorded.

Non-Combustibility Test Instrumentis widely used to assess the flammability performance class of materials, such as EN 13501-1, EN 45545-2, DIN 4102, IMO FTP Code, etc.

Applicable Industries:

Rail Transit, Building Materials ,Marine materials and Other Fields

Test Standards:

ISO1182:2020,BS 476 part 4, ASTM E136, ASTM D2652, DIN 4102-1, IMO FTP Code Part 1,EN 13501-1

II. Main Features

1. Adopts modern electronic automatic design with silicon controlled technology to adjust furnace temperature by power regulation.

2. The heating source is an electric furnace preheated to 750±5°C, with a maximum internal furnace temperature of 900°C.

3. 360° rotatable and liftable thermocouple scanning device.

4. Stainless steel inverted cone air stabilizer and cylindrical flow guide hood.

5. Software automatically controls the heating rate and regulates furnace temperature in multiple stages.

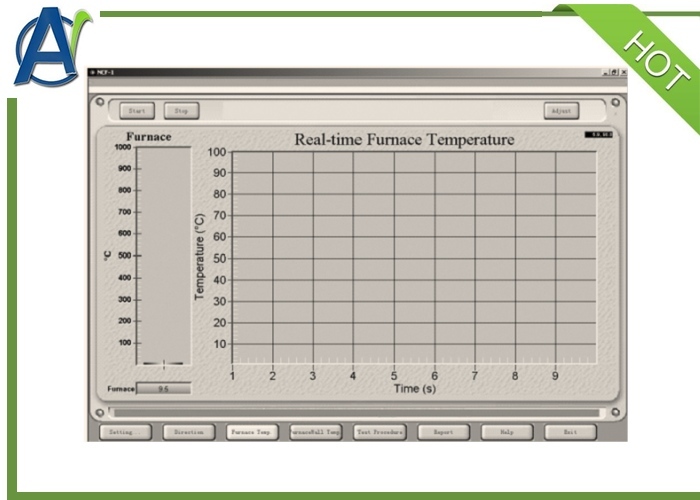

6. Equipped with data acquisition and analysis software, which can automatically generate test reports via computer.

III.Specification

Gas Requirements:CP grade butane (purity 99%)

Power supply: 220 V ±10%, 50 Hz, 5 A

Installation Environment:

Indoor use only

Ambient temperature: 15~35°C;
Relative humidity: <80%;
Permissible voltage fluctuation: ±10%;
Overvoltage category: Class II;
Pollution degree: Class 2.

What's the delivery time?

About 60days.
What's your payment terms?

30% paid by T/T in advance,70% paid by by T/T before shipping.
What's your guarantee terms?

The warranty of all products is 1 year.During this period,we are responsible for all faults caused by us.And we can supply life-long technical support.
Can you supply training?

We can supply training in our factory and online training for free.If onsite installation and training are required,please pay for tickets,accommodation and salary USD280/Day for every person.
