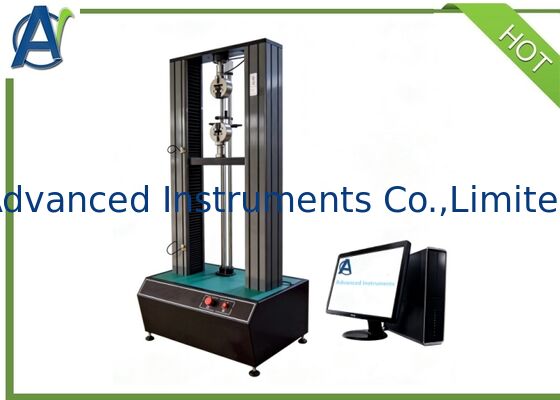

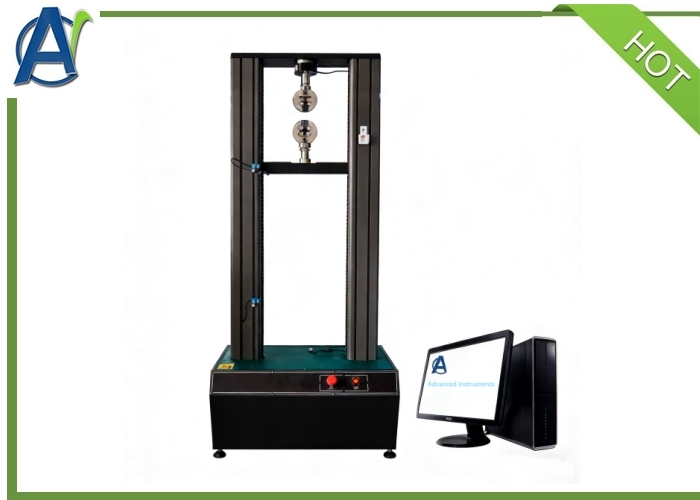

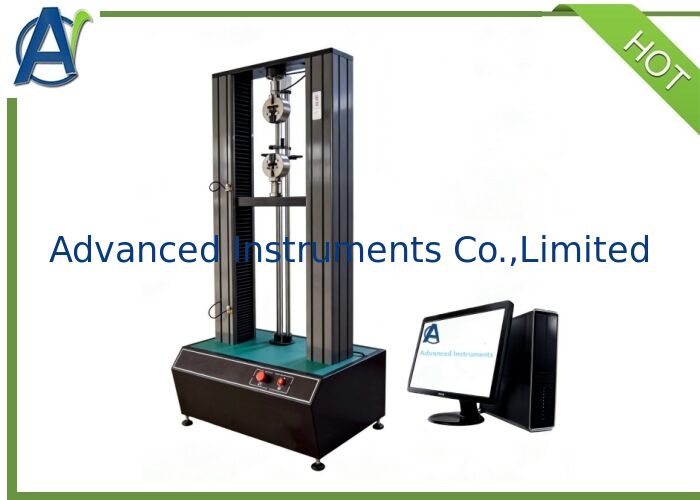

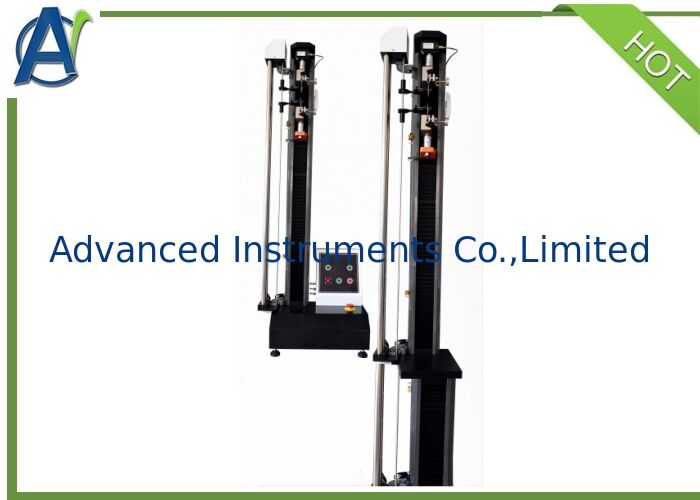

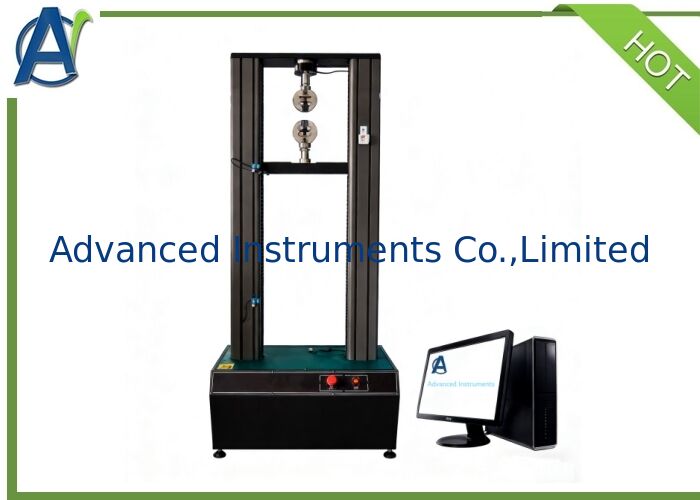

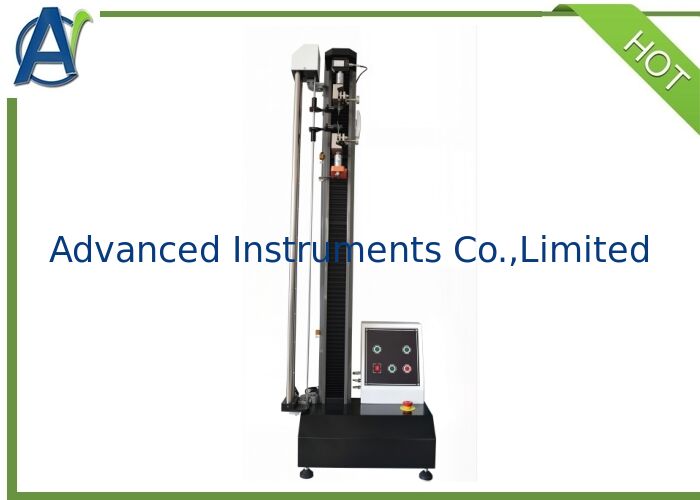

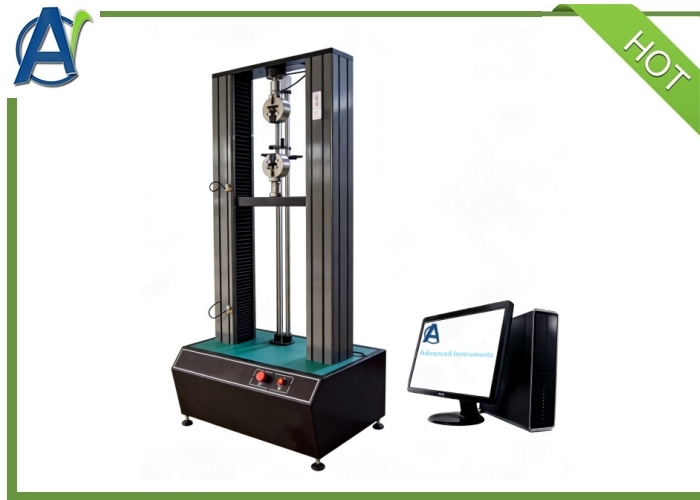

ISO 9513 Computer Control Electronic Tensile Testing Machine with Large Deformation Extensometer for Plastic Rubber Cable

ISO 9513 Computer Control Electronic Tensile Testing Machine with Large Deformation Extensometer for Plastic Rubber Cable
ISO 9513 Computer Control Electronic Tensile Testing Machine with Large Deformation Extensometer for Plastic Rubber Cable ISO 9513 Computer Control Electronic Tensile Testing Machine with Large Deformation Extensometer for Plastic Rubber Cable ISO 9513 Computer Control Electronic Tensile Testing Machine with Large Deformation Extensometer for Plastic Rubber Cable ISO 9513 Computer Control Electronic Tensile Testing Machine with Large Deformation Extensometer for Plastic Rubber Cable ISO 9513 Computer Control Electronic Tensile Testing Machine with Large Deformation Extensometer for Plastic Rubber Cable ISO 9513 Computer Control Electronic Tensile Testing Machine with Large Deformation Extensometer for Plastic Rubber Cable ISO 9513 Computer Control Electronic Tensile Testing Machine with Large Deformation Extensometer for Plastic Rubber Cable ISO 9513 Computer Control Electronic Tensile Testing Machine with Large Deformation Extensometer for Plastic Rubber Cable ISO 9513 Computer Control Electronic Tensile Testing Machine with Large Deformation Extensometer for Plastic Rubber Cable ISO 9513 Computer Control Electronic Tensile Testing Machine with Large Deformation Extensometer for Plastic Rubber Cable ISO 9513 Computer Control Electronic Tensile Testing Machine with Large Deformation Extensometer for Plastic Rubber Cable ISO 9513 Computer Control Electronic Tensile Testing Machine with Large Deformation Extensometer for Plastic Rubber Cable
Basic Information
Place of Origin: China
Brand Name: Advanced Instruments
Certification: ISO 9513
Model Number: AIC-21006
Minimum Order Quantity: 1set
Price: $10000~$20000
Packaging Details: Plywood Case
Delivery Time: 90days
Payment Terms: L/C,T/T,D/P
Supply Ability: 10sets/month
Get Best Price Contact Now
After Service: Response In 12 Hours 12 Months Warranty: 1full Year
Transport Package: Plywood Case Test Standard: ISO 9513
Power Supply: AC220V,50/60Hz,2A Deformation Measurement: Large Travel Extensometer
Max Test Force: 50N, 100N, 500N, 1000N, 2000N (optional For Users) Effective Stroke: 800mm
Test Force Value Relative Error: ≤±1% Test Speed Range: 0~500mm/min
Displacement Resolution: 0.01mm
Highlight:

ISO 9513

,

Tensile Testing Machine

,

large deformation tester

General Introduction

Computer-controlled electronic tensile tester (large deformation) is widely used for hardware, metal, rubber and plastics, footwear, leather, clothing, textiles, insulators, wires, cables, terminals and other types of materials, to test tensile, tear, peel, compression, bending and other materials research and development, inspection and test, with multiple functions, wide range of uses. The computer-controlled electronic tensile tester (large deformation) is adopted aluminum alloy enclosure, with lightweight body, beautiful appearance.

Standards:

  • ISO 9513
Technical parameters
  • Max test force: 50N, 100N, 500N, 1000N, 2000N (optional for users)
  • Effective stroke: about 800mm
  • Test force value relative error: ≤±1%
  • Test speed range: 0~500mm/min
  • Displacement resolution: 0.01mm
  • Sensor: American Transcell S type sensor
  • Power system: Japan Panasonic 400W servo motor
  • Clamps: Wave tooth type non-self-tightening clamps, 45 # steel processed, hard chrome plated surface
  • Large deformation: the distance between the two grips can be tracked automatically to calculate the elongation
  • Large deformation resolution: 0.1%
  • Ball screw: TBI2505 ball screw made in Taiwan, high transmission accuracy, using grinding process, good finish, keeping good accuracy, long service life. Good process of nuts, high load carrying capacity
  • Guide rod bearing: NSK ball linear bearing imported from Japan
  • Speed reduce device: Italy Outes precision vacuum cast aluminum reducer 1: 15
  • Guide rod: made of two φ25 bearing steels with surface hardening, the surface hardness can reach above HRC58
  • Dust prevention device: Taiwan suppression dust stacks cover to protect the screw from dust entry
  • Machine body surface treatment: Adopt the DuPont powder made in USA, electrostatic painting process, 200 ℃ high temperature curing, to ensure permanent non-fading
  • Display method: Test software +computer display
  • Section bar: one-time extrusion, generous appearance. oxidation coloring aluminum alloy section bar, high hardness, abrasion and corrosion resistance
  • Auxiliary remote control for clamps lifting
  • Safety device: overload stop function, up and down travel limiter, sample break stop function

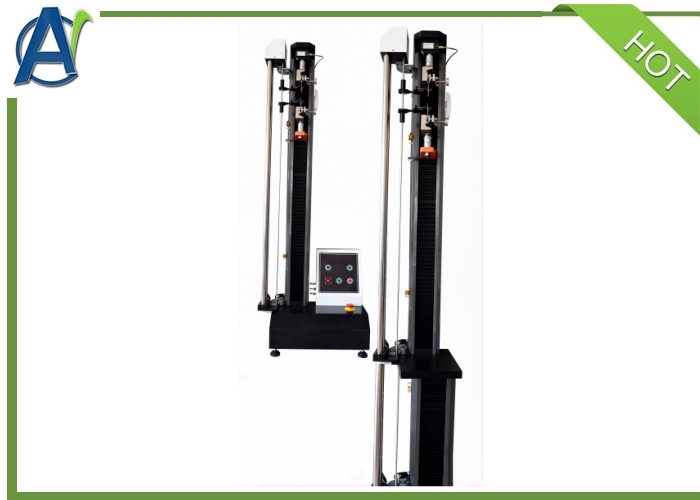

ISO 9513 Computer Control Electronic Tensile Testing Machine with Large Deformation Extensometer for Plastic Rubber Cable 0
Technical specifications
  • Overall Dimensions:500mm(W)x420mm(D)x1660mm(H)
  • Power supply:AC220V, 50/60Hz, 21A

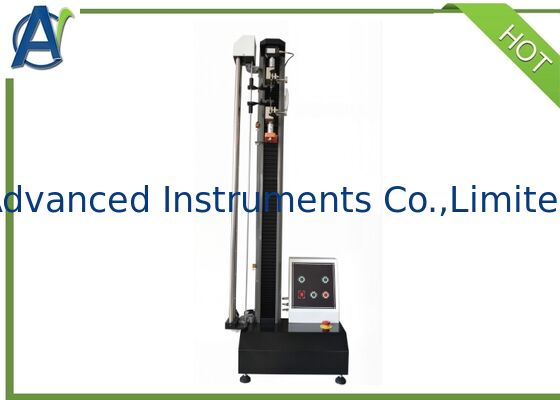

ISO 9513 Computer Control Electronic Tensile Testing Machine with Large Deformation Extensometer for Plastic Rubber Cable 1
FAQ
  1. What's the delivery time?
    About 90days.
  2. What's your payment terms?
    30% paid by T/T in advance,70% paid by by T/T before shipping.
  3. What's your guarantee terms?
    The warranty of all products is 1 year.During this period,we are responsible for all faults caused by us.And we can supply life-long technical support.
  4. Can you supply training?
    We can supply training in our factory and online training for free.If onsite installation and training are required,please pay for tickets,accommodation and salary USD280/Day for every person.
