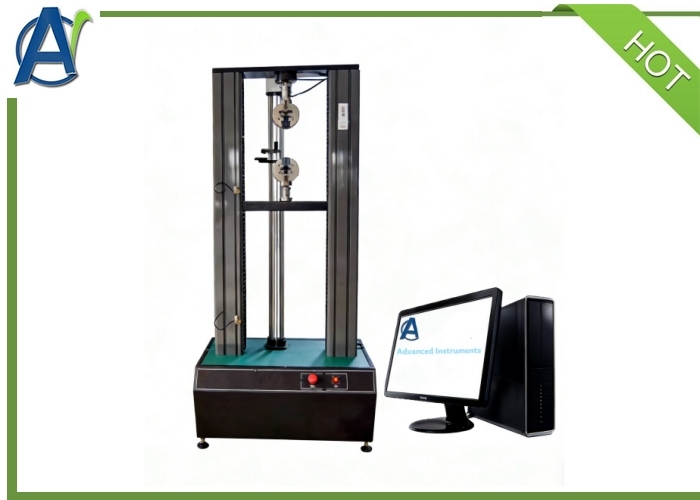

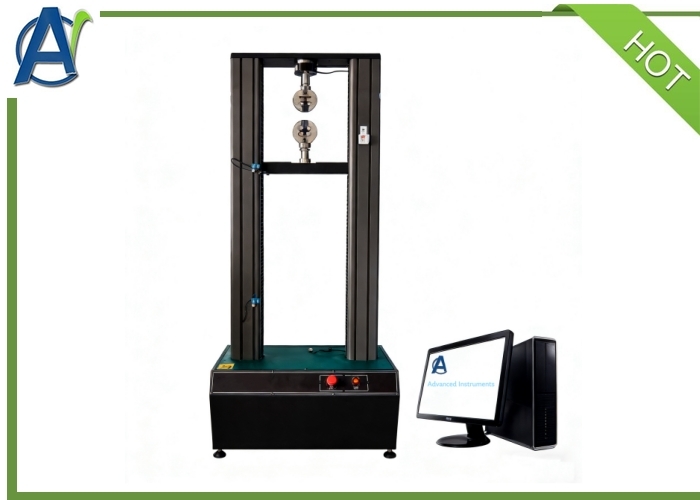

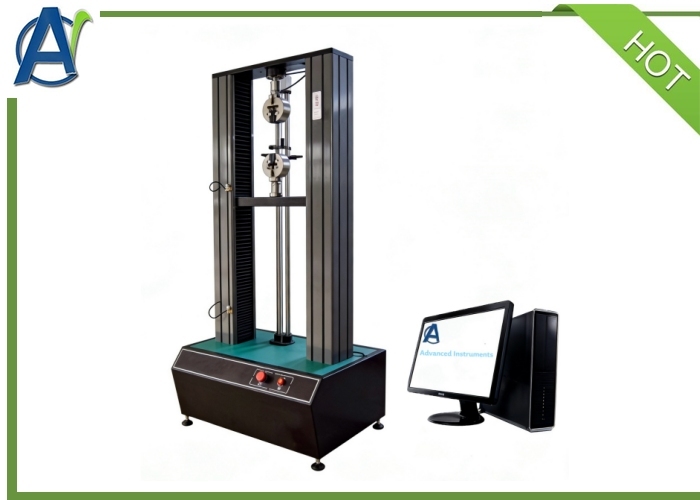

ASTM E8/E8M; ISO 7500-1:2008 Computer-controlled Servo-type Universal Testing machine (large deformation)

ASTM E8/E8M; ISO 7500-1:2008 Computer-controlled Servo-type Universal Testing machine (large deformation)
ASTM E8/E8M; ISO 7500-1:2008 Computer-controlled Servo-type Universal Testing machine (large deformation) ASTM E8/E8M; ISO 7500-1:2008 Computer-controlled Servo-type Universal Testing machine (large deformation) ASTM E8/E8M; ISO 7500-1:2008 Computer-controlled Servo-type Universal Testing machine (large deformation) ASTM E8/E8M; ISO 7500-1:2008 Computer-controlled Servo-type Universal Testing machine (large deformation) ASTM E8/E8M; ISO 7500-1:2008 Computer-controlled Servo-type Universal Testing machine (large deformation) ASTM E8/E8M; ISO 7500-1:2008 Computer-controlled Servo-type Universal Testing machine (large deformation) ASTM E8/E8M; ISO 7500-1:2008 Computer-controlled Servo-type Universal Testing machine (large deformation) ASTM E8/E8M; ISO 7500-1:2008 Computer-controlled Servo-type Universal Testing machine (large deformation) ASTM E8/E8M; ISO 7500-1:2008 Computer-controlled Servo-type Universal Testing machine (large deformation) ASTM E8/E8M; ISO 7500-1:2008 Computer-controlled Servo-type Universal Testing machine (large deformation) ASTM E8/E8M; ISO 7500-1:2008 Computer-controlled Servo-type Universal Testing machine (large deformation) ASTM E8/E8M; ISO 7500-1:2008 Computer-controlled Servo-type Universal Testing machine (large deformation)
Basic Information
Place of Origin: China
Brand Name: Advanced Instruments
Certification: ASTM E8/E8M; ISO 7500-1:2008
Model Number: AIC-21003A
Minimum Order Quantity: 1set
Price: $10000~$20000
Packaging Details: Plywood Case
Delivery Time: 60days
Payment Terms: L/C,T/T,D/P
Supply Ability: 20sets/month
Get Best Price Contact Now
After Service: Response In 12 Hours 12 Months Warranty: 1full Year
Transport Package: Plywood Case Test Standard: ASTM E8/E8M; ISO 7500-1:2008
Gas: Nitrogen (oxygen Content <0.5%), Oxygen Application: Universal Testing,Plastic Testing, Tensile Testing
Color: Grey Operation: Automatic
Metal Covering Size: 300mmx600mmx1175mm Power Supply: AC220V,50/60Hz,5A
Blast Burner: Nominal Power 1kw Burning Device: Automatic High-tension Ignition
Air Source: Propane And Compressed Air Control Mode: Touch Screen Control
Combustion Chamber Volume: ≥ 1 M³ Specification: 810mm×520mm×1850mm
Quartz Tube: Inner Diameter 30mm, Total Length 450mm; Bottle Washing: 500ml, 2 Pcs/set
Burning Boat: Type 77, 100 Pcs/set; Max Test Force: 5KN, 10KN, 20KN (optional For Users)
Effective Stroke: About 800mm Testing Width: 400mm
Test Speed Range: 0~300mm/min Displacement Resolution: 0.01mm
Test Material: Metal,Steel,Wire Rope,Rubber,Plastic
Highlight:

ASTM E8/E8M

,

ISO 7500-1:2008

,

Servo-type Universal Tester

General Introduction
1.1 Equipment overview

Computer-controlled Servo-type universal tester (large deformation) is used for tensile, compression, bending, cutting test of various materials, which adopted with advanced machinery, SCM and computer technology to record the load of the sample, the variable displacement and time change curve, to research the material property and control the quality during manufacturing.

1.2 Related standards
  • GB/T 228-2010
  • ASTM E8/E8M
  • ASTM D638

ASTM E8/E8M; ISO 7500-1:2008 Computer-controlled Servo-type Universal Testing machine (large deformation) 0

Technical parameters
  • Max test force: 5KN, 10KN, 20KN (optional for users)
  • Effective stroke: about 800mm
  • Testing width: 400mm
  • Test force value relative error: ≤±1%
  • Sensor: S-type load cell
  • Test speed range: 0~300mm/min
  • Displacement resolution: 0.01mm
  • Large deformation: the distance between the two grips can be tracked automatically to calculate the elongation
  • Large deformation resolution: 0.1%
  • Support beam: high carbon steel forged, good mechanical performance, without deformation
  • Power system: Japan Panasonic 750W servo motor
  • Ball screw: TBI2505 ball screw made in Taiwan, high transmission accuracy, using grinding process, good finish, keeping good accuracy, long service life. Good process of nuts, high load carrying capacity
  • Grip surface process: all of the grips are adopted the hard chromium plating process, the grip block is adopted imported Japanese tool steel, SKD-11 high frequency process, HRC is over 55, wear resistant and impact resistant
  • Guide rod bearing: NSK ball linear bearing imported from Japan
  • Guide rod: made of two φ30 bearing steels with surface hardening, the surface hardness can reach above HRC58
  • Speed reduce device: Italy Outes precision vacuum cast aluminum reducer 1: 20
  • Dust prevention device: Taiwan suppression dust stacks cover to protect the screw from dust entry
  • Machine body surface treatment: Adopt the DuPont powder made in USA, electrostatic painting process, 200 ℃ high temperature curing, to ensure permanent non-fading
  • Display method: Test software +computer display
  • Section bar: one-time extrusion, generous appearance. oxidation coloring aluminum alloy section bar, high hardness, abrasion and corrosion resistance
  • Auxiliary remote control for clamps lifting
  • Safety device: overload stop function, up and down travel limiter, sample break stop function
Technical specifications
  • Overall Dimensions: 810mm*520mm*1850mm
  • Power supply: AC 220V, 50/60Hz, 5A
  • Computer: customer optional

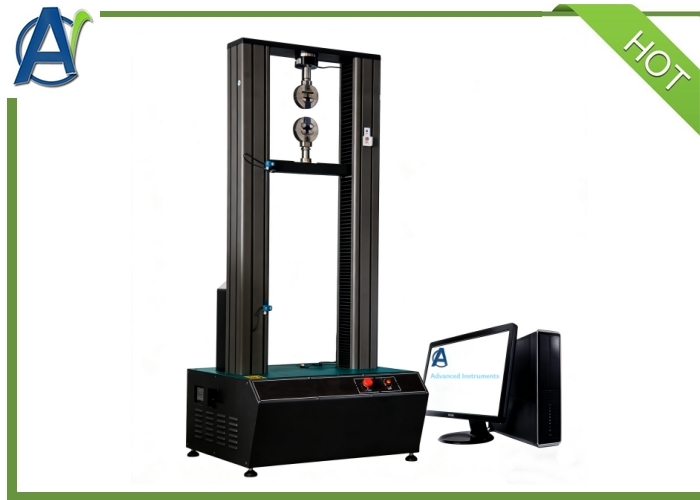

ASTM E8/E8M; ISO 7500-1:2008 Computer-controlled Servo-type Universal Testing machine (large deformation) 1
FAQ
  1. What's the delivery time?
    About 60days.
  2. What's your payment terms?
    30% paid by T/T in advance,70% paid by by T/T before shipping.
  3. What's your guarantee terms?
    The warranty of all products is 1 year.During this period,we are responsible for all faults caused by us.And we can supply life-long technical support.
  4. Can you supply training?
    We can supply training in our factory and online training for free.If onsite installation and training are required,please pay for tickets,accommodation and salary USD280/Day for every person.
