Place of Origin: | China |
---|---|
Brand Name: | AI |
Certification: | ISO |
Model Number: | AIC42039-A |
Minimum Order Quantity: | 1 set Low Temperation Elongation Test Device |
Price: | Negotiable |
Packaging Details: | Low Temperation Elongation Test Device is packed in Plywood case |
Delivery Time: | 30 days |
Payment Terms: | L/C, T/T, Western Union |
Supply Ability: | 20 sets per month |
Applicable Standard: | IEC 60811-505 | Motor Power: | 200W |
---|---|---|---|
Max Elongation Strength: | 150mm | Elongation Speed: | 20~30mm/min |
Sample Position: | 3 Units | Dimension Of Test Part: | 420mm×245mm×310mm |
Dimension Of Controller: | 400mm×315mm×250mm | Color: | Grey And Black |
Display: | LCD | Power Supply: | AC 220V 50/60Hz |
Highlight: | Elongation Test Device,Low Temperation Elongation Test,IEC 60811-505 |
Product description:

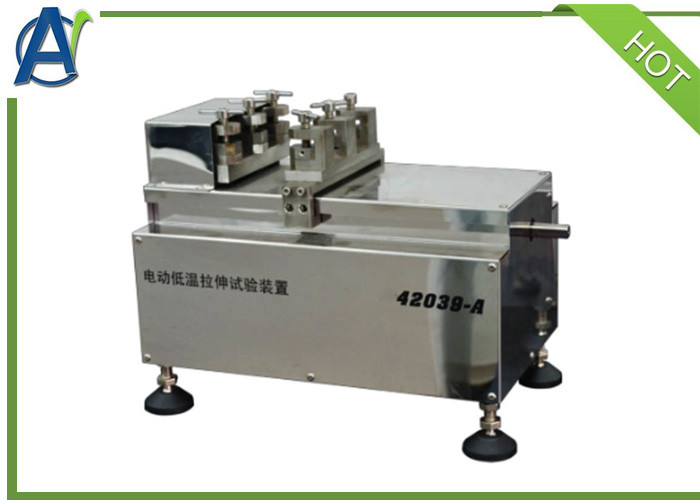

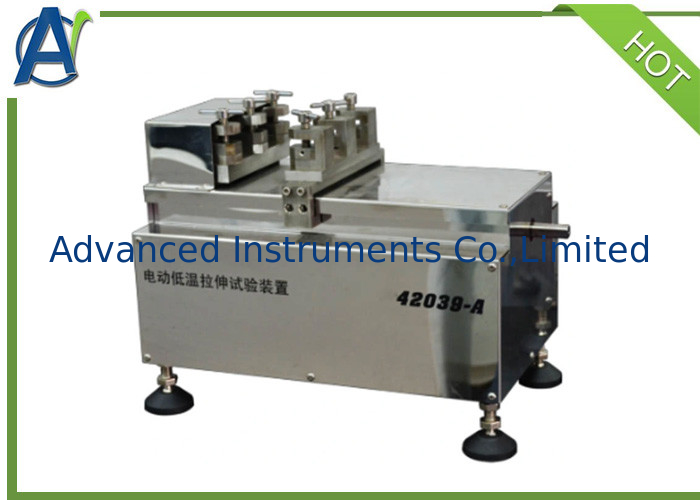

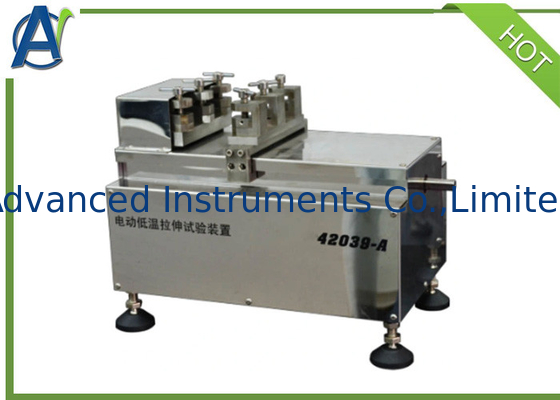

Wire and cable power-driven low temperature elongation test device is applicable to polymer materials, wire and cable, rubber, plastic and other insulating sheath tensile test at 0 to -70ºC environment. The stretching device consists of motor, transmission parts, Specimen chuck, sensors and other components
Standard:
• GB/T 2951.14-2008
• IEC 60811-505
Technical parameters:

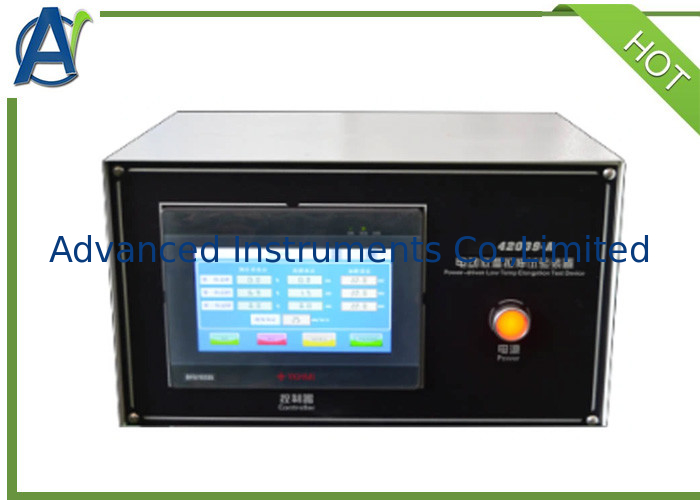

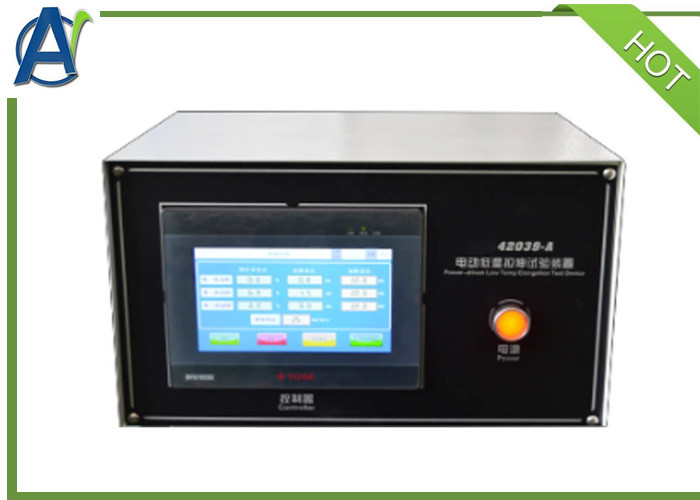

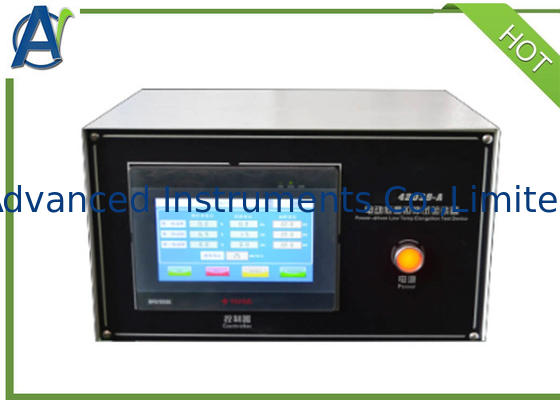

• Electronic control cabinet: it consists of three groups of displacement indicators, stretching indicator, reset and speed regulating system(the stretching speed is preset before leaving factory)
• The displacement display displays the displacement length accurately, when the specimen is being stretched, it displays the displacement automatically, when the specimen is stretched to break, the displacement figure stops at the very moment of being broken, and the unit is mm
• Motor power: 200W, placed outside of the low temperature chamber
• Max elongation strength: 150mm
• Elongation speed: 20~30mm/min
• Chuck type: Non-self-tightening type
• Sample position:3 units
• Specimen model: No. 1,2 dumbbell specimen
Specifications:
• Overall dimensions:elongation device: 420mm×245mm×310mm
Control cabinet: 400mm×315mm×250mm
• Power supply: AC 220V 50/60Hz
• This low temperature elongaton tester is used with the low temperature chamber
