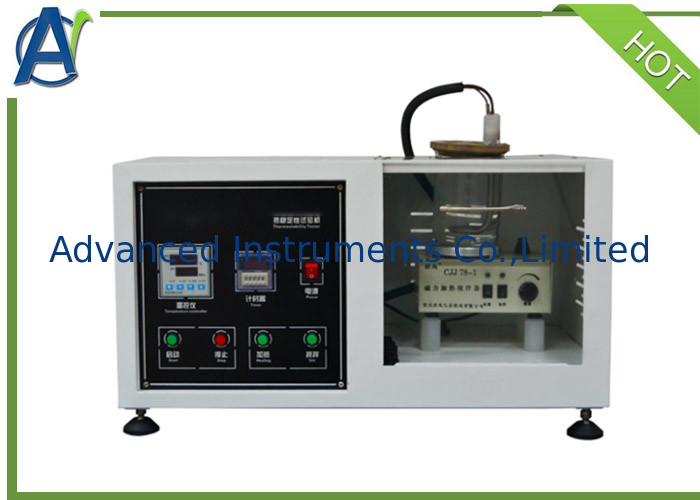

En 60811-405 Thermal Stability Tester for Cable and Wire PVC Compounds

En 60811-405 Thermal Stability Tester for Cable and Wire PVC Compounds
En 60811-405 Thermal Stability Tester for Cable and Wire PVC Compounds En 60811-405 Thermal Stability Tester for Cable and Wire PVC Compounds En 60811-405 Thermal Stability Tester for Cable and Wire PVC Compounds En 60811-405 Thermal Stability Tester for Cable and Wire PVC Compounds En 60811-405 Thermal Stability Tester for Cable and Wire PVC Compounds En 60811-405 Thermal Stability Tester for Cable and Wire PVC Compounds En 60811-405 Thermal Stability Tester for Cable and Wire PVC Compounds En 60811-405 Thermal Stability Tester for Cable and Wire PVC Compounds En 60811-405 Thermal Stability Tester for Cable and Wire PVC Compounds
Basic Information
Place of Origin: China
Brand Name: AI
Certification: ISO
Model Number: AIC42023
Minimum Order Quantity: 1 Set Thermal Stability Tester
Price: Negotiable
Packaging Details: 1 Set Thermal Stability Tester packed in Plywood case
Delivery Time: 15 days
Payment Terms: D/P, T/T, L/C, Western Union
Supply Ability: 100 Sets per Month
Get Best Price Contact Now
Test Standard: En 60811-405 Tempereature Range: Room Temperature ~ 250 ºC
Heater Power: 1.5KW Glass Beakers: 1000ml
Small Tube: Inner Diameter 4mm Big Tube: Inner Diameter 12mm
Power Supply: AC 220V 50/60HZ 7A Dimension: 700×400×670mm
Working Position: 6 Groups
Highlight:

Thermal Stability Tester

,

En 60811-405

,

cable tester

Product Description:
Thermal stability Tester is designed according to GB/T 2951.32-2008< insulating and sheathing materials of electric and optical cables-Thermal stability test>, used for wire and cable PVC compounds insulating and sheathing test.

Standard:
• GB/T 2951.32-2008
• GB/T 8815-2008

Installation Requirements:

1 Temperature range room temperature ~ 250 ºC
2 Temperature Resolution 0.1 ºC
3 Heater power 1.5KW
4 Glass beakers 1000ml
5 Small tube length 110mm, outer diameter 5mm, inner diameter 4mm, one end sealed
6 Big tube inner diameter 12mm, outer diameter 14mm,height 95mm
7 PH test paper Congo red
8 Working stations six groups
9 Overall dimensions 700×400×670mm
10 Power supply AC 220V 50/60HZ 7A
11 Test oil (provided by users)



En 60811-405 Thermal Stability Tester for Cable and Wire PVC Compounds 0
