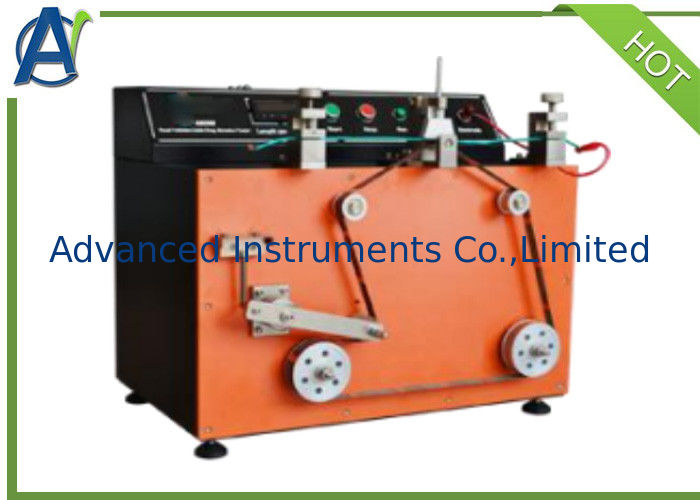

IEC 60245.8 Flexibility Tester For 2 Core And 3 Core Sheathed Cable

IEC 60245.8 Flexibility Tester For 2 Core And 3 Core Sheathed Cable
IEC 60245.8 Flexibility Tester For 2 Core And 3 Core Sheathed Cable IEC 60245.8 Flexibility Tester For 2 Core And 3 Core Sheathed Cable IEC 60245.8 Flexibility Tester For 2 Core And 3 Core Sheathed Cable IEC 60245.8 Flexibility Tester For 2 Core And 3 Core Sheathed Cable IEC 60245.8 Flexibility Tester For 2 Core And 3 Core Sheathed Cable IEC 60245.8 Flexibility Tester For 2 Core And 3 Core Sheathed Cable IEC 60245.8 Flexibility Tester For 2 Core And 3 Core Sheathed Cable IEC 60245.8 Flexibility Tester For 2 Core And 3 Core Sheathed Cable IEC 60245.8 Flexibility Tester For 2 Core And 3 Core Sheathed Cable
Basic Information
Place of Origin: China
Brand Name: AI
Certification: ISO
Model Number: AIC22178
Minimum Order Quantity: 1 set Cable Flexibility Tester
Price: Negotiable
Packaging Details: Cable Flexibility Tester is packed in Plywood case
Delivery Time: 30 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 200 sets per month
Get Best Price Contact Now
Test Standard: IEC 60245.8 Specimen Voltage: 100~400V (adjustable)
Conductor Cross-sectional Area: 0.75mm2 ~ 1.5mm2 Test Current: 6 -20A
Testing Times: 3000 Times (back And Forth) Loading: 10, 20, 25, 30, 50, 70, 100N
Upper Grip Displacement Speed: 9 Times/min Dimension Of Electrical Cabinet: 600mm×600mm×1200mm
Dimension Of Twisting Tester: 350mm×280mm×1800mm Specimen Length: 1000mm
Highlight:

400V Flexibility Tester

,

3 Core Sheathed Cable Testing Machine

,

Sheathed Cable Flexibility Tester

Product description:
Rubber insulated cables flexibility tester is suitable for the two-core and three-core sheathed cable that conductor cross-sectional area is 1.5mm2 or less, in line with standard IEC60245.8:1998 <Rubber Insulated Cables of Rated Voltages Up to and Including 450/750 V-Part 8:Cords for Applications Requiring High Flexibility>

Standard:
• IEC60245.8:1998
• GB/T 5013.8-2008
• GB/T 5013.2-2008

Technical parameters:
• Specimen voltage:100~400V (adjustable)
• Conductor cross-sectional area: 0.75mm2 ~ 1.5mm2
• Test current: 6 -20A
• Specimen length: 1000mm
• Testing times: 3000 times (back and forth)
• Loading: 10, 20, 25, 30, 50, 70, 100N
• Upper grip displacement speed: 9 times (back and forth)/Min
• Total length of upper and lower grips after straight: about 800mm

Specifications:
Overall dimensions: Electric cabinet: 600mm×600mm×1200mm
Twisting tester: 350mm×280mm×1800mm
Power supply: AC 380V 50/60Hz 5A
