Place of Origin: | China |
---|---|
Brand Name: | AI |
Certification: | ISO |
Model Number: | AIC22161 |
Minimum Order Quantity: | 1 set Abrasion Resistance Test Instrument |
Price: | Negotiable |
Packaging Details: | Abrasion Resistance Test Instrument is packed in Plywood case |
Delivery Time: | 30 days |
Payment Terms: | L/C, T/T, Western Union |
Supply Ability: | 200 sets per month |
Test Standard: | ISO 6722 | Applicable Wire Diameter: | 0~15mm |
---|---|---|---|
Abrasive Belt Counting Range: | 0 ~ 5000mm | Abrasive Belt Movement Speed: | 1500mm/min |
Test Voltage: | 10V | Conductive Bar Width: | 10mm |
Distance Of Conductive Bars: | 150mm | Dimension: | 720mm×370mm×450mm |
Power Supply: | AC 220V 50/60Hz 1A | Warranty: | 1 Year |
Highlight: | Abrasion Resistance Test Instrument,Abrasion Resistance Tester,Road Vehicles Cable Test Instrument |
Product description:

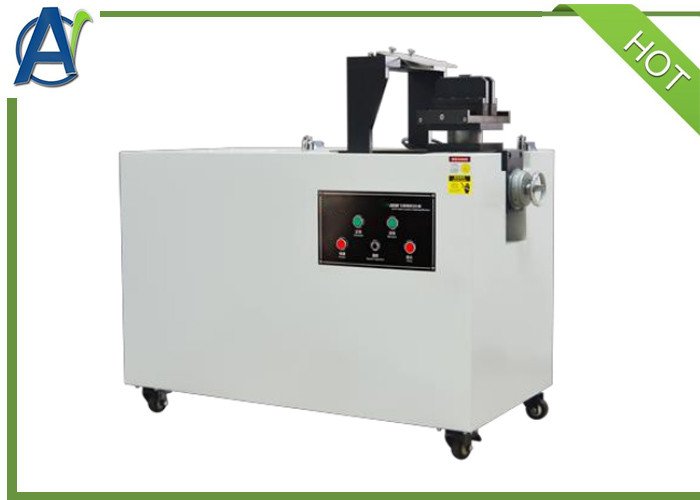

Road vehicles cable Abrasion Resistance Test Instrument is used to test road vehicles PVC insulated cables drag abrasion strength test. It’s an essential test instrument for road vehicles cable production.
Standards:
• GB/T 25085-2010
• ISO 6722:2006
Technical parameters:
• Applicable wire diameter: 0 ~ 15mm
• Abrasive belt counting range: 0 ~ 5000mm(± 2.5%)
• Abrasive belt movement speed: 1500mm/min
• Support abrasive belt circular bead: φ7mm
• Test voltage: 10V
• Weight: two standards, only used for relevant standard (optional for users)
GB weight: 250g, 450g, 750g, 1350g, 1900g, one each
Weight bearing: 1 / 32R, 1 / 16R, 3 / 16R, one each (customized)
Weight of bearing kit (± 5g): 160g/PCS (customized)
Japanese standard weights: 50g, 100g, 200g, 500g, 1500g, 1900g, one each
Weight bearing: 1 / 32R, 1 / 16R, 3 / 16R, one each (customized)
Weight of bearing kit (± 5g): 64.24g/ PCS (customized)
• Included angle of sandpaper and Specimen: 30° (adjustable)
• Conductive bar width: 10mm
• Distance of conductive bars: 150mm
Specifications:
• Overall dimensions: 720mm×370mm×450mm
• Power supply: AC 220V 50/60Hz 1A
