Place of Origin: | China |
---|---|
Brand Name: | AI |
Certification: | ISO |
Model Number: | AIC22065 |
Minimum Order Quantity: | 1 set Scrap Abrasion Tester |
Price: | Negotiable |
Packaging Details: | Scrap Abrasion Tester is packed in Plywood case |
Delivery Time: | 30 days |
Payment Terms: | L/C, T/T, Western Union |
Supply Ability: | 200 sets per month |
Test Stabdard: | ISO 6722 | Diameter Of Needle: | 0.45mm±0.01mm |
---|---|---|---|
Frequency: | Reciprocate 55/min ± 5/min | Displacement: | 15.5mm±1mm |
Counter: | 0 ~ 9999 | Weight: | (255g/561g) |
Testing Voltage: | 8~10V | Needle Assembly: | 153±2g |
Application: | Vehicles Cables | Color: | Red |
High Light: | Road Vehicles Cable Scrap Abrasion Tester,ISO 6722 Scrap Abrasion Tester,cable abrasion tester |
Product description:

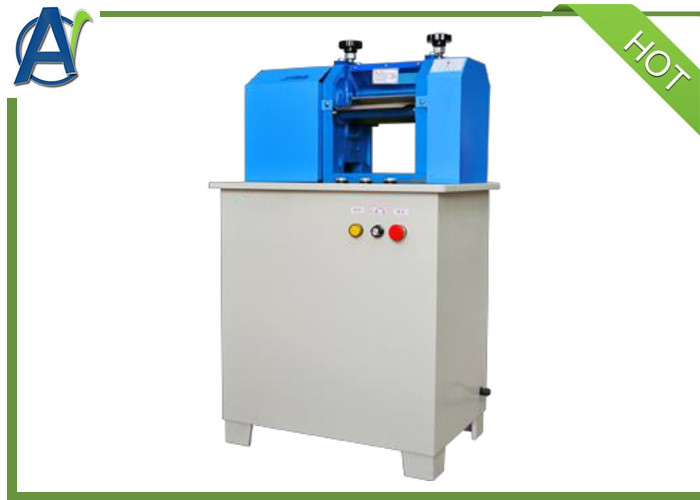

Road vehicles cable scrap abrasion tester is used to detect the insulation and abrasion resistance strength of road vehicles PVC insulation low voltage cables. It is an essential test instrument for automotive wire production.
This tester consists of a specially designed insulating surface reciprocating abrasion device which is along with the Specimen shaft, and a counter which is used to record the times and with reset function, when the needle scraping grinding through the insulator and touch the conductor, the device should stop automatically. Optionally stop during the test, and then restart. Specimen placement and force: the Specimen should not be moved during the test, in the state of motion, constant vertical force is on the Specimen
Standards:
• GB/T 25085-2010
• ISO 6722:2011
Technical parameters:
• Diameter of scraping-needle: 0.45mm±0.01mm
• Frequency: reciprocate 55/min ± 5/min( one round trip is one time)
• Displacement of Scraping-needle: 15.5mm±1mm
• Counter: 0 ~ 9999
• Weight: (255g/561g) one each
• Testing voltage: about 8~10V
• Scraping-needle assembly: 153±2g
