Place of Origin: | China |
---|---|
Brand Name: | AI |
Certification: | ISO |
Model Number: | AIC-42170B |
Minimum Order Quantity: | 1 set Hot Set Aging Test Chamber |
Price: | Negotiable |
Packaging Details: | Hot Set Aging Test Chamber packed in Hardboard |
Delivery Time: | 30 days |
Payment Terms: | L/C, T/T, Western Union |
Supply Ability: | 200 sets per month |
Temp.range: | (normal Temperature + 30) ~ 300 ºC | Temperature Fluctuation: | ≤± 0.5 ºC |
---|---|---|---|
Temperature Deviation: | ≤± 2 ºC | Heating Time: | 50mins From Room Temperature To 300ºC |
Heating Plate: | 8-20 Times/hour | Ventilation Rate: | 0.3 ~ 3L / Min |
Working Units: | 3 Pieces | Inner Dimension: | 450*450*500mm3 |
Material Of Inside: | SUS304 Stainless Steel | Power Supply: | AC220V 16A |
Overall Dimension: | 1150 * 750 * 1400mm3 | ||
Highlight: | Hot Set Aging Test Chamber,Elongation Testing Apparatus,Cable Aging Chamber |
Product Description:

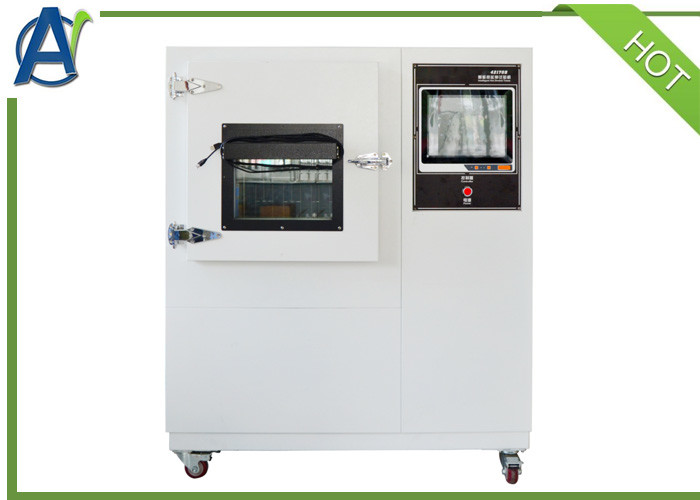

This Hot Set Aging Testing Chamber adopts micro camera + industrial integrated computer + self-developed software and other main components. It can automatically measure the elongation of the sample in high temperature environment.It is mainly used for natural ventilation thermal aging test in wire, cable, rubber and plastic industries.
Temperature and time can be set and controlled by computer, easy to operate. The front door of the Hot Set Aging Test Chamber is equipped with right vacuum glass observation window, material of chamber is SUS304 stainless steel. Besides, the shell is made of high quality steel plate, and the surface is sprayed with plastic. The door seal is made of heat-resistant silicone rubber, which is hygienic and safe.
The specimen suspension device in the instrument is matched with the instrument, which can hang three samples at the same time. The upper and lower clamps of the device can be quickly taken and installed, which is convenient to replace the sample and shorten the opening time.
Standard:
GB/T 2951-2008
Technical Parameters:
Specifications of Hot Set Aging Chamber:
1 | Overall Dimensions of host | 1150 * 750 * 1400mm3 |
2 | External Dimensions of the device | 360 * 200 * 410mm3 |
3 | Power Supply | AC220V 16A |
