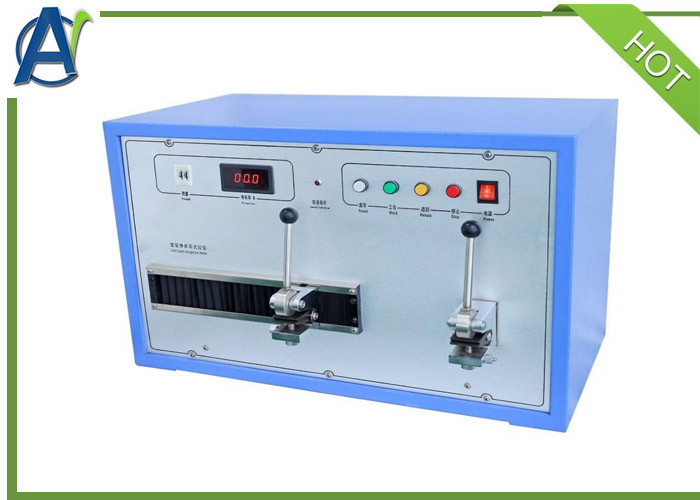

IEC60851-3 Jerk Test Tool With Jerking Speed Above 3m/S For Wires

IEC60851-3 Jerk Test Tool With Jerking Speed Above 3m/S For Wires
IEC60851-3 Jerk Test Tool With Jerking Speed Above 3m/S For Wires IEC60851-3 Jerk Test Tool With Jerking Speed Above 3m/S For Wires IEC60851-3 Jerk Test Tool With Jerking Speed Above 3m/S For Wires IEC60851-3 Jerk Test Tool With Jerking Speed Above 3m/S For Wires IEC60851-3 Jerk Test Tool With Jerking Speed Above 3m/S For Wires IEC60851-3 Jerk Test Tool With Jerking Speed Above 3m/S For Wires IEC60851-3 Jerk Test Tool With Jerking Speed Above 3m/S For Wires IEC60851-3 Jerk Test Tool With Jerking Speed Above 3m/S For Wires IEC60851-3 Jerk Test Tool With Jerking Speed Above 3m/S For Wires
Basic Information
Place of Origin: CHINA
Brand Name: AI
Certification: ISO
Model Number: AIJLD-10
Minimum Order Quantity: 1 Set Breakdown Voltage Test Apparatus
Price: Negotiable
Packaging Details: Breakdown Voltage Test Apparatus is packed in plywood case
Delivery Time: 15 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100 sets per month
Get Best Price Contact Now
Test Standard: IEC60851-3 Jerking Speed: ≥3m/s
Start Distance Between Two Clamps: 250±1mm Maximum Moving Distance: 125mm
Working Pressure: 0.4~0.8MPa Power Supply: AC220V±10% 50Hz
Power Consumption: <150W Dimension: 650×405×425mm
Weight: 55KG Color: Blue
Highlight:

3m/S Jerk Test Tool

,

Jerking Cable Testing Machine

,

IEC60851-3 Jerk Test Tool

Performance Characteristics
1.Executive standard: GB/T4074.3-2008,IEC60851-3;
2.Inspection standard: JB/T4279.5-2008
3.This Jerk Test Tool is used to measure the film adhesion property of enameled round wires with nominal conductor diameter of 1.000mm and below;
4.Built-in small ultra-quiet air compressor would provide power supply and automatic constant pressure;
5.When the sample is pulled abruptly, it will not move or slip;

Technical Parameters

Jerking speed ≥3m/s
Start distance between two clamps 250±1mm
Maximum moving distance of movable clamp 125mm
Working pressure 0.4~0.8MPa
Input power AC220V±10% 50Hz
Power consumption <150W
Overall dimensions L×W×H 650×405×425mm
Weight 55kg



IEC60851-3 Jerk Test Tool With Jerking Speed Above 3m/S For Wires 0IEC60851-3 Jerk Test Tool With Jerking Speed Above 3m/S For Wires 1
