Place of Origin: | CHINA |
---|---|
Brand Name: | AI |
Certification: | ISO |
Model Number: | AIZDG-25 |
Minimum Order Quantity: | 1 Set Resistance to Abrasion Test Instrument |
Price: | Negotiable |
Packaging Details: | Resistance to Abrasion Test Instrument is packed in plywood case |
Delivery Time: | 15 days |
Payment Terms: | L/C, T/T, Western Union |
Supply Ability: | 100 sets per month |
Test Standard: | GB/T4074.3-2008,IEC60851-3 | Displacement Distance Of Painting Scraper: | Copper Wires Covered With φ0.018-φ3.000mm Enamel |
---|---|---|---|
Movement Speed Of Painting Scraper: | 400±40mm/min | Diameter Of Scraper: | 0.23±0.01mm |
Test Voltage: | DC6.5±0.5V | Short-circuit Current: | 20±0.5mA |
Power Consumption: | ≤150W | Overall Dimension: | 640×350×355mm |
Weight: | 45KG | Display: | LED |
High Light: | Resistance To Abrasion Tester,Wires Abrasion Test Instrument,IEC60851-3 Test |

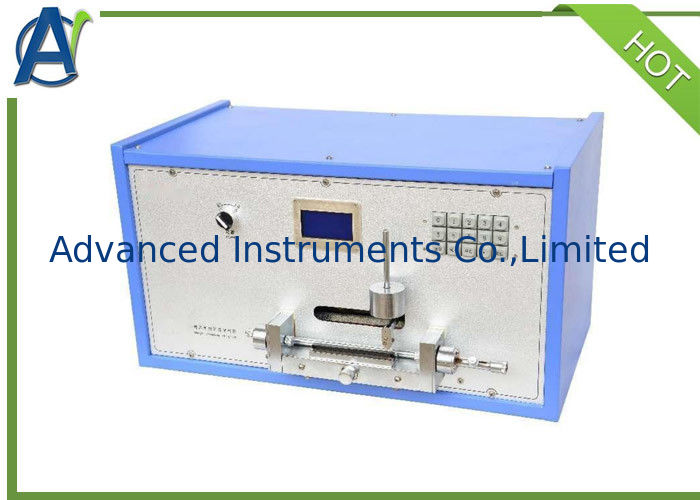

Performance Characteristics
1.Executive standard: GB/T4074.3-2008/IEC60851-3; Inspection standard: JB/T4279.9-2008
2.This Resistance to Abrasion Test Instrument is used to measure the film scrap resistance of enameled round wires with nominal conductor diameter above 0.250mm;
3.Application of SCM control allows for fast operation and strong anti-interference capacity;
4.This Resistance to Abrasion Test Instrument can automatically complete the whole test process and work out the average of scraping forces obtained in three times;
5.Sample support table allows for parallel rise and fall, maintaining close contact between the entire plane with sample;
6.As driven by precision linear rail, scraper is free from shake during movement;
7.When film is scratched, painting scraper would automatically stop scraping, with exposed conductor of sample<3mm;
8.Chinese/English LCD displays test operating procedure and test results;
Major Technical Parameters
Displacement distance of painting scraper | >100mm |
Movement speed of painting scraper | 400±40mm/min |
Diameter of scraper | 0.23±0.01mm |
Test voltage | DC6.5±0.5V |
Short-circuit current | 20±0.5mA |
Scraping force error | <±5% |
Input power | AC220V±10% 50Hz |
Power consumption | <150W |
Overall dimensions | L×W×H 640×350×355mm |
Weight | 45kg |
