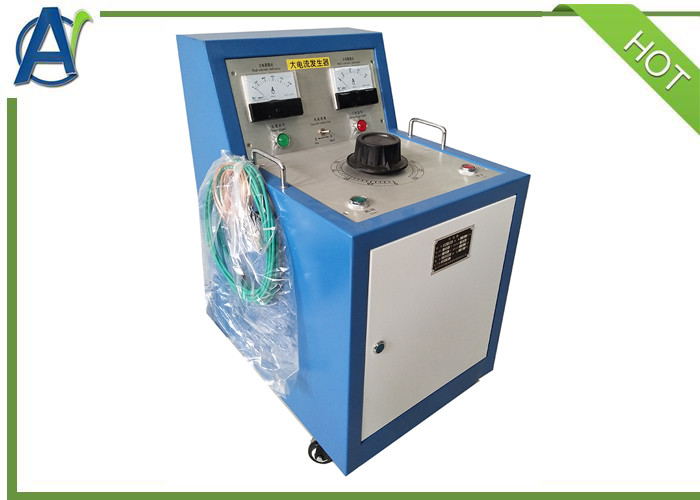

SLQ 500A to 10kA Single Phase Primary Current Injection Tester

Basic Information

Place of Origin:	China Mainland
Brand Name:	AI
Certification:	ISO9001
Model Number:	SLQ

Minimum Order Quantity:	1 full set Primary Current Injection Tester
Price:	Negotiable
Packaging Details:	Primary Current Injection Tester packed in veneer cases
Delivery Time:	15 working days
Payment Terms:	Western Union, , T/T, L/C
Supply Ability:	100 sets/motnh

Get Best Price Contact Now

Functions:	Supply Large Current For Electrical Debugging, Primary Current Injection Tester 1000A	Test Objects:	Circuit Breaker, Transformer, Etc.
Output Current:	500A To 10000A	Capacity Range:	3kVA To 60kVA
Service:	Capacity And Maximum Current Output Could Be Customized	Structure:	Integrated Or Seperated
Power Supply:	AC220V ± 10%, 50Hz/60Hz	Warranty:	One Year
Highlight:	10kA Primary Current Injection Tester , 2500A Primary Current Injection Tester , 500A Primary Current Injection Tester

Introduction

Primary Current Injection Tester is essential equipment used for electrical debugging to generate high current, which be widely used in power plants, power distribution stations, electrical plants , scientific research, laboratories and other units.

Primary Current Injection Tester is a short-term or intermittent work device and characterized by small size, light weight, good performance, easy use and maintenance.

Features:

Two ammeters, can supervise different measurement range.
With indicator lighting and button, easy to operate
Primary Current Injection Tester has incorporated and dividable structure, easy to move.
Capacity is designed based on 5-minute short-term work system. For intermittent work, working time should be less than 2.5 minutes, before continuing to work it should be shut down for 10 minutes so that all parts of the machine can cool down.

Specifications:

1	Output voltage	AC 0V~100KV
2	Rate of voltage rise	0.5kv/s±5%, 2kv/s±5%, 3kv/s±5%,5kv/s±5%
3	Max test times setting for user-defined mode	9
4	Stir time setting for user-defined mode	0~999s
5	Waiting time setting for user-defined mode	0~999s
6	Test error	3%RDG+0.3%FS
7	Display	256´128 LCD
8	Maximum storage capacity	100 groups of test data
9	Power supply	AC220V±10%, 50Hz/60Hz
10	Working environment	0-50℃, ≤80%RH
11	Size	620430mm330mm
12	Weight	41kg

SLQ 500A to 10kA Single Phase Primary Current Injection Tester 0
