Advanced Instruments Co.,Limited
To Be Advanced in Quality and Service!
| Place of Origin: | China |
|---|---|
| Brand Name: | AI |
| Certification: | ISO |
| Model Number: | GHP |
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiable |
| Packaging Details: | Carton |
| Delivery Time: | 15 days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 100000 sets per month |
| Power Supply: | AC220V±10%, 50Hz/60Hz | Display: | Digital |
|---|---|---|---|
| Maximum Output Voltage: | 50kv/100kv/150kv/200kv/250kv | Output Capacity: | 3kva/5kva/10kva/20kva/30kva/50kva/100kva/150kva/200kva |
| Warranty: | 1 Year | Keyword: | Power Frequency Withstand Voltage Test Set,SF6 Gas Hipot |
| Insulation Material Of Transformer: | SF6 Gas | HV Transformer Mode: | Single Phase |
| Highlight: | Hi-pot Test Kit,Power Frequency Withstand Voltage Tester,Withstand Voltage Tester |
||
I. Introduction:
Hipot test set is applied to test the insulation ability of electric power equipments and insulation materials at power frequency high voltage. The insulation test result of the tester is go or not go. Also the HIPOT test set is a universal power source in HV test. The maximum output voltage and capacity could be customized according the requirements of custom.

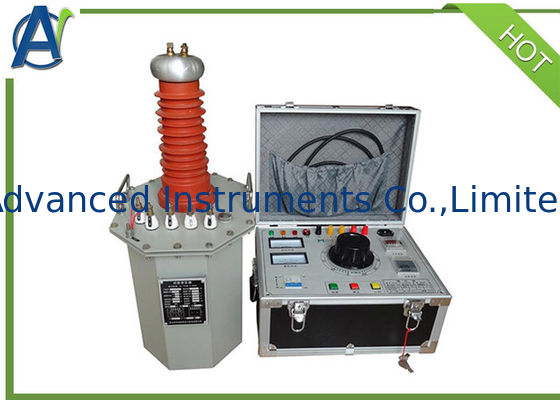

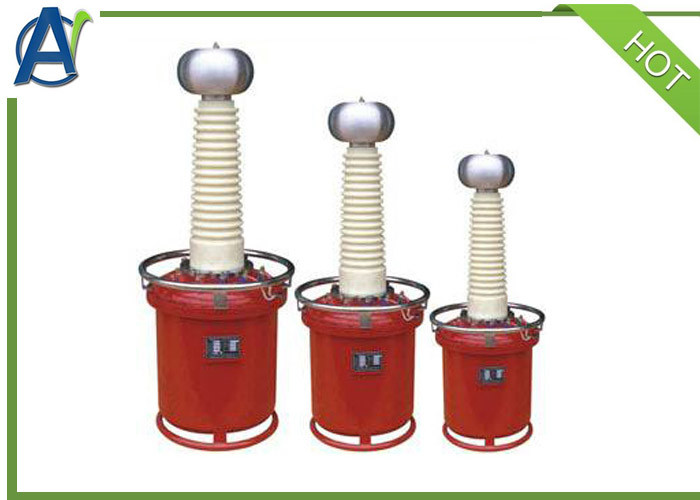

The tester is consists of single HV transformer and main control box. There are three kinds of HV transformer according to the insulation materials of the HV transformer. They are dry HV transformer,oil HV transformer and SF6 gas HV transformer. For the dry HV transformer the insulation material is epoxy resin. For oil HV transformer the insulation material is insulation oil. For SF6 HV transformer the insulation material is SF6 gas.The dry HV transformer has a smaller size and less weight than oil HV transformer. But the maximum output voltage is less than 100kv for dry HV transformer. The functions of the main control box are voltage output regulation, protection in emergency and voltage/current value indication.
II. Specifications:
AC 220V 50Hz/60Hz for transformers which the capacity less than 10kva
AC 380V 50Hz/60Hz for transformers which the capacity more than 10kva
2) HV transformer mode: single phase
3) Maximum output voltage: 50kv/100kv/150kv/200kv/250kv optional
4) Output capacity: 3kva/5kva/10kva/20kva/30kva/50kva/100kva/150kva/200kva optional
5) Voltage read mode: analog or digital, direct HV voltage reading form voltmeter
6) Current read mode: analog or digital, direct LV circuit current reading from amp meter
7) Protection mode: LV circuit over current protection
8) Voltage adjust mode: manual regulation
9) Rated frequency: 50Hz/60Hz
10) Automatic zero position lock unit to avoid wrong operation in HV output
11) Work temperature: 0~50degree
12) Work humidity: <80%
| Model |
Max output capacity (KVA) |
Max high voltage output (KV) |
Max current in hv circuit (MA) |
Voltage current input of voltage booster(V) |
Voltage current input of voltage booster (A) |
Ratio |
| GHP-5/50 | 5 | 50 | 100 | 200 | 25 | 500 |
| GHP-10/50 | 10 | 50 | 200 | 220/380 | 50/26 | 500 |
| GHP-20/50 | 20 | 50 | 400 | 380 | 53 | 500 |
| GHP -30/50 | 30 | 50 | 600 | 380 | 79 | 500 |
| GHP-40/50 | 40 | 50 | 800 | 380 | 105 | 500 |
| GHP -50/50 | 50 | 50 | 1000 | 380 | 132 | 500 |
| GHP -5/100 | 5 | 100 | 50 | 200 | 25 | 1000 |
| GHP -10/100 | 10 | 100 | 100 | 200/380 | 50/26 | 1000 |
| GHP-20/100 | 20 | 100 | 200 | 380 | 53 | 1000 |
| GHP-30/100 | 30 | 100 | 300 | 380 | 79 | 1000 |
| GHP-40/100 | 40 | 100 | 400 | 380 | 105 | 1000 |
| GHP-50/100 | 50 | 100 | 500 | 380 | 132 | 1000 |
| GHP -100/100 | 100 | 100 | 100 | 500 | 263 | 1000 |
| GHP-150/100 | 150 | 100 | 1500 | 500 | 300 | 1000 |
Note:The capacity and maximum voltage output could be customized according to the requirements if you can not find the right one in this table;
The weight listed in the table is HV transformer only,and it does not include the weight of main control box. Please confirm the total weight of AC or AD/DC hipot test set with our sales before order.
