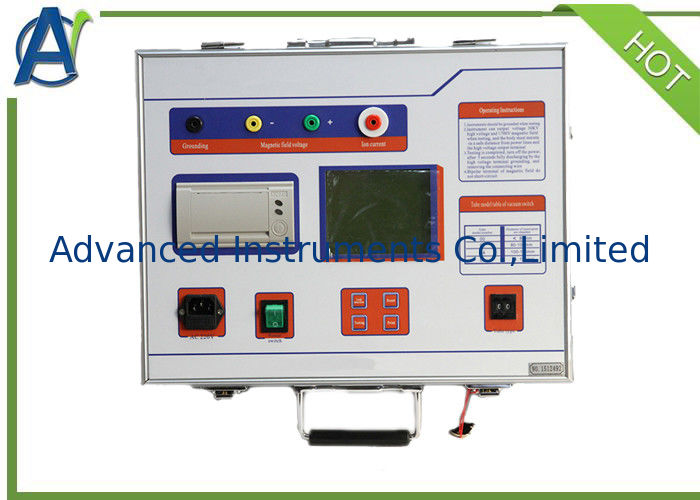

Digital IEC 62271 Loop Resistance Tester for Automatic Switchgear

Basic Information

Place of Origin:	China
Brand Name:	AI
Certification:	ISO9001
Model Number:	CRT

Minimum Order Quantity:	1 set Loop Resistance Tester
Price:	Negotiable
Packaging Details:	Loop Resistance Tester packed in veneer case
Delivery Time:	15 days
Payment Terms:	Western Union, T/T, L/C

Get Best Price Contact Now

Functions:	Test Loop Resistance Of Switchgear, Switchgear IEC62271 Loop Resistance Tester	Test Current:	100A, 200A, 400A, Etc.
Reference Standard:	IEC62271	Measuring Range:	0-1999.9 μΩ
Size:	340mm× 280mm × 210mm	Weight:	18kg
Warranty:	1 Year
Highlight:	IEC 62271 , Loop Resistance Tester , Digital Loop Resistance Tester

Introduction:

Loop Resistance Tester is used to test the contact resistance of circuit breaker or high current cable contacts.
It is designed according to IEC62271.
The main application of it is measurement of circuit breaker contact resistance.
All the test results of the tester could be print by the micro-printer which is integrated in the tester.
Also all the test results saved in it could be upload to PC computer and then convert to MS WORD document.

Features:

All the test results of Loop Resistance Tester could be printed by the micro-printer which is integrated in the tester.
All the test results saved in the tester could be uploaded to PC computer and converted to an MS WORD document.
Functions: Contact resistance measurement, Result print, Unload data to PC.

Specifications:

1	Measuring range	0-1999.9 μΩ Resolution:0.1 μΩ
2	Measuring current	DC 100A, 200A, 400A, 600A for choice
3	Measuring precision	0.5 %RGD+0.05%FS
4	Display mode	LCD
5	Data storage	Save no more than 100 groups of data
6	Data connection	RS232 computer interface
7	Rated power supply	AC220V
8	Size	340mm× 280mm × 210mm
	Weight	<18kg
9	Environment temperature	-10 ℃~+40 ℃
10	Relative humidity	<80%
