Place of Origin: | Made in China |
---|---|
Brand Name: | AI |
Certification: | ISO |
Model Number: | CPT-I |
Minimum Order Quantity: | 1 unit Comprehensive CT and PT Analyzer |
Price: | negotiable |
Packaging Details: | Comprehensive CT and PT Analyzer packed in Wooden Case |
Delivery Time: | 15 business days |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability: | 100 units per month |
CT Analyzer: | Tests For Current Transformer | PT Analyzer: | Tests For Voltage Transformer |
---|---|---|---|
CT / PT Test Standards: | IEC60044-1, IEC60044-6, IEC60044-2, IEC60044-5, C57.13 | Power Supply: | AC220V±10%, 50/60Hz±10% |
Voltage Output: | 0.1~180V (AC) | Current Output: | 0.001~5A(RMS) |
Power Output: | 500VA | Maximum Knee Voltage Measurement: | 45KV |
Current Measurement: | 0~10A | Voltage Measurement: | 0~200V |
Turns Ratio Test: | 1~35000 | Phase Measurement: | Error: ±2min; Resolution: 0.01min |
Highlight: | CT and PT Analyzer,CT PT Analyzer,Current and Voltage Transformer Testing |

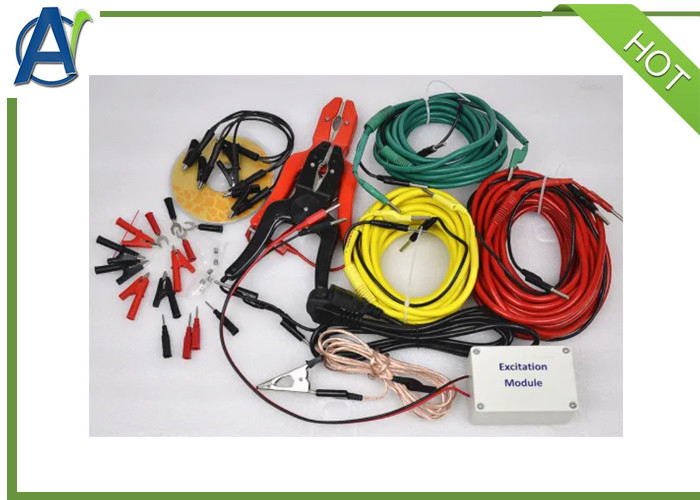

Comprehensive CT and PT Analyzer
CT / PT Analyzer:is used to measure all kinds of current transformer and voltage transformer. It can calculate the ratio errors and phase angle errors of current transformer and voltage transformer at rated burden and working burden in one time test. The tester can automatically evaluate the test results according to the selected standard to determine whether the transformer is qualified.
Function and Application:
Applications:
Tests for current transformer:
1) Excitation curve and parameters test
2) Turns ratio test
3) Ratio and phase error test
4) Polarity mark check
5) Winding resistance measurement
6) Secondary loop burden measurement
7) Error line curve test for protection CT
8) Transient CT parameters test
9) CT nameplate guess
10) Saturation hysteresis loop curve measurement
Tests for voltage transformer:
1) Turns ratio test
2) Ratio error and phase angle error test
3) Polarity test
4) Secondary burden test
5) Winding resistance test
Features:
1. Make evaluation for test results according to selected standards.
2. Make word report for test result.
3. Make word reports one time for multi-group test records on the PC.
4. Calculate the ratio errors and phase angle errors at rated burden and working burden in one time test.
5. Compare excitation curves with saved excitation curves in the same window.
Tecchnical specifications:
1) Test standards: IEC60044-1, IEC60044-6, IEC60044-2, IEC60044-5, C57.13
2) Power supply: AC220V±10%, 50/60Hz±10%
3) Voltage output: 0.1~180V (AC)
4) Current output: 0.001~5A(RMS)
5) Power output: 500VA
6) Maximum knee voltage measurement: 45KV.
7) PT ratio error measurement: typical error <0.05%, maximum error<0.1%
8) PT phase angle measurement: maximum error < 3min
9) Memory capacity: >1000 groups test results
10) Working condition: temperature: -10℃~50℃, humidty: ≤90%
11) Size: 485mm×356mm×183mm, weight: <15kg
Range | Error | Resolution | |
Current measurement | 0~10A (automatically change range in 0.1/0.4/2/10A) | <±0.1%+0.01%FS | / |
Voltage measurement | 0~200V (automatically change range in 1V/10V/70V/200V) |
<±0.1%+0.01%FS | / |
Turns ratio measurement | 1~5000 | <0.05% | / |
5000~35000 | <0.1% | / | |
Phase measurement | / | ±2min | Resolution: 0.01min |
Winding resistance measurement | 0~8kΩ (automatically change range in 2ohm/20ohm/80ohm/800ohm/ 8kohm) |
<0.2%RDG+0.02%FS | Maximum resolution: 0.1mΩ |
Temperature measurement | -50~100 Celsius degree | <3 Celsius degree | / |
CT Secondary burden | 0~160ohm (automatically change range in 2ohm/20ohm/80ohm/ 160ohm) |
<0.2%RDG+0.02%FS | Maximum resolution: 0.001ohm |
PT Secondary burden | 0~80kohm (automatically change range in 800ohm/8kohm/80kohm) |
<0.2%RDG+0.02%FS | Maximum resolution: 0.1ohm |
PT ratio measurement | 1~10000 | <0.1% | / |
10000~35000 | <0.2% | / |
