| Place of Origin: | China Mainland |
|---|---|
| Brand Name: | AI |
| Certification: | ISO9001 |
| Model Number: | TDT |
| Minimum Order Quantity: | 1 full set Dissipation Factor and Capacitance Tester |
| Price: | Negotiable |
| Packaging Details: | Dissipation Factor and Capacitance Tester packed in standard exporting case |
| Delivery Time: | 15 working days |
| Payment Terms: | Western Union, , T/T, L/C |
| Supply Ability: | 100 sets/months |
| Functions: | It Can Also Supply High Voltage Source For Testing | Applicable Transformer: | All Kinds Of Transformer, All Kinds Of High Voltage Electrical Equipment |
|---|---|---|---|
| High Voltage Output: | 10kV Or 12kV | Frequency: | Automatic Double Frequency, 45HZ/55HZ 47.5HZ/52.5Hz 55HZ/65HZ 57.5HZ/62.5H |
| Dimension: | 350（L）×270（W）×270（H） | Weight: | 28kg |
| Warranty: | One Year | Color: | Black |
| Highlight: | Dissipation Factor Tester,Capacitance Tester,Dissipation Factor and Capacitance Tester |
||

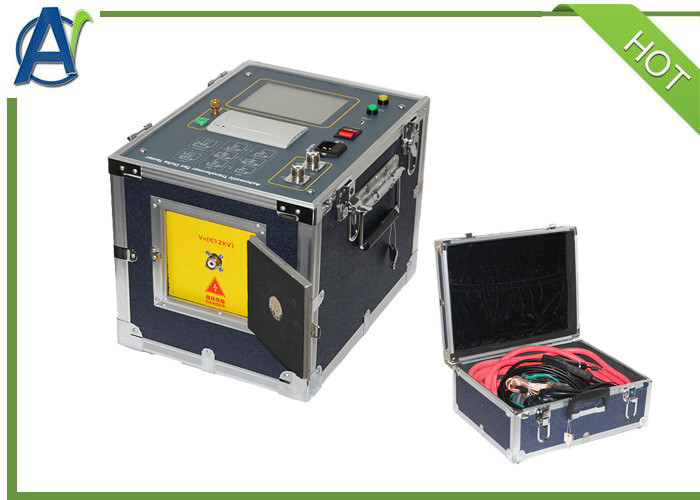

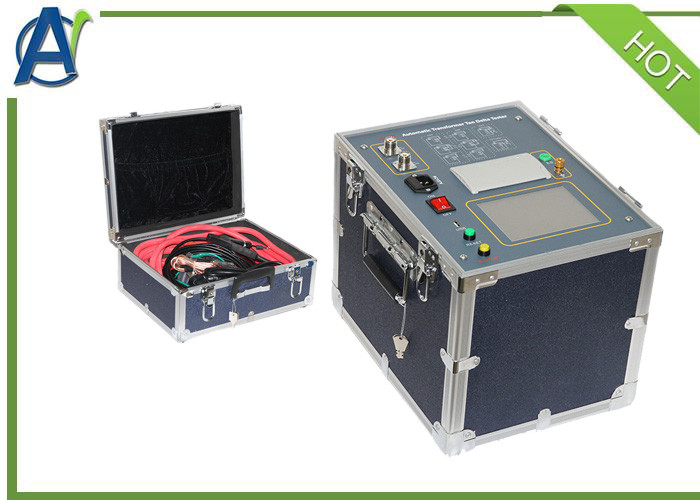

Dissipation Factor and Capacitance Tester is a high-precision instrument, which can be applied to measure electrical loss tangent and capacitance of all kinds of high voltage electrical equipment in power plants, substations, laboratory, etc.
Dissipation Factor and Capacitance Tester is composed of a dielectric loss test bridge, a variable frequency power supply, a step-up transformer and a SF6 high stability standard capacitor, it is integrated structure;
Dissipation Factor and Capacitance Tester can also supply high voltage source for testing.
Frequency can be changed to 50Hz, 47.5Hz52.5Hz, 45Hz55Hz, 60Hz, 57.5Hz62.5Hz, 55Hz65Hz; thus, it can avoid interference of power frequency;
Specifications:
|
1 |
Use conditions |
-15℃∽40℃ |
RH＜80% |
|
2 |
Anti-interference |
Frequency conversion |
|
|
3 |
Power |
AC 220V±10% |
Allowable generator |
|
4 |
High output |
0.5KV∽10KV |
Every 0.1kV |
|
|
|
Precision |
2% |
|
|
|
Maximum current |
200mA |
|
|
|
Capacity |
2000VA |
|
5 |
Self-excited power |
AC 0V∽50V/15A |
45HZ/55HZ 47.5HZ/52.5Hz 55HZ/65HZ 57.5HZ/62.5H Automatic double frequency |
|
6 |
Resolving power |
tgδ: 0.001% |
Cx: 0.001pF |
|
7 |
Precision |
△tgδ:±(Reading*1.0%+0.040%) |
|
|
|
|
△C x :±(Reading*1.0%+1.00PF) |
|
|
8 |
Measuring range |
tgδ |
Unlimited |
|
|
|
C x |
15pF ＜ Cx ＜ 300nF |
|
|
|
10KV |
Cx ＜ 60 nF |
|
|
|
5KV |
Cx ＜ 150 nF |
|
|
|
1KV |
Cx ＜ 300 nF |
|
|
|
CVT test |
Cx ＜ 300 nF |
|
9 |
CVT range |
10∽10000 |
|
|
|
accuracy |
0.1% |
|
|
|
Resolving power |
0.01 |
|
|
10 |
Exterior dimension |
350(L)×270(W)×270(H) |
|
|
11 |
Memory size |
The 200 group supports U disk data storage |
|
|
12 |
Weight |
28 Kg |
|
Features:
Dissipation Factor and Capacitance Tester is equipped with a high-end full touch LCD screen, super touch interface, each process is very clear, the operator does not need additional professional training can be used. It is a ideal intelligent equipment for measuring dielectric loss.
Dissipation Factor and Capacitance Tester is equipped with a calendar chip and large capacity memory, the test results can be stored, you can review the results at any time, and can print it out.
Dissipation Factor and Capacitance Tester has high pressure, high voltage, standard, positive connection method and reverse connection method, self excitation method and other methods as optional; high voltage in standard high voltage conditions (greater than 10kV) dielectric loss.
Dissipation Factor and Capacitance Tester can also test the full sealed CVT (capacitor voltage transformer) C1, C2 dielectric loss and capacitance, to achieve the C1, C2 simultaneous test. The instrument can also test the CVT ratio and voltage angle difference.
Dissipation Factor and Capacitance Tester can accurately measure the dielectric loss and capacitance of CVT without dismantling the CVT high voltage lead.
Dissipation Factor and Capacitance Tester can be used to measure the dielectric loss and capacitance value of C0 on the upper end of CVT.
The inverter and sampling circuit of the instrument are all controlled by digital, and the output voltage is adjustable continuously.
The instrument has many protection measures, such as input voltage fluctuation, output short circuit, over voltage, over current and temperature. The instrument also has the grounding detection function to ensure that no grounding equipment is not allowed to boost.
