Place of Origin: | China |
---|---|
Brand Name: | AI |
Certification: | ISO |
Model Number: | CRT-I |
Minimum Order Quantity: | 1 Set 100A Contact Resistance Test Set |
Price: | Negotiable |
Packaging Details: | 100A Contact Resistance Test Set paced in Plywood case |
Delivery Time: | 15 days |
Payment Terms: | T/T, Western Union, L/C |
Supply Ability: | 100000 sets per month |
Power Supply: | AC220V±10%, 50Hz/60Hz | Display: | LCD |
---|---|---|---|
Measuring Range: | 0-1999.9 μΩ | Measuring Current: | DC 100A |
Warranty: | 1 Year | Keyword: | Contact Resistance Test Set |
Test Standard: | IEC 62271 | Format Of Report: | Word |
Highlight: | Contact Resistance Test Set,100A Contact Resistance Test,Circuit Breaker Test |
Introduction:
Contact resistance test set is used to test the contact resistance of circuit breaker or high current cable contacts.
It is designed according to IEC62271.
The main application of the contact resistance test set is measurement of circuit breaker contact resistance.
All the test results of contact resistance test setcould be print by the micro-printer which is integrated in the tester.
Also all the test results saved in the contact resistance test set could be uploaded to PC computer and then convert to MS WORD document.
Features:
Rapid test;
Result print;
Upload data to PC;
Specifications:
1 | Measuring range | 0-1999.9 μΩ Resolution:0.1 μΩ |
2 | Measuring current | DC 100A |
3 | Measuring precision | 0.5 %RGD+0.05%FS |
4 | Display mode | LCD |
5 | Data storage | Save no more than 100 groups of data |
6 | Data connection | RS232 computer interface |
7 | Rated power supply | AC220V |
8 | Size | 340mm× 280mm × 210mm |
9 | Environment temperature | -10 ℃~+40 ℃ |
10 | Relative humidity | <80% |
Package List
Name | Quantity | Name | Quantity |
Main unit | 1unit | Disk | 1unit |
9m test cable | 1set | Instruction manual | 1unit |
Power supply cable | 1unit | Inspection report | 1unit |

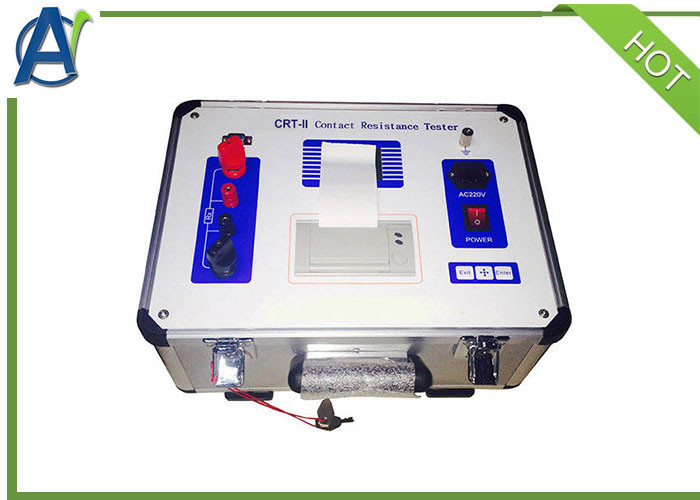

Picture of 100A Low Contact Resistance Test Set(The panel of 100A and 200A is same)
