Advanced Instruments Co.,Limited
To Be Advanced in Quality and Service!
| Place of Origin: | China |
|---|---|
| Brand Name: | AI |
| Certification: | ISO |
| Model Number: | ZKD |
| Minimum Order Quantity: | 1 Set Vacuum Bottle Integrity Test Instrument |
| Price: | Negotiable |
| Packaging Details: | Vacuum Bottle Integrity Test Instrument packed in Plywood case |
| Delivery Time: | 15 days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 100000 sets per month |
| Power Supply: | AC220V±10% 50Hz±10% | Display: | LCD |
|---|---|---|---|
| Keyword: | Vacuum Interrupter Tester | Measuring Range: | 10-5~10-1 Pa |
| Agnetic Field Voltage: | 1700V | Warranty: | 1 Year |
| Test Method: | New Excitation Coil | Test Object: | Vacuum Switchgears |
| Highlight: | Vacuum Bottle Test Instrument,Interrupter Test Instrument,Vacuum Bottle Integrity Test |
||
ZKD Vacuum Bottle Integrity Test Instrument for vacuum interrupter is the latest generation of products of my company, it has many advantages,such as high measurement accuracy, better stability, more capacity.
For vacuum circuit breaker, the method of determining deterioration of the vacuum tube is frequency withstand voltage, but this method only distinguish the vacuum interrupter arc chamber of the serious deterioration. When the vacuum of vacuum interrupter arc chamber degrade to 10 -2 -10 -1 Pa, although the breakdown voltage is not reduced, but the interrupter arc chamber has failed. In this vacuum bottle tester for vacuum switch, the new field coils were used, and with the magnetron discharge method the vacuum of the vacuum 3 3 / 9 9 interrupter arc can be measured without disassembling the interrupter arc chamber. At the same time, ZKD Vacuum Bottle Integrity Tester also uses computer for synchronous control, data acquisition and processing, and the sensitivity of vacuum bottle tester in the field test of the vacuum interrupter arc chamber is 10 -5 Pa.
The most prominent feature of this vacuum degree tester is to use the new excitation coils and data processing methods to achieve the non-demolition measurement of vacuum. The tester is practical, easy to use, easy to operate, high precision measurement without disassembly, widely used in electric power, steel, petrochemical, textile, coal, railways, and other trades using the vacuum switch.
| 1 | Test object | Vacuum switchgears |
| 2 | Test method |
new excitation coil and detect vacuum tube without disassembly |
| 3 | Measuring range |
10-5~10-1 Pa |
| 4 | Measurement accuracy | 10 -5 -10 -4 Pa, 10% 10 -4 -10 -3 Pa, 10% 10 -3 -10 -2 Pa, 10% 10 -2 -10 -1 Pa, 10% |
| 5 | Magnetic field voltage |
1700V |
| 6 | High-voltage of pulsed electric field |
30KV |
| 7 | Open distance of switch tube in vacuum test |
normal |
| 8 | Size | 420 × 320 × 280 (mm) |
| 9 | Weight | 12KG |
| 10 | Working environment | -20℃~ 40℃ |
| 11 | Sampler | Magnetic coil |
Spares of Vacuum Interrupter Vacuum Bottle Integrity Test Instrument

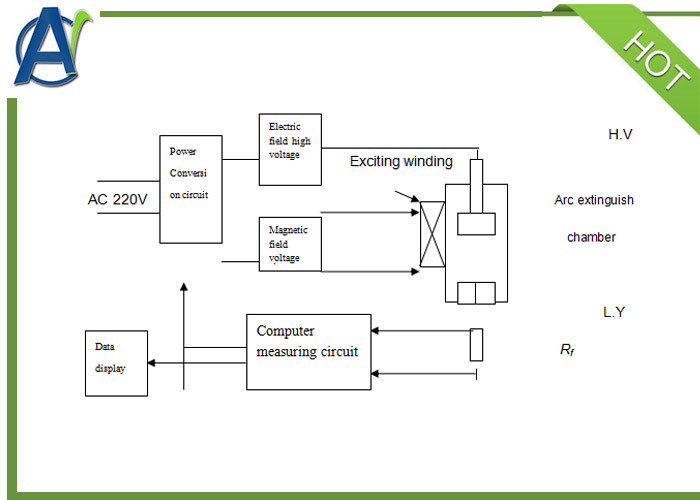

Magnetic control discharge method arc distinguish chamber vacuum degree test circuit
