| Place of Origin: | China |
|---|---|
| Brand Name: | AI |
| Certification: | ISO |
| Model Number: | CBA-II |
| Minimum Order Quantity: | 1 Set Dynamic Characteristics Test Kit |
| Price: | Negotiable |
| Packaging Details: | Dynamic Characteristics Test Kit packed in Plywood case |
| Delivery Time: | 15 days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 1000 sets per month |
| Power Supply: | AC220V±10% 50Hz±10% | Keyword: | Dynamic Characteristics Test Kit |
|---|---|---|---|
| Weight: | 7KG | Size: | 460X340X200 Mm3 |
| Warranty: | 1 Year | Peed Measure Range: | 0~20m/s |
| Travel Range: | < 250mm | Time Range: | 0~6s |
| Highlight: | Dynamic Characteristics Test Kit,Circuit Breaker Test Kit,High Voltage Circuit Breaker Test |
||

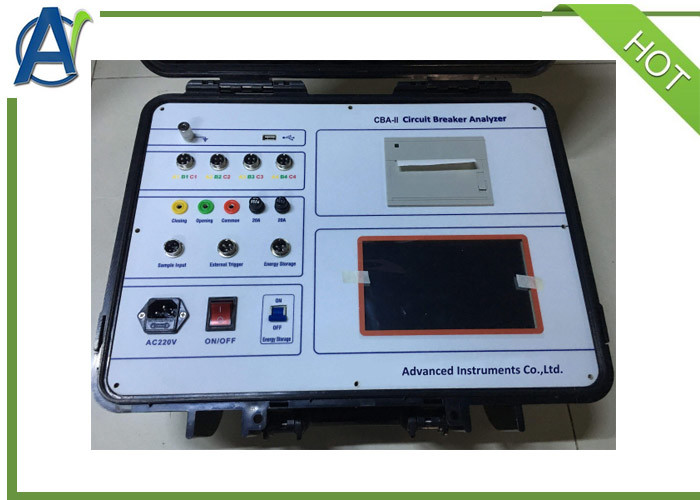

CBA-II Circuit Breaker Test Kit is designed to meet the need of onsite test the dynamic characteristics of High-Voltage Circuit Breakers . It takes the ARM7 unit for core to sample, process and output; the main characteristic is that it’s operated in alt. It has many advantages such as intelligence, multi-function, accurate data, strong anti-jamming, easy operation, small size, light weight ,beautiful appearance, etc.
It can test the Circuit Breakers as following: indoors or outdoors Circuit Breakers with less oil or more oil, vacuum Circuit Breakers, SF6 Circuit Breakers and so on.
III.Technical specifications
| 1 | Time | Simultaneity measure Contacts:≤12 range:0~6s resolution ratio:0.01ms |
| 2 | Travel | range:< 250mm resolution ratio:0.01mm |
| 3 | Error | Time measure error:±0.5% Travel measure error:±1mm |
| 4 | Speed measure range | 0~20m/s |
| 5 | Internal Power | Output Voltage:30V~260V error:1% Output Current:0～20A |
| 6 | Operating condition | Operating voltage:AC220V±10 % Frequency:50Hz Power dissipation:≤60w Ambient temperature:0~40℃ Ambient humidity:≤90%RH |
| 7 | Size | 460X340X200 mm3 |
| 8 | Weight | 7kg |

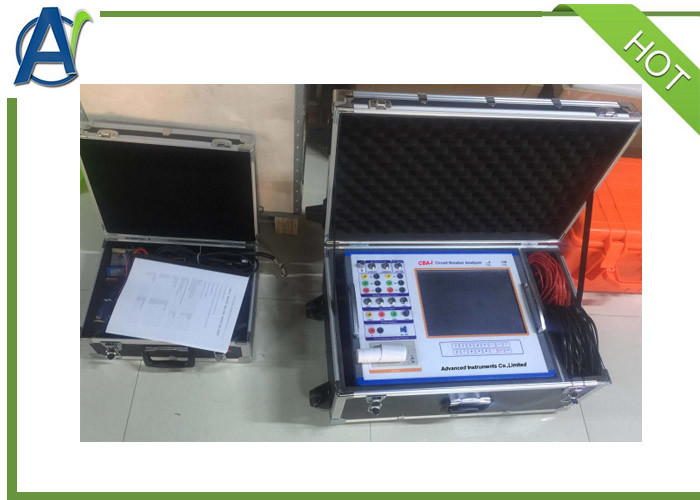

Package List of CBA-II Dynamic Characteristics of High-Voltage Circuit Breaker Test Kit
| CBA-II Circuit Breaker Test Kit | 1 unit |
| Seniors | 1 set |
| User manual | 1 copy |
| Test cables | 1 set |
