| Place of Origin: | China |
|---|---|
| Brand Name: | AI |
| Certification: | ISO |
| Model Number: | RTS |
| Minimum Order Quantity: | 1 Set HV Resonant Test Equipment |
| Price: | Negotiable |
| Packaging Details: | HV Resonant Test Equipment packed in Plywood case |
| Delivery Time: | 15 days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 100 sets per month |
| Power Supply: | 380V±10%, Three-phase 50Hz/60Hz | Max Voltage Output: | 0~1000KV |
|---|---|---|---|
| Max Output Capacity: | 0~6400KVA | Test Frequency Range: | 30~300HZ |
| Warranty: | 1 Year | Keyword: | HV Resonance Test System |
| Test Voltage Waveform: | Sine Wave,waveform Deviation Factor : ≤1% | Color: | Red |
| Highlight: | HV Resonant Test,HV Resonant Test Equipment,Electrical Test Instrument |
||
Introduction
HV Resonance Test Instrument is applied to testing the insulation ability of insulation materials in power equipment. The frequency of test voltage is adjustable which would lead to series resonance in testing circuit. Both the conductors connected in test circuit in series and the capacitors connected in test circuit in parallel are also adjustable. That makes the resonance test system is widely applied in GIS, Power cable and generator insulation testing.
Technial specifications
| 1 | Max voltage output | 0~1000KV |
| 2 | Max output Capacity | 0~6400KVA |
| 3 | Test frequency range | 30~300HZ |
| 4 | Frequency setting resolution | 0.1HZ |
| 5 | Test voltage waveform | sine wave,waveform deviation factor : ≤1% |
| 6 | Power supply | 380V±10%, three-phase 50Hz/60Hz |
| 7 | Environment condition | Temperature: 0~50℃ |
| 8 | Humidity | ≤ 80%RH |

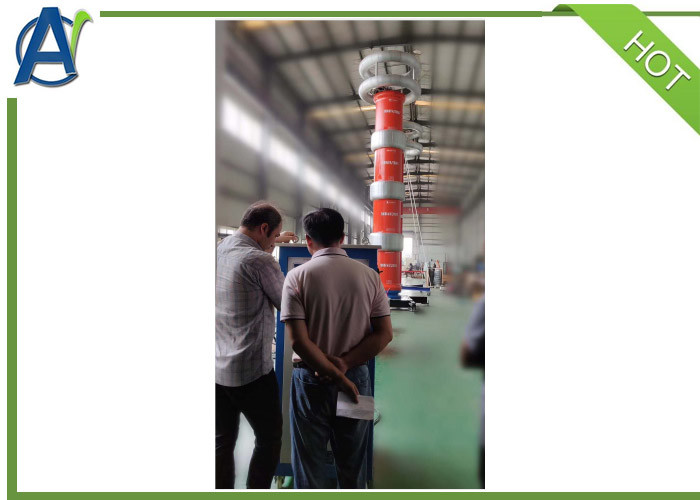

Inspection of HV Resonance Test Instrument by our client
