| Place of Origin: | CHINA |
|---|---|
| Brand Name: | AI |
| Certification: | ISO |
| Model Number: | AIC-713 |
| Minimum Order Quantity: | 1 SET NES 713 Smoke Toxicity Apparatus |
| Price: | negotiable |
| Packaging Details: | NES 713 Smoke Toxicity Apparatus packed in Plywood case |
| Delivery Time: | 60 days |
| Payment Terms: | Western Union, T/T, L/C |
| Supply Ability: | 10 sets/motnh |
| Test Standard: | NES 713 | Power Supply: | AC220V ,50/60Hz, 10A |
|---|---|---|---|
| Gas: | Methane, Propane Gas (optional) | Size: | 1,185(W)×700(D)×2,100(H)mm |
| Weight: | 150kg | Keyword: | Smoke Toxicity Index Test Chamber Apparatus |
| Warranty: | 1 Year | Color: | Black And White |
| Highlight: | Smoke Toxicity Test Chamber,Smoke Toxicity Apparatus,NES 713 Smoke Toxicity Apparatus |
||
Products:
This apparatus is designed according to NES 713 standard,and the test chamber is used for testing the combustion characteristic of the material.
It is suitable for color tube method or portable flue gas analyzer to measure the material after burning smoke toxicity.
Standard:
• NES 713:determination of the toxicity index of the products of combustion from small specimens of material.
Main features:
• Flame chamber is made of stainless steel, the tank wall is fireproof polypropylene, seamless welding, interior space is 0.7m³.
• Cabinet door is easy to clean, transparent polycarbonate sheets.
• Smoke Toxicity Index Test Chamber Apparatus uses automatically spark ignition gas nozzle system, if the flame goes out, it can automatically re-ignite
• Timer control, automatic ignition and ignition off automatically.
• The apparatus is equipped with 15 sample positions that can be used for colorimetric reaction with gas pipes or othergas .

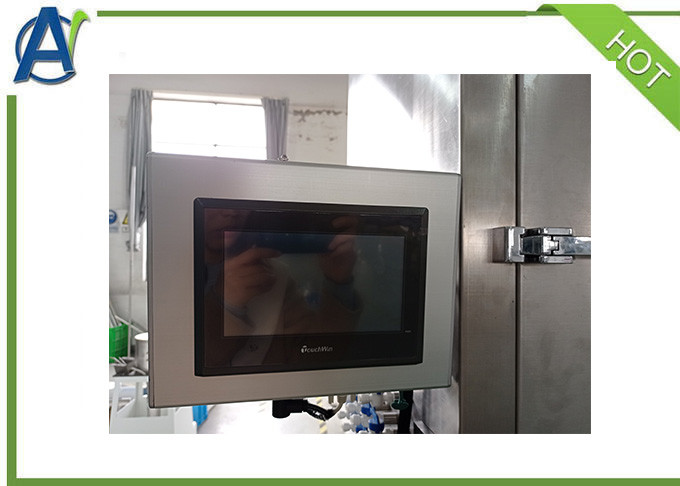

• Independent control box withmeter, timer, methane and air controllers.
• Powerful ventilation system under the system control automatically to exclude fumes generated during the test when the test is completed.
• With fan that can quickly mix combustion.
• Combustion testing process can progress through reinforced plastic observation window observation test combustion
• Door lock device is facilitately to open the box.
• Manual / automatic test mode can be selected freely.
• Automatic cycle mode, the gas generated by the combustion cycle apparatus under control timer control.
Specification:
| Size | 1,185(W)×700(D)×2,100(H)mm |
| Power | AC220V ,50/60Hz, 10A |
| Weight | About 150kg |
| Exhaust | 50L/s |
| Auxiliary | Compressed air, vacuum cleaners, methane, propane gas (optional) |
