Advanced Instruments Co.,Limited
To Be Advanced in Quality and Service!
| Place of Origin: | CHINA |
|---|---|
| Brand Name: | AI |
| Certification: | ISO |
| Model Number: | MMS |
| Minimum Order Quantity: | 1 SET Molten Metal Splashes Impact Test Apparatus |
| Price: | Negotiable |
| Packaging Details: | Molten Metal Splashes Impact Test Apparatus packed in Plywood case |
| Delivery Time: | 60 days |
| Payment Terms: | Western Union, T/T, L/C |
| Supply Ability: | 200 sets per month |
| Test Standard: | EN 348 And ISO 9150 | Gas Supplies: | Oxygen And Acetylene |
|---|---|---|---|
| Weight: | 42KG | Warranty: | 1 Year |
| Size: | 500mm（W）X 700mm（H）X 500mm（D） | Power Supply: | 230V AC 50Hz, 10A |
| Test Object: | Protective Clothing | Color: | White |
| Highlight: | EN 348 test,EN 348 apparatus,Molten Metal Splashes Impact Test |
||
Catalogs for EN 373&348&6942&367&702.pdf
Projections of molten metal drops at a point on a vertical oriented test specimen and measurement of the number of the drops required to cause a 40 K temperature rise in a sensor behind the specimen.
Drop guide to collect the drops and to guide them towards the vertically oriented test specimen.
Senor for measuring the temperature linked to a recording device.

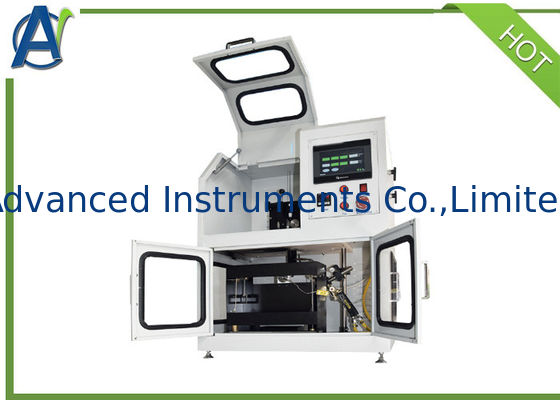

This Molten Metal Splashes Impact Test Apparatus has holding frame and counterweights for the test specimen.
Motor speed can be adjust so that the steel rod is fed at the rate of (10 f 1) g/mm.
Needle valves adjust the O2 and acetylene flow rate.
The Molten Metal Splashes Impact Test Apparatus adopts LCD Screen display and control the motor speed.
| Electrical | 230 volts Nominal 10 Amps |
| Ambient Temperature | Operating25±5℃ |
| Gas supplies | Oxygen and acetylene |
| Dimensions |
500mm(W)X 700mm(H)X 500mm(D) |
| Weight | 42KG |
| Applicable standards | EN 348 and ISO 9150 |
