| Place of Origin: | China |
|---|---|
| Brand Name: | AI |
| Certification: | ISO9001 |
| Model Number: | CHT |
| Minimum Order Quantity: | 1 set EN 702 Contact Heat Transmission Tester |
| Price: | Negotiable |
| Packaging Details: | Contact Heat Transmission Tester Packed in plywood case. |
| Delivery Time: | 40 days |
| Payment Terms: | Western Union, T/T, L/C, MoneyGram |
| Supply Ability: | 100 sets ISO 12127-1 Tester each month |
| Reference Standards: | EN 702, ISO 12127-1 | Application Field: | Safety Protection, Protective Clothing |
|---|---|---|---|
| Dimension: | 600(D) X 250(mm) X 650(mm) | Weight: | 55KG |
| Gas Supply: | Propane And Compressed Air | Power Supply: | 220V, 50Hz |
| Heating Temperature Range: | Ambient~500℃ | Contact Area Of Calorimeter: | ￠25±0.05×D5±0.02mm |
| Highlight: | EN 702 Flammability Test Equipment,Contact Heat Transmission Tester,EN 702 |
||
Introduction
This Contact Heat Transmission Tester is designed according to EN702 standard,and it can meet requirements of Chinese standard AQ6103-2007 Protective gloves for welders.The test results includes contact temperature,time of starting test,threshold time etc.
The principle is:under set contact temperature,the measuring protective fabric contacts heating column while bearing 49N pressure,the time of temperature raising 10℃ from initial temperature is threshold time,which is used to evaluate thermal protective property.
Standards:
EN 702:Protective clothing - Protection against heat and flame - Test method: Determination of the contact heat transmission through protective clothing or its materials;
ISO 12127-1:test method for the determination of contact heat transmission. It is applicable to protective clothing (including hand protectors) and its contituent materials intended to protect against high contact temperatures. Application of ISO 12127-1:2007 is restricted to contact temperatures between 100 °C and 500 °C.
Features

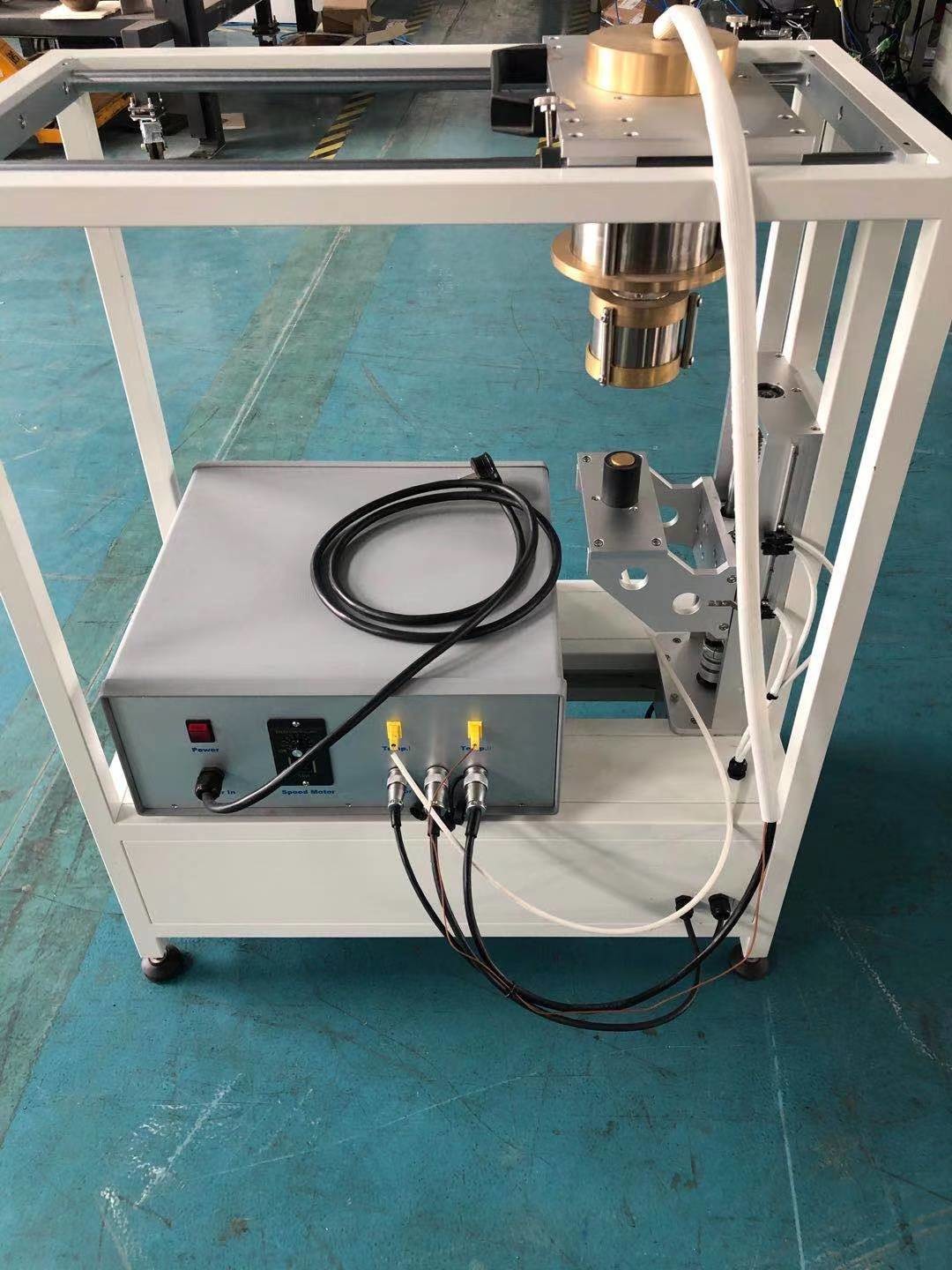

1. Contact Heat Transmission Tester adopts high temperature resisting metal heating element,contact diameter is ￠25.2±0.05 mm.
2. Heating temperature range is ambient~500℃,the HMI can show it directly.
3. Contact area of calorimeter is ￠25±0.05×D5±0.02mm,measuring range is not less than 500℃.
4. Contact force:49N,contact speed:5mm/s,calorimeter is controlled by Servo motor,which is automatic up and down.All test process are automatically controlled by program.
5. The platform of heating element can be moved horizontally,which is easy for put sample and make sure the operator’s safety.

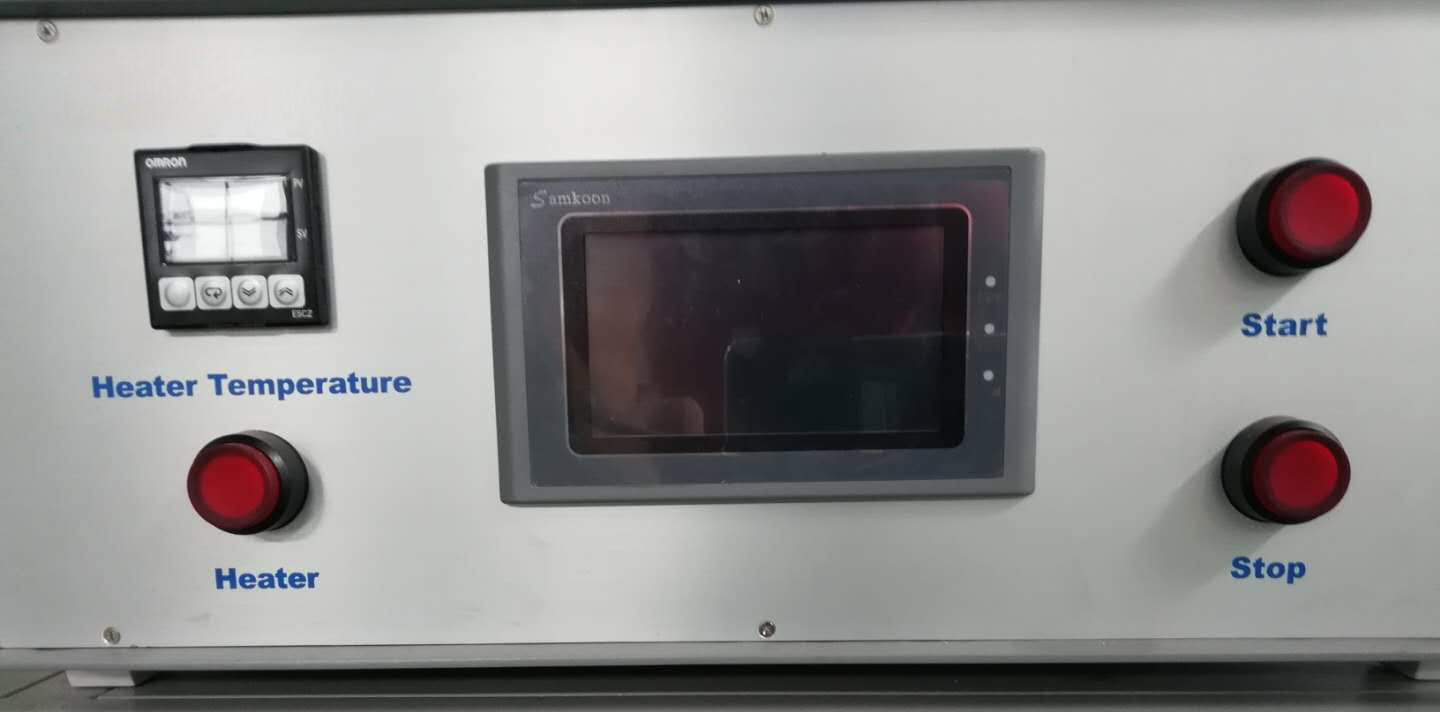

6. LCD display,PLC automatically records start time,threshold time,end temperature of threshold time,real-time temperature.
Introduction of main machined parts
| No. | Name | Craft |
| 1 | Contact heat source and measuring parts | Stainless steel or brass machined as per standard |
| 2 | Control cabinet | Customized by reputable cabinet factory |
| 3 | Other auxiliary facilities | Thickness of iron plate is 1.5mm ,seamless welded cabinet with baking finish for cars |
| 4 | Heater | Made in China |
| 5 | Auxiliary fixtures | Aluminum processing |
Main Components of Contact Heat Transmission Tester
| No, | Name | Remark |
| 1 | Operation method | Touch screen operation |
| 2 | Software | Designed by AIC |
| 3 | PLC | Delta DVP 16EC00T3 |
| 4 | Touch Screen | Weinview SK-043AE |
| 5 | Motor | Speed adjustable 5GU-90W/reinforced single phase |
| 6 | Screw pulley | Taiwan HIWIN |
| 7 | Temperature controller | Omron |
