Single Cable Vertical Flame Tester is used for the vertical flame propagation of a single insulated wire or cable is a bench scale test to determine the resistance of a single cable to a 1kW flame application. It conforms to IEC60332-1-2 (flame propagation) and IEC60332-1-3 (test for flaming droplets).
Stainless steel box, the height of 1300mm, width of 300mm, depth of 450mm.
Two stainless steel rods, can bind single wire cable or optical cable sample.
1KW mixed standard burner, can provide the standard test fire source.
Regulating gas and air flow rate of the rotor flow meters.
Pressure gauge and pressure relief valve to ensure that the pressure output is 0.1MPA.
Electric spark ignition device.
Flame height measuring tool.

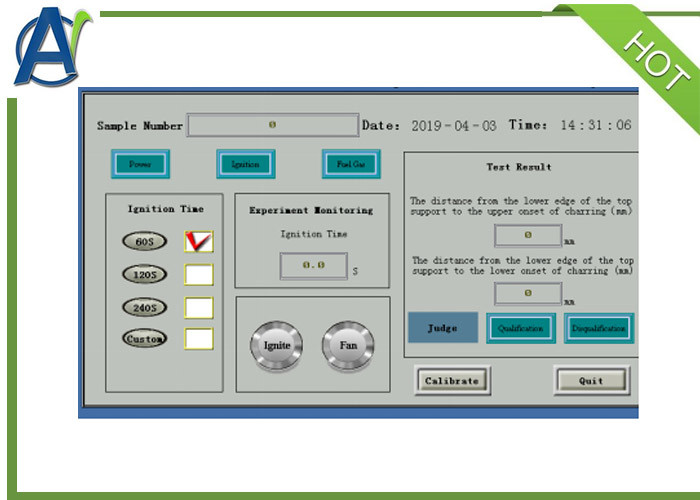

Up to four time modes can be selected according to different sample diameters.
Flame Propagation Testing Machine uses calibration kit for the testing flame.
110V AC 60Hz / 230V AC 50Hz
Operating 10°C to 35°C
air and propane
Pictures of EN 60332-1 Flame Propagation Test Equipment for a Single Insulated Cable with LCD and Fume Hood
