| Place of Origin: | CHINA |
|---|---|
| Brand Name: | AI |
| Certification: | ISO |
| Model Number: | XP-2 |
| Minimum Order Quantity: | 1 SET ASTM D2843 smoke density tester |
| Price: | negotiable |
| Packaging Details: | ASTM D2843 smoke density tester packed in Plywood case |
| Delivery Time: | 40 days |
| Payment Terms: | Western Union, T/T, L/C |
| Supply Ability: | 100 Sets per Month |
| Test Standard: | ASTM D2843 Smoke Density Test | Power Supply: | 110V AC 60Hz / 230V AC 50Hz |
|---|---|---|---|
| Ambient Temperature: | Operating 10°C To 35°C | Gas: | Propane |
| Operation: | Controlled By PC | Warranty: | 1 Year |
| Test Object: | Plastics | Application: | Assessment Of Density Of Smoke From The Burning Or Decomposition Of Plastics |
| Highlight: | ASTM D2843 smoke density tester,Density of Smoke Tester,ASTM D2843 tester |
||

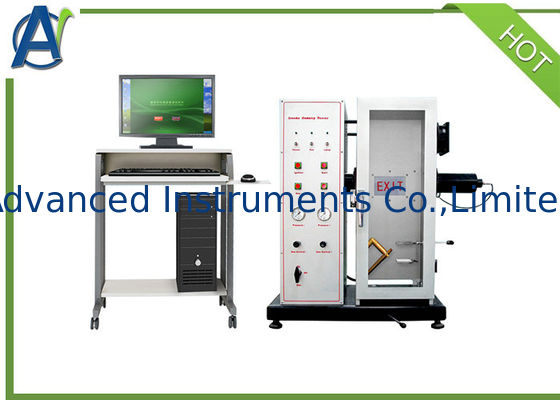

ASTM D2842 specifies the apparatus and methods of test for the assessment of density of smoke from the burning or decomposition of plastics. Smoke density tester can measure the smoke density of burning or decomposition of plastics.
The combustion chamber is made from stainless steel with Teflon coating, to maximize operating life.
Provided with two burners to ignite the sample and drip.
Smoke Obscuration - measured with an Incandescent lamp system, using photodiodes.
Density of Smoke Tester is provided with software to judge the testing results.
Records ignition and extinguishment time of flames. And the other test results are light transmission (%), Maximum smoke density (MSD) and Smoke density grade (SDR) and so on.
| 1 | Electrical | 110V AC 60Hz / 230V AC 50Hz |
| 2 | Ambient Temperature | Operating 10°C to 35°C |
| 3 | Gas | Propane |
| 4 | Size | 800 mm (W) x 500 mm (D) x 1000 mm (H) |
| 5 | Weight |
35KG |
