Place of Origin: | China |
---|---|
Brand Name: | AI |
Certification: | ISO |
Model Number: | AIC2571 |
Minimum Order Quantity: | 1 PC Earthing Resistance Tester |
Price: | Negotiable |
Packaging Details: | Earthing Resistance Tester packed in Carton |
Delivery Time: | 15 days |
Payment Terms: | T/T, Western Union, L/C |
Supply Ability: | 100000 sets per month |
Measuring Range: | 0-1.999Ω, 2-19.99Ω ,20-199.9Ω | Display: | Digital |
---|---|---|---|
Keyword: | Earthing Resistance Tester ,Grounding Resistance Meter | Weight: | 2KG |
Warranty: | 1 Year | Color: | White |
Dimension: | 200×200×110mm3 | Power Consumption: | ≤2W |
Highlight: | Earthing Resistance Tester,Earthing Resistance Meter,Grounding Resistance Meter |

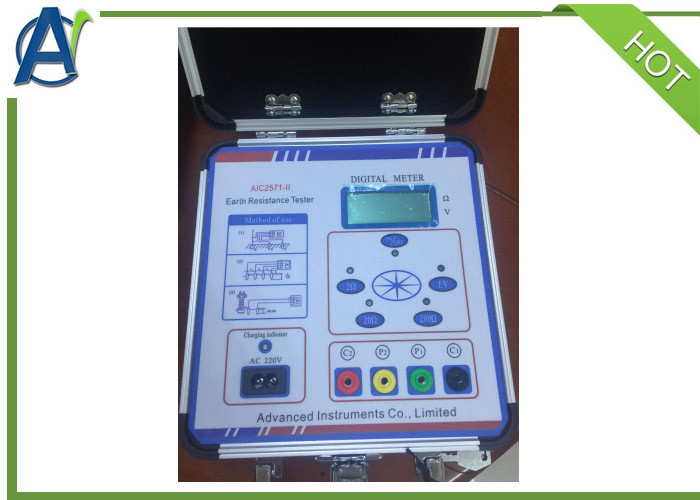

1 Application
This earthing resistance tester is suitable to test earth resistance of all kinds of devices and Conductor resistance of low resistance in electric power, post,oil,chemistry,communication,mine industry and so on..It also can test resistance rate of soil and voltage to earth.
2 Technical parameters
Range | Constant Current Value | Precision and Error | Resolution | Additional | |
0-1.999Ω 2-19.99Ω 20-199.9Ω AC:0-19.99V |
10mA(2Ω) 10mA(20Ω) 1mA(200Ω) <±(10%+1d) |
0-0.2Ω<±(3%+1d) 0.2-199.9Ω <±(1.5%+1d) 1-20V<±(3%+1d) |
0.001Ω 0.01Ω 0.1Ω 0.01V |
Rc:2Ω 20Ω/<1KΩ 200Ω/<10KΩ Rp:<50KΩ Error:< ±5% |
|
Power Consumption | Earth Voltage | Humidity | ≤85%RH | Power Supply | Weight: <1.8Kg |
≤2W | <5V,<±5% | Temperature | 0℃-40℃ | 7.2-9V DC or 220V AC | Size: 200×200×110mm3 |
