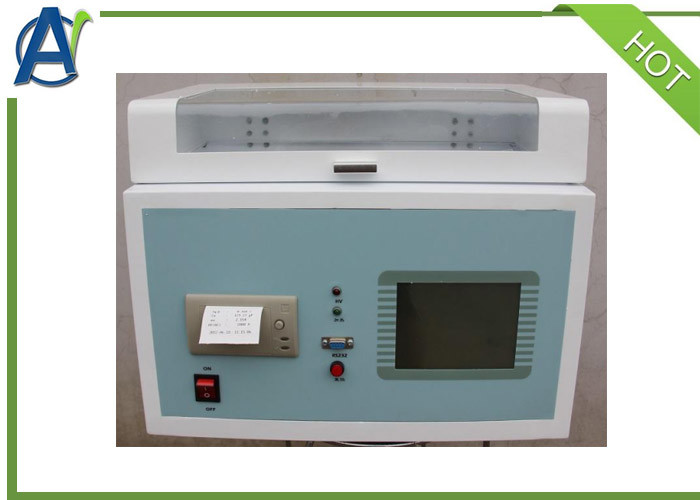

Automatic Dielectric Dissipation Factor Tester is a high-precision instrument, which can be applied to measure dielectric loss angle and Volume Resistivity of insulating oil etc.
This oil tan delta analyzer is integrated with oil cup for dielectric loss, temperature-control equipment,temperature sensor, test-bridge for dielectric loss, AC trial electrical source, standard capacitor,high resistance meter and DC high-voltage power etc.
The most advanced heating mode of high frequency induction is applied to the heating part of this iinsulation oil dissipation factor tester, which has the advantage of non-contact of oil cup and heating unit, homogeneous heating, quick velocity and convenient control etc. AC-DC-AC conversion mode is applied to AC trial electrical source so that the problem how to measure correctly under the fluctuation of voltage and frequency can be avoided. Even when the electric generator is working, the transformer oil volumn resistivity tester can operate correctly.
The inner standard capacitor is SF6 three-pole inflate capacitor, whose dielectric loss and capacitance is not influenced by environmental temperature and dampness etc. In this way, the accuracy of insulation oil dielectric loss tester is guaranteed conformably after a long-time application.
Condition of Use
AC 220V±10% Without Frequency Limit
AC High Voltage Output
400V-2200V ±2% Every 100V 50VA
DC High Voltage Output
Temperature Control Induction Stove
Maximal Power 500W
Temperature Control Range
Temperature Measuring Error
Control Temperature Error
Control Temperature Time
Room Temperature 90℃ <20min
tgδ Without Limit
delta Cx :±(Reading*0.5%+0.5PF)
delta Rx :±Reading * 10%
Relative Dielectric Loss Constant
Εr Calculated Automatically
ρ Calculated Automatically
Oil Cup of Dielectric Dissipation Factor Volume Resistivity Meter
