| Place of Origin: | CHINA |
|---|---|
| Brand Name: | AI |
| Certification: | ISO |
| Model Number: | AIC-3795 |
| Minimum Order Quantity: | 1 SET Interior Materials Flammability Test Equipment |
| Price: | Negotiable |
| Packaging Details: | Interior Materials Flammability Test Equipment packed in Plywood case |
| Delivery Time: | 40 days |
| Payment Terms: | Western Union, T/T, L/C |
| Supply Ability: | 200 sets per month |
| Test Standard: | ISO 3795, FMVSS 302 | Size: | 200(W)×381(D)×356(H)mm |
|---|---|---|---|
| Weight: | 50KG | Warranty: | 1 Year |
| Gas Supplies: | Propane | Power Supply: | AC 220V , 50/60Hz, 10A |
| Color: | Grey | Data Storage: | 6 Tests |
| Number Of Ventilation Holes: | 10 | ||
| Highlight: | FMVSS 302 Interior Materials,Interior Materials Flammability Test Equipment,Interior Materials ISO 3795 |
||
Introduction:

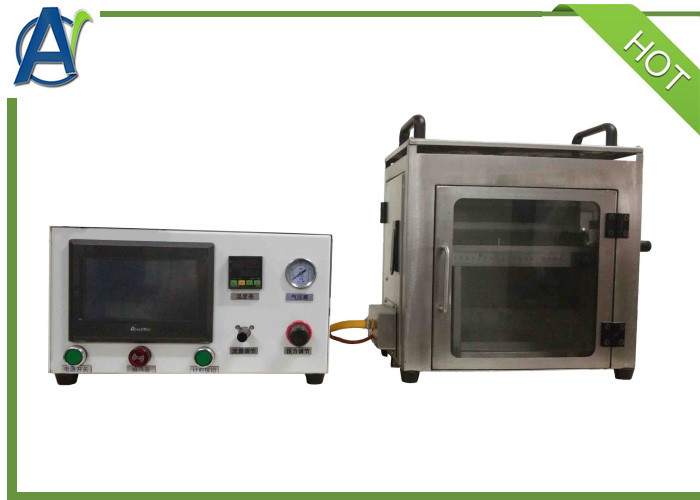

This interior materials flammability testing equipment is designed according to ISO3795 ,FMVSS 302 standards and relevant clauses.It is used to identify vehicles (cars, multipurpose passenger car, truck and bus) interior material horizontal burning test. A high degree of automation control system with automatic ignition. Temperature and time digital display, easy observation and records; stable and reliable to use.
Standard:
• FMVSS 302 Federal Motor Vehicle Safety Standard 302
• ISO 3795
• Other relevant standards:
SAE J369: 2003 --- American Society of Mechanical Engineers
HES D6003-99 --- Honda Motor
NES M0094: 2003 --- Nissan;
ES-X60410: 2001 ---- Mitsubishi Motors
TRANS / WP29 / 78 / Rev.1: 1997 Appendix 4 ---- EU
TL 1010: 1997 --- Volkswagen;
GS 97038-2003 ---- BMW;
GM 9070P: 1996 --- General Motors
Features:
1, Advanced industrial appearance and control design;
2, Model 304 Stainless steel structure housing; bottom ventilation hole spacing: horizontal 63.5mm, longitudinal 127mm.
3, The number of ventilation holes: 10, diameter 19mm.
4, Inner diameter of the burner is Φ9.5mm. Blowtorch top center at the free end of the specimen from 19mm.
6, Record time can be adjusted within the range of 0 to 9999 seconds.
7, Interior materials flammability testing equipment is equipped with stainless steel sample holder and sample templates;
8,Combustion chamber is assembled steel ruler; precision: 1mm; combustion length can be easily read; Do not remove the sample to measurement burn length;
9, The imported Bunsen burner from USA Humboldt, combustion flame higher precision, adjustment range 20mm ~ 100mm.
10, The flame measuring device; flame height 38mm
11, A high degree of test automation, test data accurate, easy to operate
12.Programmable Logic Controller (PLC) + touch screen plus automatic control system can fulfill automatic timing, automatic ignition, ignition abnormal protection;
13,6 sample test data can be saved;
14.Monitoring the experimental data, query six samples of experimental data, query alarm contents.
Installation requirements
| Electrical | AC 220V , 50/60Hz, 10A |
| Ambient Temperature | Operating 10°C to 30°C |
| Dimensions | 200(W)×381(D)×356(H)mm |
| Weight | about 50KG |
| Gas |
Propane |
