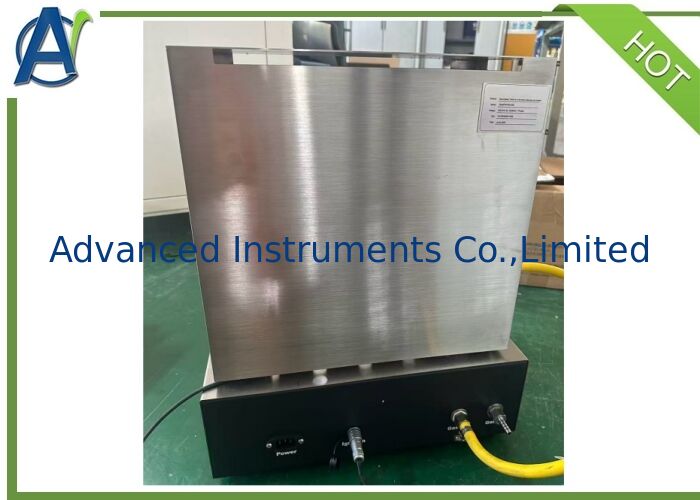

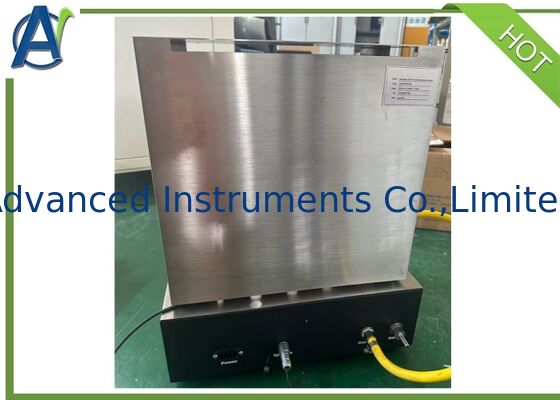

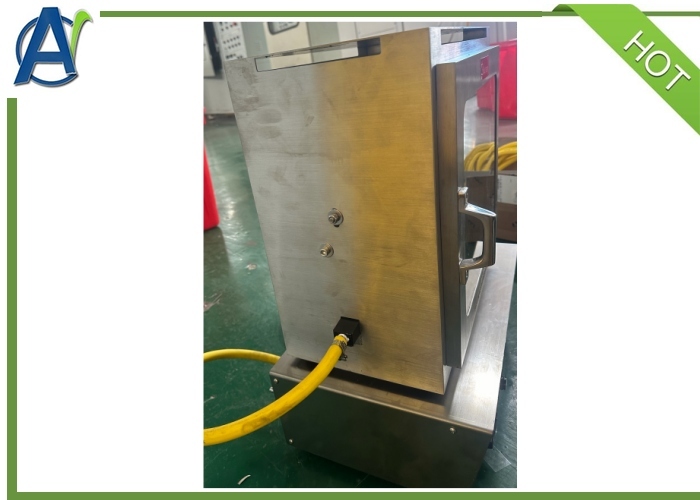

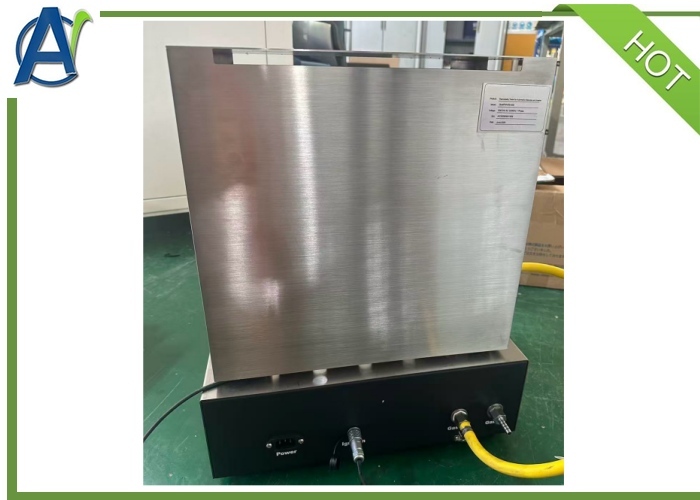

FMVSS 302 Automotive Interior Materials Horizontal Combustion Tester

1. Thermal ceramic furnace chamber with excellent thermal insulation to prevent operators from scalding.
2. Microprocessor & PID control, digital display, PT100 sensor with accuracy of ±0.1℃.
3. Silica porcelain evaporating dishes: 50~100ml, 120~150ml, complying with standard requirements.
4. Hinged furnace door for easy opening and closing.
5. Separate electrical control cabinet and heating chamber to reduce high-temperature damage to the electrical cabinet.
6. Split type structure, simple operation.
7. Imported electric heating wire for longer service life.
8. Housing formed by cold-rolled steel sheet moulding.

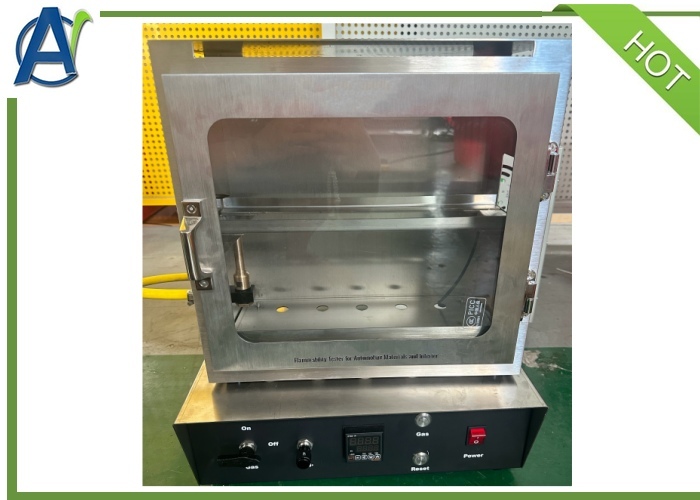

1. The combustion test chamber adopts an all-stainless steel structure with a wall thickness of 2mm, which is not easy to deform after combustion.
2. There are ten 19mm ventilation holes at the bottom of the chamber, and 13mm-wide ventilation slots around.
3. Bunsen burner with 9.5mm inner nozzle diameter; flame height adjustable to 38mm.
4. The chamber is equipped with a tempered glass viewing window for easy observation by operators.
5. A collection tray is fitted at the chamber bottom to collect molten drips.
6. U-shaped stainless steel sample holder, insertable from the right side of the chamber.
7. The instrument starts timing automatically once the U-shaped stainless steel sample holder is inserted.
8. The combustion flame will be automatically cut off 15 seconds after the test starts.
9. Needle valve and ball valve are provided for gas regulation and shut-off.
10.Optional stainless steel sample holder with heat-resistant metal wire for flexible fabrics.

III.Specification

Equipment Configuration:
Combustion chamber, automatic control box, burner, ash collection tray, etc.
Power Supply:
1AC 220V, 50 Hz, 5A
Operating Environment:
Indoor use
Altitude: Up to 2000 m
Ambient Temperature: 10°C to 35°C (60°F to 85°F)
Relative Humidity: 45% to 75%
Permissible Voltage Fluctuation: ±10% of rated voltage
Overvoltage Category: II
Pollution Degree: 1
