| Place of Origin: | China |
|---|---|
| Brand Name: | AI |
| Certification: | ISO9001 |
| Model Number: | AIC-2158 |
| Minimum Order Quantity: | 1 Set |
| Price: | USD$4000~6000 |
| Packaging Details: | Plywood case |
| Delivery Time: | 60days |
| Payment Terms: | T/T,Western Union,L/C |
| Supply Ability: | 20sets per month |
| Temperature Control: | Imported Pid Digital Thermostat | Test Standard: | Sy7509,ASTM D2158 |
|---|---|---|---|
| OEM Service: | Available | Application: | Liquefied Petroleum Gas |
| Total Power: | 1000w | Temperature Control Range: | -70℃;Ambient~100℃ |
| Language: | English | Power Supply: | AC220V/50Hz |
| Timing Mode: | Digital Timer | Temperature Control Accuracy: | ±0.1℃ |
| Function: | Determine Residues In LPG | ||
| Highlight: | ASTM D2158 LPG residue tester,Liquefied petroleum gas test equipment,Oil test equipment with warranty |
||

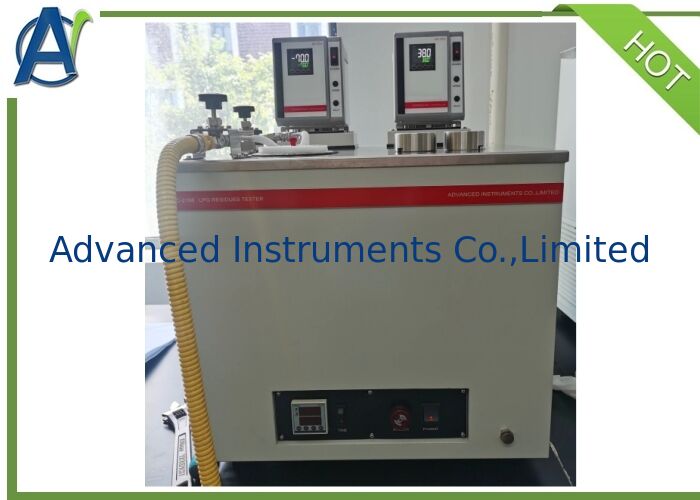

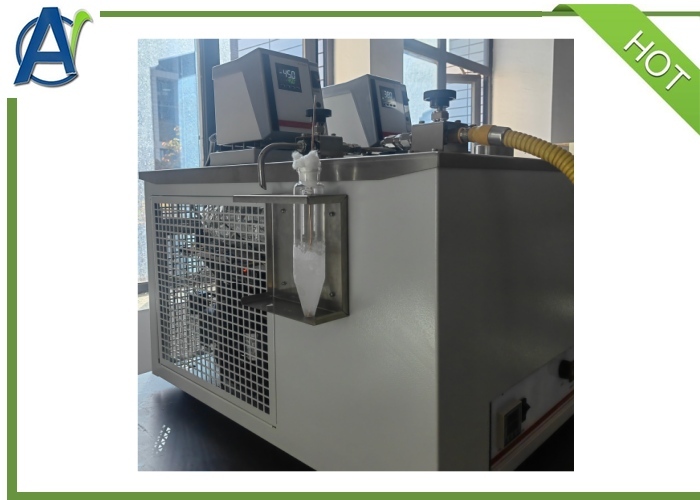

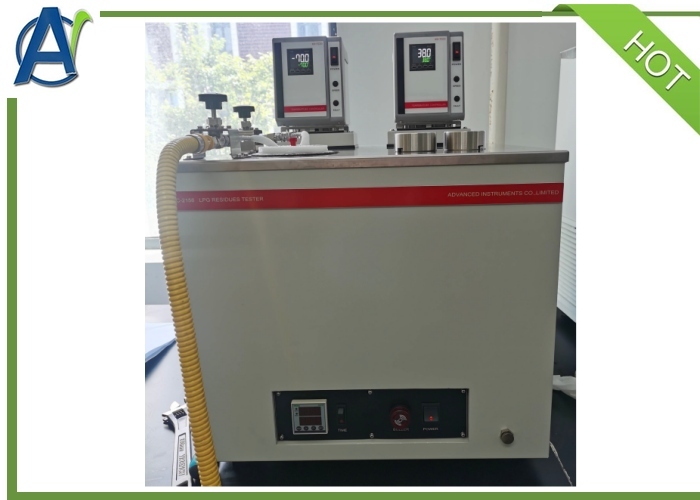

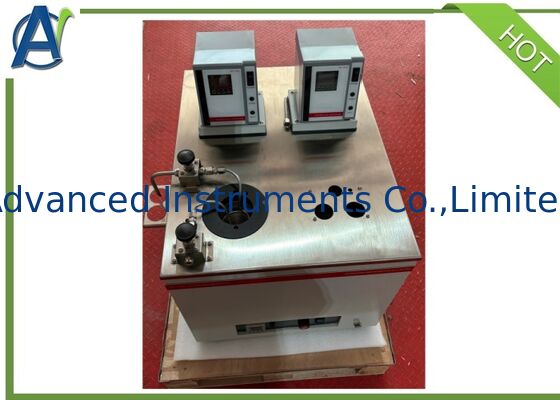

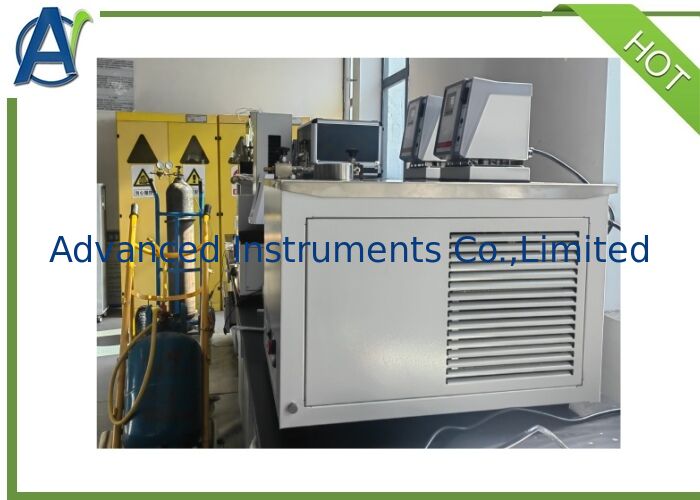

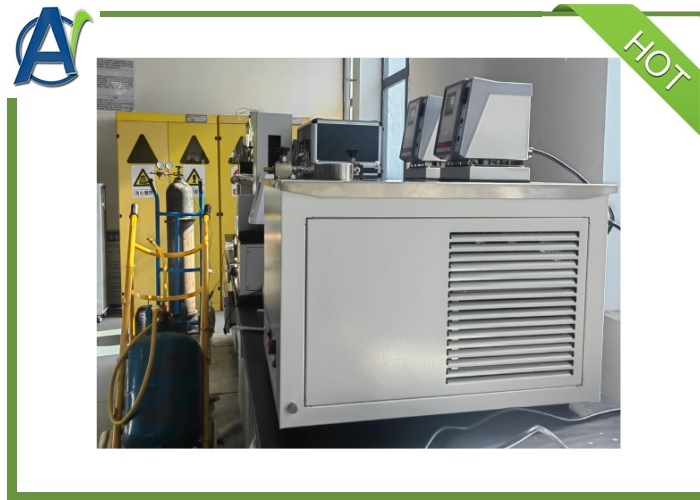

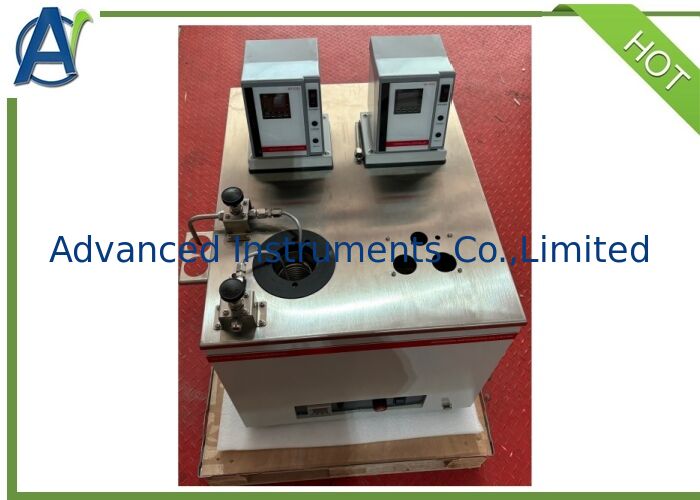

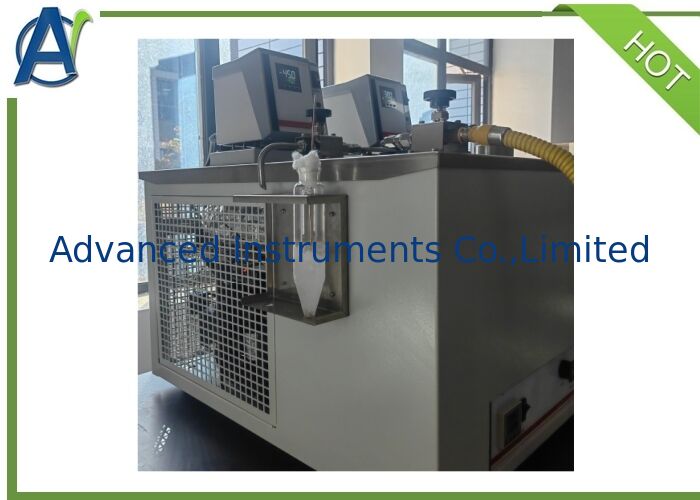

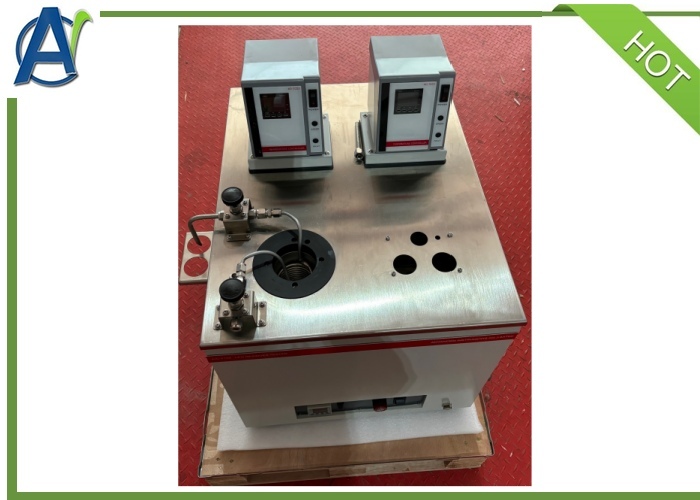

This Liquefied Petroleum Gas Residue Tester is mainly used to detect the residue of liquefied petroleum gas. Put 100mL liquefied petroleum gas sample in a centrifuge tube to volatilize, measure and record the volume of residue left at 38 ℃, and record the phenomenon caused by adding a certain amount of mixed liquid drops of solvent and residue on the filter paper.
1.This LPG Residue Testing Apparatus adopts imported double compressor cascade refrigeration, environmentally friendly refrigerant, fast refrigeration speed;
2.Double-layer stainless steel cold bath, built-in medium, no need to add coolant, good heat preservation effect;
3.Integral structure, easy to move;
4.The LPG residues test instrument is made of cold-rolled steel plate, and the surface is electrostatic sprayed, which is corrosion-resistant and easy to clean;
5.Instrument welding adopts butt welding technology, no solder joints, beautiful and generous appearance.
6.Imported Omron PID temperature controller, digital continuous display temperature, accuracy 0.1ºC.
![]()
|
Applicable standard
|
SY7509,ASTM D2158
|
|
Structure
|
Two bombs operation,vertical
|
|
Temperature control range
|
-70±0.1ºC;Ambient~100±0.1ºC
|
|
Temperature control method
|
Imported PID digital thermostat
|
|
Refrigeration method
|
Imported dual air compressor
|
|
Timing method
|
Digital timer
|
|
Heating method
|
Electrical heating rod
|
|
Power supply
|
AC220V 50HZ
|
|
Total power
|
1000W
|
|
Dimension
|
740*480*960mm
|
|
Weight
|
52KG
|
|
No.
|
Name
|
Quantity
|
|
1
|
Main unit of LPG Residues Test Instrument
|
1 Set
|
|
2
|
Centrifuge tube
|
2 PCS
|
|
3
|
Thermometer
|
2 PCS
|
|
4
|
Fuse 20A
|
4 PCS
|
|
5
|
Copper wire
|
1 Root
|
|
6
|
Cold bath cover
|
1 PC
|
|
7
|
Heating bath cover
|
3 PCS
|
|
8
|
Manual book
|
1 PC
|
What's the delivery time?
About 60days.
What's your payment terms?
30% paid by T/T in advance,70% paid by by T/T before shipping.
What's your guarantee terms?
The warranty of all products is 1 year.During this period,we are responsible for all faults caused by us.And we can supply life-long technical support.
Can you supply training?
We can supply training in our factory and online training for free.If onsite installation and training are required,please pay for tickets,accommodation and salary USD280/Day for every person.
