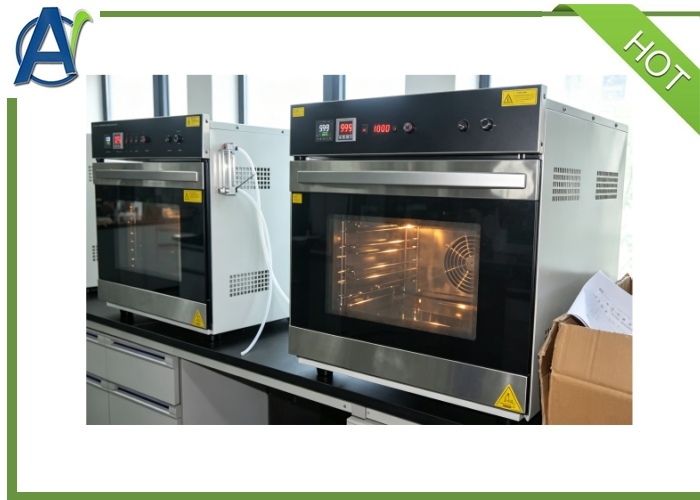

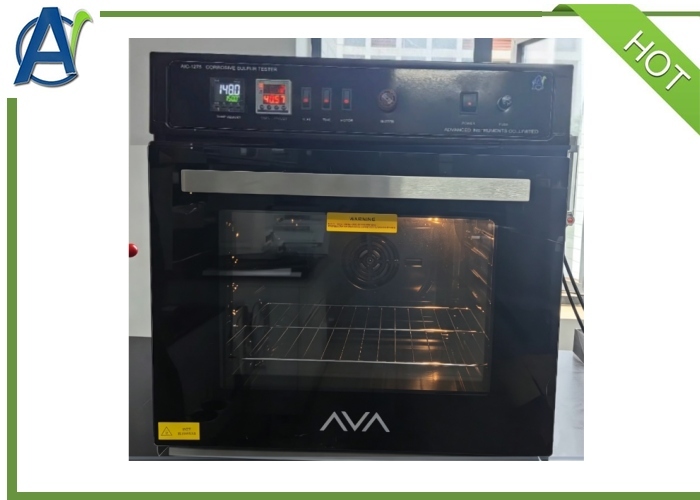

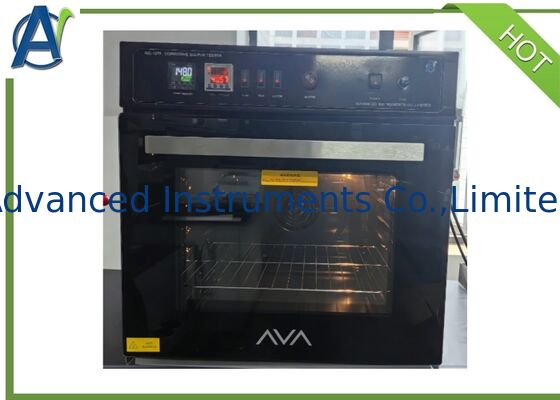

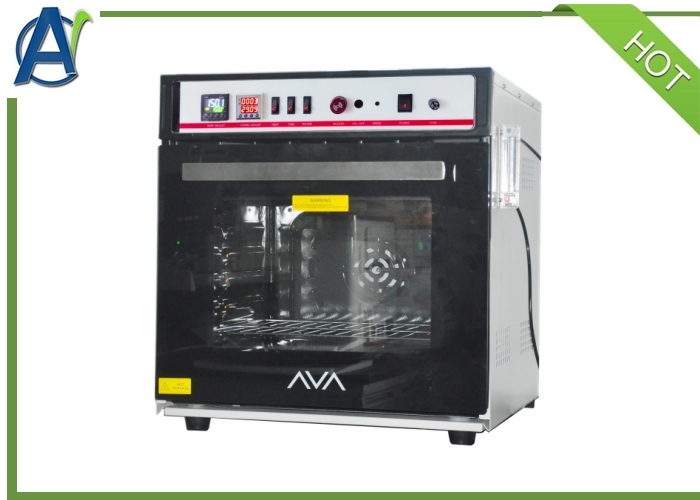

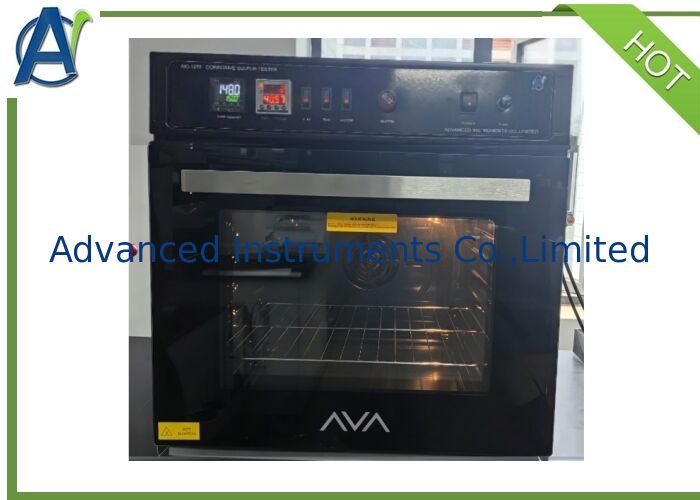

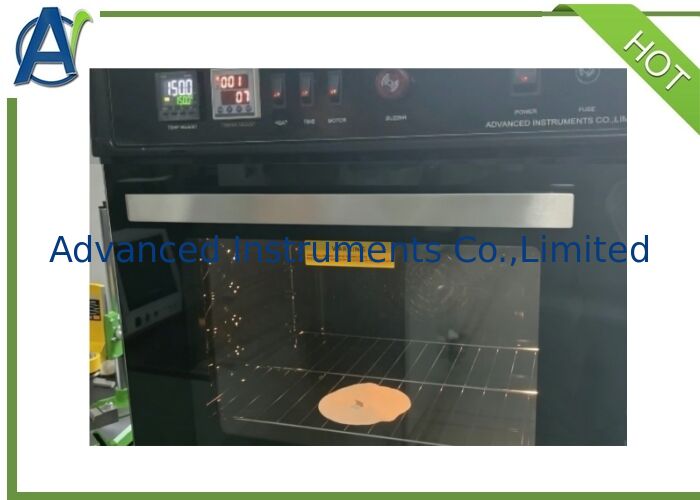

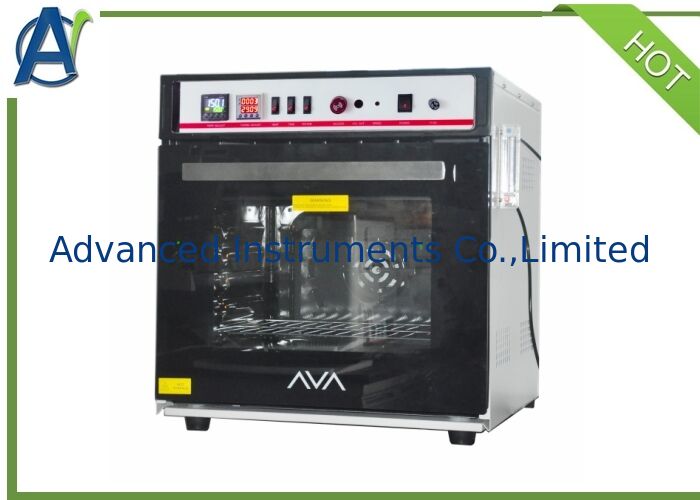

ASTM D1275, IEC 62535 Corrosive Sulfur Tester for Electrical Insulating Oil

ASTM D1275, IEC 62535 Corrosive Sulfur Tester for Electrical Insulating Oil
ASTM D1275, IEC 62535 Corrosive Sulfur Tester for Electrical Insulating Oil ASTM D1275, IEC 62535 Corrosive Sulfur Tester for Electrical Insulating Oil ASTM D1275, IEC 62535 Corrosive Sulfur Tester for Electrical Insulating Oil ASTM D1275, IEC 62535 Corrosive Sulfur Tester for Electrical Insulating Oil ASTM D1275, IEC 62535 Corrosive Sulfur Tester for Electrical Insulating Oil ASTM D1275, IEC 62535 Corrosive Sulfur Tester for Electrical Insulating Oil ASTM D1275, IEC 62535 Corrosive Sulfur Tester for Electrical Insulating Oil ASTM D1275, IEC 62535 Corrosive Sulfur Tester for Electrical Insulating Oil ASTM D1275, IEC 62535 Corrosive Sulfur Tester for Electrical Insulating Oil ASTM D1275, IEC 62535 Corrosive Sulfur Tester for Electrical Insulating Oil ASTM D1275, IEC 62535 Corrosive Sulfur Tester for Electrical Insulating Oil ASTM D1275, IEC 62535 Corrosive Sulfur Tester for Electrical Insulating Oil
Basic Information
Place of Origin: China
Brand Name: AI
Certification: ISO9001
Model Number: AIC-1275
Minimum Order Quantity: 1 Set
Price: USD$10000~15000
Packaging Details: Plywood case
Delivery Time: 60days
Payment Terms: T/T,Western Union,L/C
Supply Ability: 20sets per month
Get Best Price Contact Now
OEM Service: Available Test Standard: ASTM D1275,IEC 62535
Application: Insulating Oil Language: English
Power Supply: AC220V±10%/50Hz Working Temperature: Ambient~150℃
Temp.Control Method: Imported Pid Temperature Controller Timing Mode: Digital Timer
Standard Copper Strip: Purity 99.9% Total Power: 1500w
Weight: 31kg Function: For Corrosive Sulfur Electrical Insulating Oils
Highlight:

ASTM D1275 corrosive sulfur tester

,

IEC 62535 oil test equipment

,

electrical insulating oil tester

I. Corrosive Sulfur Test Machine ASTM D1275,IEC 62535

This instrument is mainly used to detect the tendency of insulating oil to release or absorb gas under the action of an electric field (or ionization) strong enough to cause discharge at the junction of oil and gas. Suitable for the determination of cable oils, capacitor oils and transformer oils (mineral or synthetic).

II. Main features
  • Stainless steel heating box with transparent observation window for easy operation, and a hole for inserting a thermometer at the top
  • The surface of the instrument is treated with electrostatic spray molding, which is corrosive and easy to clean
  • Digital display timer, with an accuracy deviation of no more than 2min per hour, recording the test time, and equipped with a time alarm.

ASTM D1275, IEC 62535 Corrosive Sulfur Tester for Electrical Insulating Oil

III. Main technical parameters
Reference standards
GB/T25961, ASTM D1275,IEC 62535
Working temperature
Ambient~150ºC
Temperature controlling mode
Imported PID temperature controller
Timing method
Digital timer
Standard copper strip
Purity 99.9%,thickness 0.125~0.250mm
Total power
1500W
Weight
31KG
Dimension
600×600×650mm³
Power supply
AC 220V ,50Hz
FAQ

  1. What's the delivery time?

    About 60days.

  2. What's your payment terms?

    30% paid by T/T in advance,70% paid by by T/T before shipping.

  3. What's your guarantee terms?

    The warranty of all products is 1 year.During this period,we are responsible for all faults caused by us.And we can supply life-long technical support.

  4. Can you supply training?

    We can supply training in our factory and online training for free.If onsite installation and training are required,please pay for tickets,accommodation and salary USD280/Day for every person.
