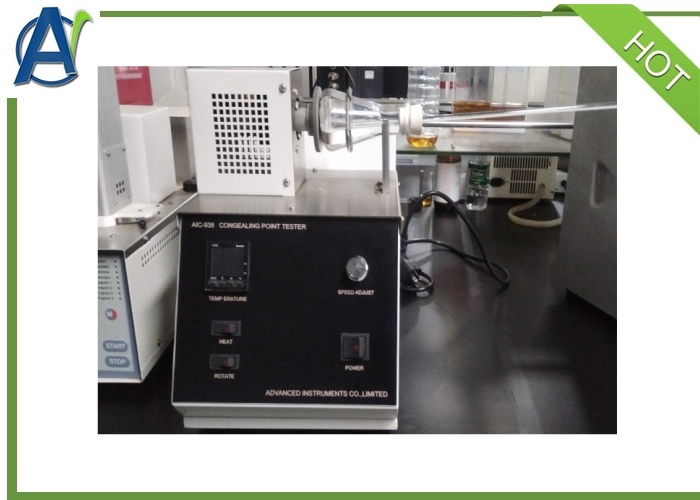

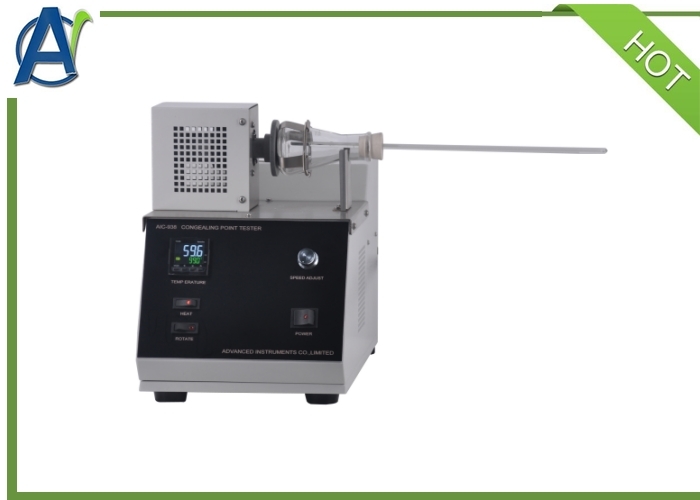

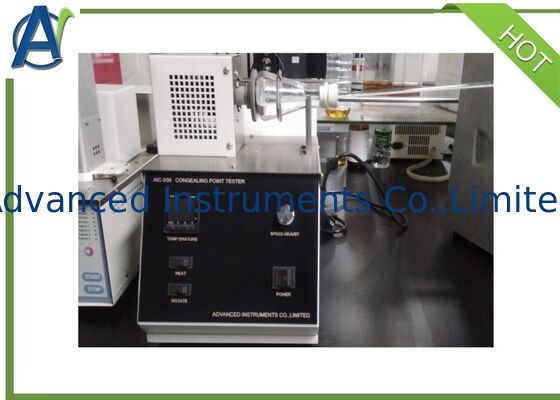

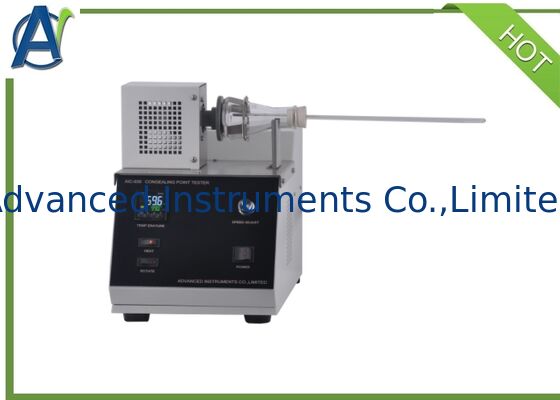

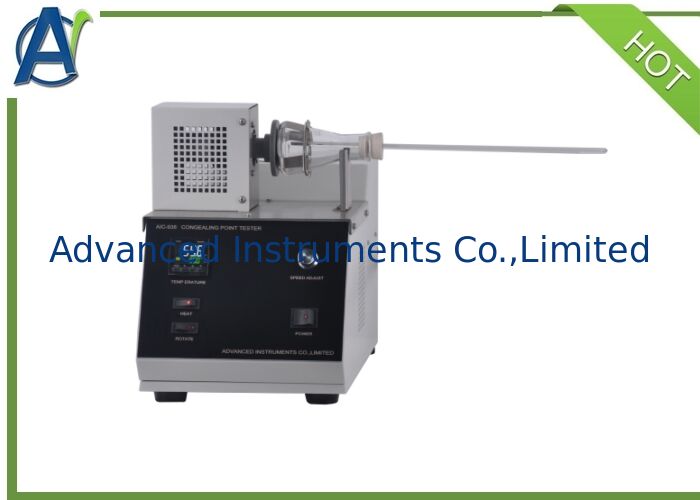

Petrolatum Paraffin Congealing Point Tester ASTM D938 Wax Congealing Point Test Instrument

The congealing point is a characteristic of paraffin products that is of interest to many paraffin users. This process is the temperature at which thetest sample cools to form congealed or stops flowing. At this temperature, petroleum wax may be solid or near solid, or semi solid, and is quite soft,depending on the composition of the paraffin or petrolatum being tested. When the sample is petrolatum, the congealing is related to the gel structure of the sample when it is cooled.

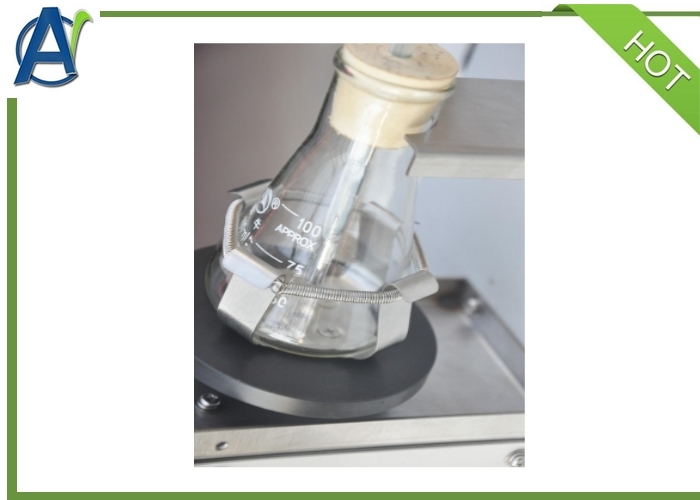

The principle of congealing point testing is to melt the paraffin sample and stick the paraffin droplets to the mercury ball of the thermometer. A preheated flask is used as an air jacket to cool the petroleum wax adhered to the mercury ball at the rated speed until it condenses. The freezing point can be reduced by the thermometer temperature, and when the paraffin droplets stop flowing, the observed temperature is the congealing point.
The congealing point tester is also suitable for testing Vaseline.

1. Heating the sample in a metal bath is safe, environmentally friendly, and free from open flames;
2. The motor drives the horizontal axis of the sample to rotate, reducing Personal equation;
3. The rotation speed can be adjusted according to requirements;
4. The holding device can be easily operated;

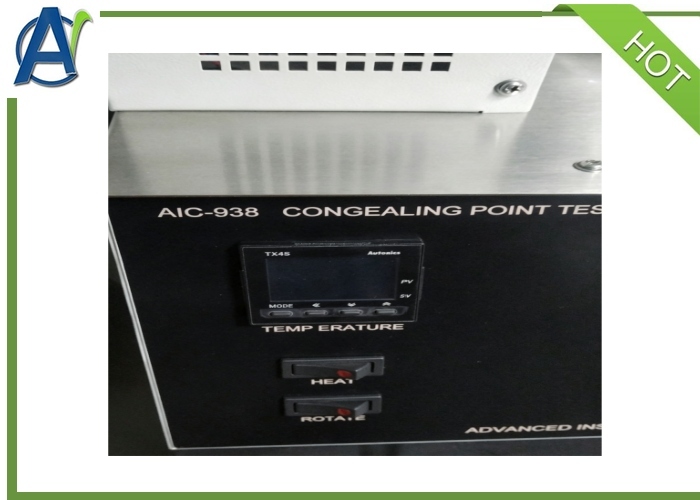

5. Microcomputer temperature controller, PID adjustable temperature control, PT100 temperature sensor, high accuracy;
6. The congealing point tester is equipped with dedicated thermometers and test tube plugs;
