ASTM D566 ISO 2176 Grease Dropping Point Tester Lubricant Grease Dropping Point Testing Apparatus for Lubricating Grease

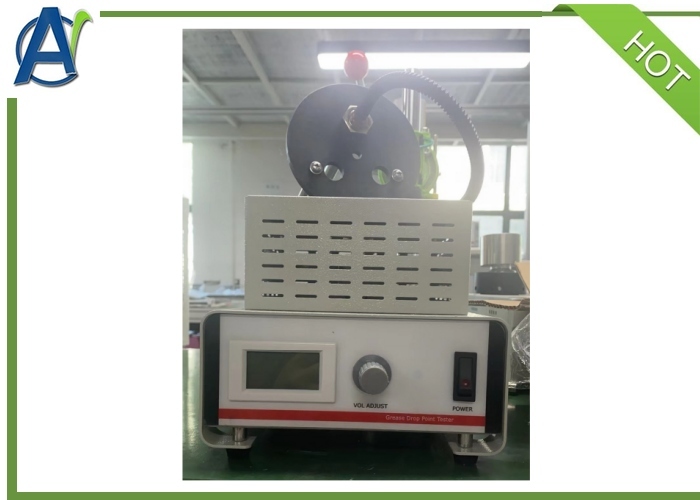

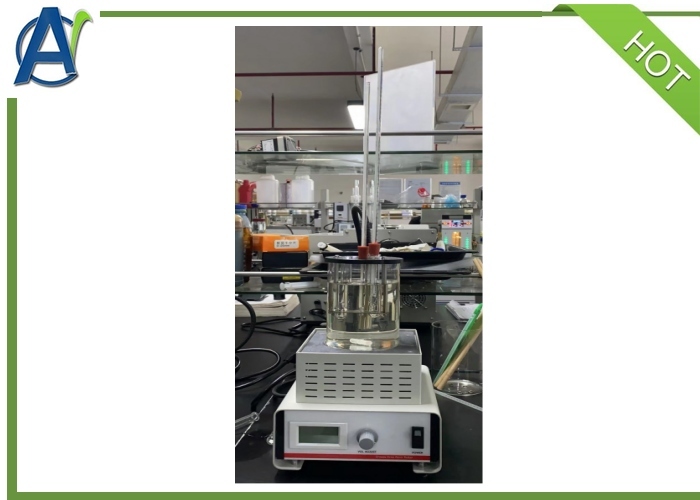

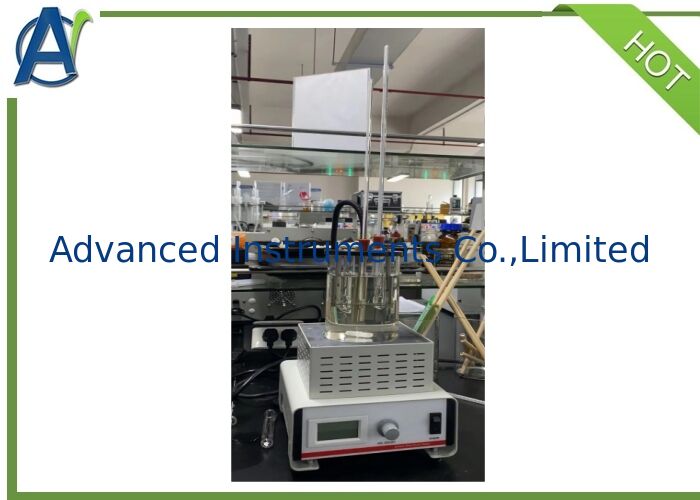

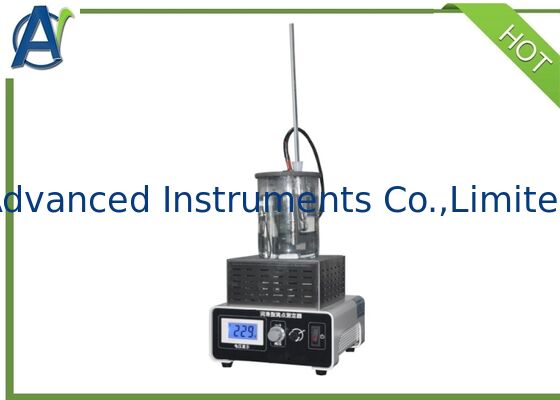

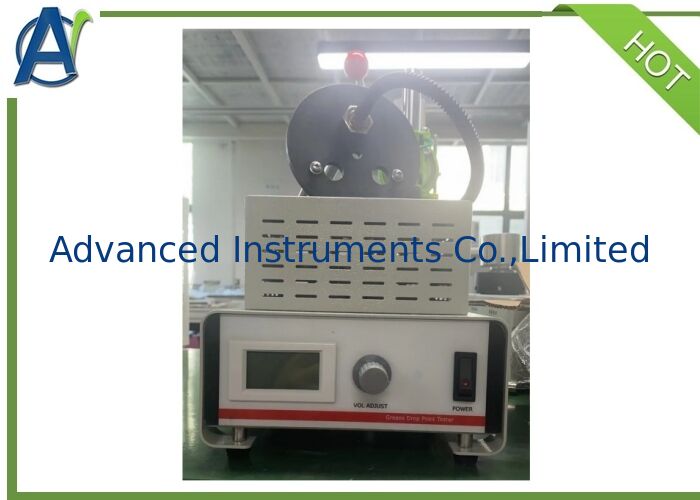

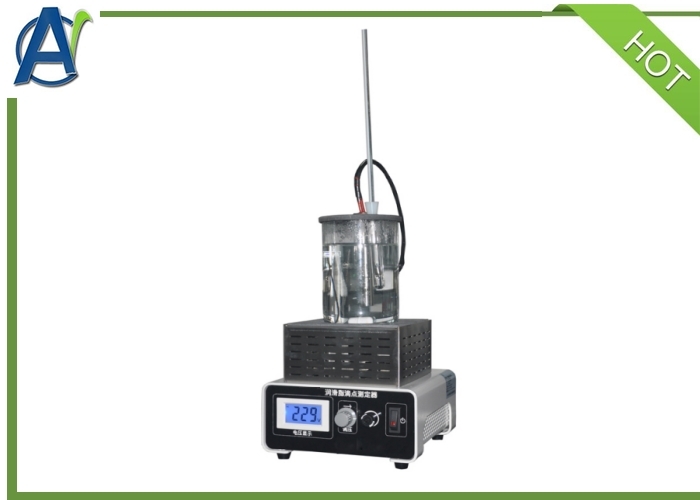

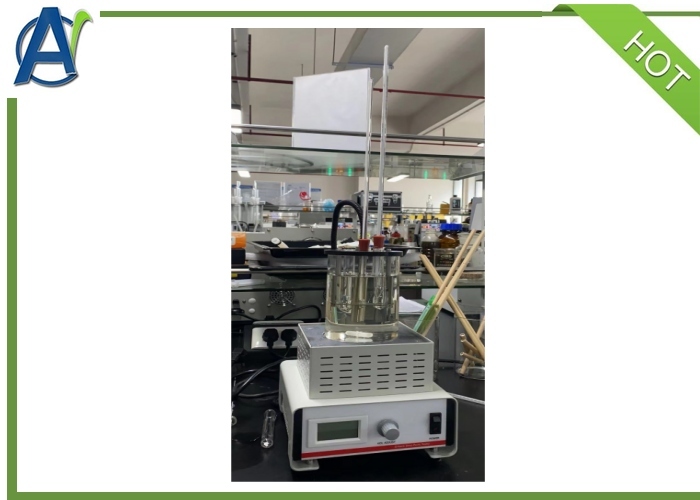

This Dropping point test set is manufactured in accordance with the GB/T4929 standard and is suitable for measuring the dripping point of lubricating grease. The instrument mainly consists of oil bath, insulated glass cylinder, electric heater, agitator, and control box. It has the advantages of convenient control of oil bath heating speed, observation of grease droplet cleaning, and the ability to perform dual tube drop point tests at the same time.

Working principle:load the lubricating grease into a test grease cup, and under the specified standard conditions, the lubricating grease reaches a certain fluidity temperature during the test process.

1. Glass tank is easy to observe.
2. Integrated structure is easy to operate.
3. Grease cup is made of chrome plated brass,inner diameter is Φ9.92mm,hole is Φ28mm,height is 12mm.It meets requirements of ASTM.
4. Two sample can be tested simultaneously by this dropping point apparatus.
5. Heating power can be adjusted at random.
6. There is stirrer above electric heating bath.
7. Heater is stainless steel.
8. The pressure gauge display heating status.
9. The case made by cold rolled steel,surface is treated by electrostatic spraying,rust resistant and easy to clean.
10. .Safety device can prevent over-heat and low liquid level.
11. Contact control box is very convenient.
12. .The dropping point test set has safety facilities preventing overheating and low water levels.

1. What's the delivery time?

   About 30days.

2. What's your payment terms?

   30% paid by T/T in advance,70% paid by by T/T before shipping.

3. What's your guarantee terms?

   The warranty of all products is 1 year.During this period,we are responsible for all faults caused by us.And we can supply life-long technical support.

4. Can you supply training?

   We can supply training in our factory and online training for free.If onsite installation and training are required,please pay for tickets,accommodation and salary USD280/Day for every person.
