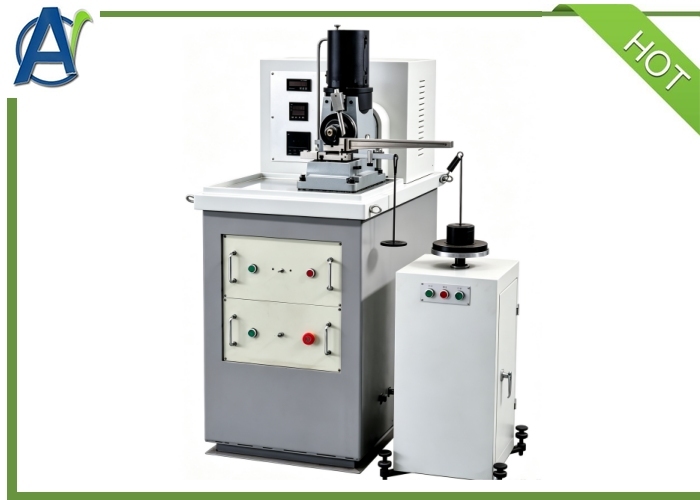

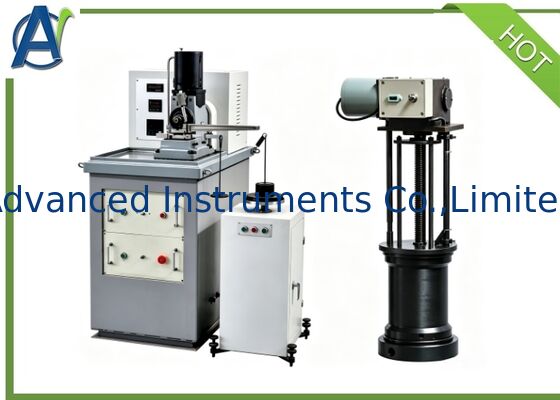

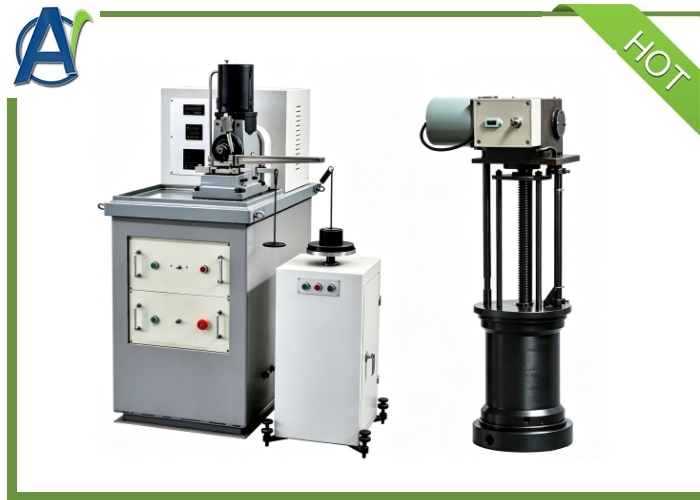

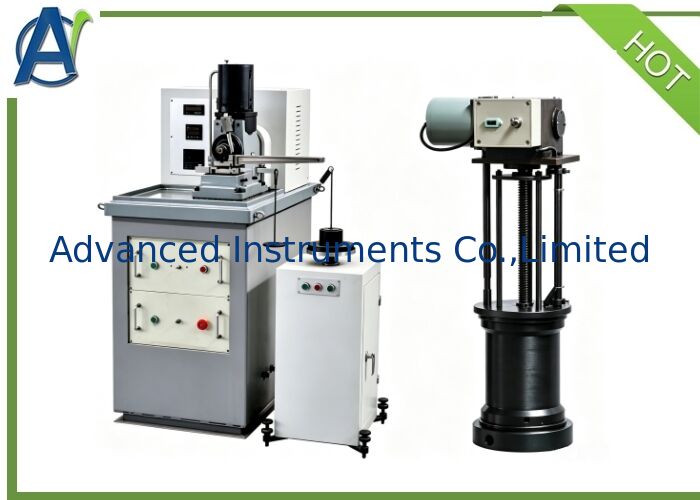

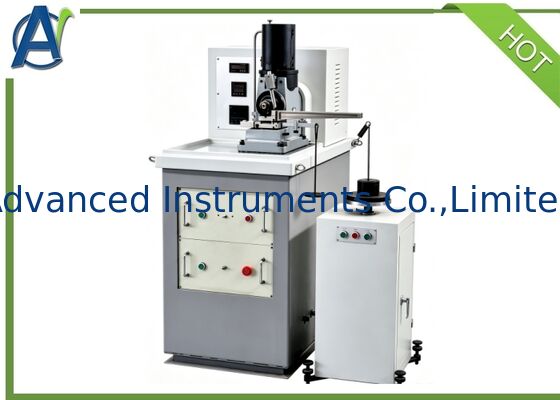

Timken Ring-Block Wear Test Machine ASTM D2782 ASTM D2509 Lubricant Extreme Pressure OK Load Tester

Timken Ring-Block Wear Test Machine ASTM D2782 ASTM D2509 Lubricant Extreme Pressure OK Load Tester
Timken Ring-Block Wear Test Machine ASTM D2782 ASTM D2509 Lubricant Extreme Pressure OK Load Tester Timken Ring-Block Wear Test Machine ASTM D2782 ASTM D2509 Lubricant Extreme Pressure OK Load Tester Timken Ring-Block Wear Test Machine ASTM D2782 ASTM D2509 Lubricant Extreme Pressure OK Load Tester Timken Ring-Block Wear Test Machine ASTM D2782 ASTM D2509 Lubricant Extreme Pressure OK Load Tester Timken Ring-Block Wear Test Machine ASTM D2782 ASTM D2509 Lubricant Extreme Pressure OK Load Tester Timken Ring-Block Wear Test Machine ASTM D2782 ASTM D2509 Lubricant Extreme Pressure OK Load Tester Timken Ring-Block Wear Test Machine ASTM D2782 ASTM D2509 Lubricant Extreme Pressure OK Load Tester Timken Ring-Block Wear Test Machine ASTM D2782 ASTM D2509 Lubricant Extreme Pressure OK Load Tester Timken Ring-Block Wear Test Machine ASTM D2782 ASTM D2509 Lubricant Extreme Pressure OK Load Tester Timken Ring-Block Wear Test Machine ASTM D2782 ASTM D2509 Lubricant Extreme Pressure OK Load Tester Timken Ring-Block Wear Test Machine ASTM D2782 ASTM D2509 Lubricant Extreme Pressure OK Load Tester Timken Ring-Block Wear Test Machine ASTM D2782 ASTM D2509 Lubricant Extreme Pressure OK Load Tester
Basic Information
Place of Origin: China
Brand Name: AI
Certification: ISO9001
Model Number: AIC-2782
Minimum Order Quantity: 1 Set
Price: USD$15,000~25,000
Packaging Details: Plywood case
Delivery Time: 30days
Payment Terms: T/T,Western Union,L/C
Supply Ability: 20sets per month
Get Best Price Contact Now
OEM Service: Available Test Standard: ASTM D2782, ASTM D2509
Language: English Max. Test Force(0.022in Scar): 92300psi(5000N)
Controller: Main Brand Display Method: Digital Display
Scar Measurement: Visual Microscope Micrometer Precision: 0.01mm
Spindle Speed: 850rpm SPINDLE Speed Control Range: 10-1500rpm
Direction Of Rotation: One Way Grease Speed: 45±9g/sec
Highlight:

ASTM D2782 Tester

,

ASTM D2509 Testing machine

,

Timken Ring-Block Wear Test Machine

I.Timken Ring-Block Wear Test Machine ASTM D2782,ASTM D2509

This machine is mainly applied for simulating evaluation for kinds of lubricant, grease's extreme compression capacity and anti-confusion capacity. It can also be used for performance study of anti-friction capacity of aviation kerosene and capacities of all sorts of paint coating, metal and non-metal materials.

II. Main features

The Tester is made up of a 1.5 kw (0-1500r/Min) Servo motor, a digital speed indicator, a temperature controller, an electronic time relay, an electrical box and a Servo speed regulating system, a lubricating system and a heating device, a force applying device, a sample and accessories.

Timken Ring-Block Wear Test Machine ASTM D2782 ASTM D2509 Lubricant Extreme Pressure OK Load Tester
III. Main technical parameters
Applicable standards
ASTM D2782,ASTM D2509
Max. test force(0.022in scar)
92300psi(5000N)
Controller
Main Brand
Display method
Digital display
Scar measurement
Visual microscope
Micrometer Precision
0.01mm
Spindle speed
850rpm
SPINDLE speed control range
10-1500rpm
Direction of rotation
One Way
Motor output
RPM Indicator
Main Power
2HP
Loading scale
10:1
Loading rate
2-3p/sec(0.9-1.3kg/s)
Grease Testing
YES
Grease Speed
45±9g/sec
Temperature Range
80℃max
Tank volume
3L
Cup Dimension
1.938in×0.514in
Block Dimension
0.485in×0.750in
Hardness
58-62HRC
Instrument Net Weight
≥1100lbs
Packing weight
(including all accessories)
≥1600lbs
FAQ

  1. What's the delivery time?

    About 30days.

  2. What's your payment terms?

    30% paid by T/T in advance,70% paid by by T/T before shipping.

  3. What's your guarantee terms?

    The warranty of all products is 1 year.During this period,we are responsible for all faults caused by us.And we can supply life-long technical support.

  4. Can you supply training?

    We can supply training in our factory and online training for free.If onsite installation and training are required,please pay for tickets,accommodation and salary USD280/Day for every person.
