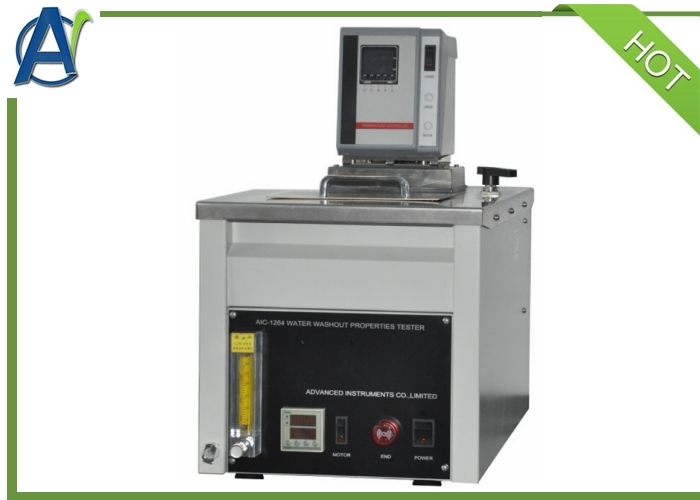

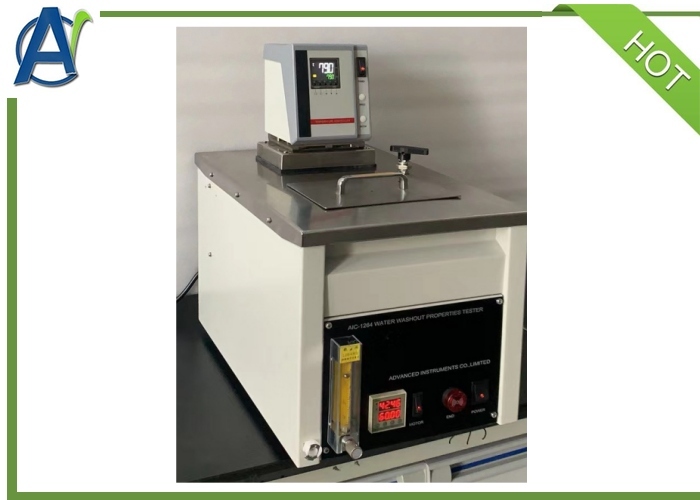

ASTM D1264 SH/T 0109 Lubricating Grease Water Washout Tester Anti-Water Washing Performance Test Equipment for Grease

Basic Information

Place of Origin:	China
Brand Name:	AI
Certification:	ISO9001
Model Number:	AIC-1264

Minimum Order Quantity:	1 Set
Price:	USD$3,000~5,000
Packaging Details:	Plywood case
Delivery Time:	30days
Payment Terms:	T/T,Western Union,L/C
Supply Ability:	20sets per month

Get Best Price Contact Now

Test Standard:	ASTM D1264	Language:	English
OEM Service:	Available	Power Supply:	AC220V ±10% 50Hz
Application:	Lubricating Grease Testing	Display:	Digital
Power Consumption:	600W	Temperature Range:	Ambient~100°c
Temperature Accuracy:	±0.1°c	Minimum Detection Concentration:	0.001mg/L
Working Temperature:	37.8 ± 0.1°c And 79 ± 0.1°c	Rotating Speed:	600 ± 30 Rpm
Flow Rate:	5 ± 0.5 Ml/S	Operation:	Manual
Highlight:	ASTM D1264 grease water washout tester , SH/T 0109 lubricating grease tester , grease anti-water washing test equipment

I. ASTM D1264 Lubricating Grease Water Washout Tester

This test method covers the evaluation of the resistance of a lubricating grease to washout by water from a bearing, when tested at 38°C and 79°C (100°F and 175°F) under the prescribed laboratory conditions. It is not to be considered the equivalent of service evaluation tests. Precision and bias was determined using grease ranging from NLGI 3 to 0 grades in the research report.

II.Main technical characteristics

The case of water washout tester is made of good quality glazed steel plate,which is reliable.
The bearing chamber and case can meet requirements of standard completely.
The stainless steel tank has inlet and outlet pipes,the bearing chamber is aluminum,copper chromium circulating pump,1/4 HP motor.
The heater of water washout tester is stainless steel.
The temperature controller is integrated with tempeature controlling and display.It also has micro-processor PID controller.The accuracy is ±0.1°C,tempeature probe is PT100 RTD,working tempeature is ambient~100°C.The working tempeature is usually 37.8 ± 0.1°C and 79 ± 0.1°C.
The rotation speed of motor with belt is 600 ± 30 rpm.
The design of motor and belt can start the circulating pump with start measuring bearing.
The regulator and by-pass valve can adjust the flow rate of 1mm capillary to 5 ± 0.5 ml/s.

III. Main technical parameters and index

Test standard	ASTM D1264
Power supply	AC220V /50HZ
Temp.control and display accuracy	±0.1°C
Working temperature	ambient~100°C
Usual working temperature	37.8 ± 0.1°C and 79 ± 0.1°C
Rotating speed of motor with belt	600 ± 30 rpm
Flow rate of capillary	5 ± 0.5 ml/s
Total Power	600W

FAQ

What's the delivery time?

About 30days.
What's your payment terms?

30% paid by T/T in advance,70% paid by by T/T before shipping.
What's your guarantee terms?

The warranty of all products is 1 year.During this period,we are responsible for all faults caused by us.And we can supply life-long technical support.
Can you supply training?

We can supply training in our factory and online training for free.If onsite installation and training are required,please pay for tickets,accommodation and salary USD280/Day for every person.
