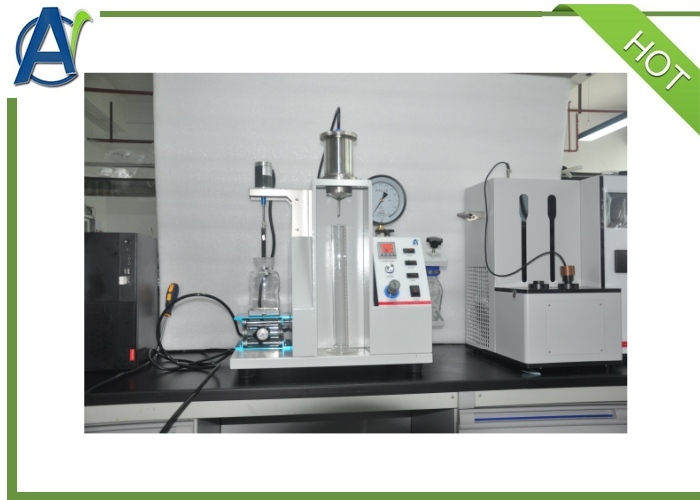

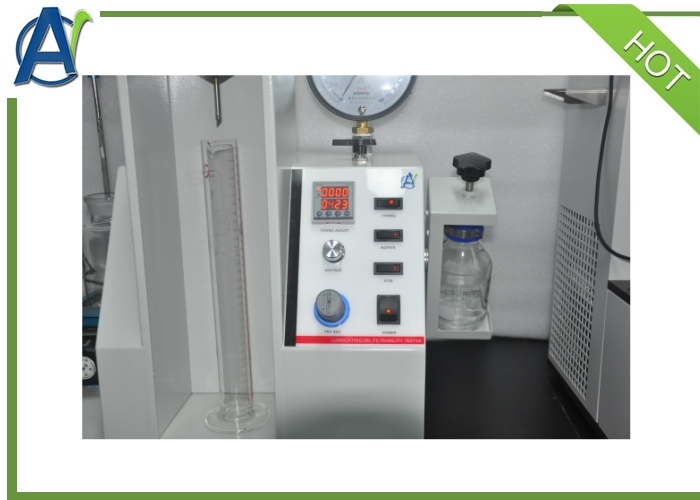

ISO 13357 SH/T 0805 Lubricating Oil Filterability Test Equipment

Basic Information

Place of Origin:	China
Brand Name:	AI
Certification:	ISO9001
Model Number:	AIC-13357

Minimum Order Quantity:	1 Set
Price:	USD$4,000~5,000
Packaging Details:	Plywood case
Delivery Time:	30days
Payment Terms:	T/T,Western Union,L/C
Supply Ability:	20sets per month

Get Best Price Contact Now

Test Standard:	ISO 13357	Language:	English
Power Supply:	AC220V,50Hz	OEM Service:	Available
Weight:	38kg	Dimension:	510mm400mm620mm
Pressure Control:	Precise Pressure Regulating Valve	Overall Power:	2500w
Mixing Mode:	Motor Mixting	Rotating Speed:	1500r/Min ± 50 R/Min
Timing Mode:	Digital Timer	Function:	Determine Filterability Of Lubricating Oil
Highlight:	ISO 13357 lubricating oil filterability tester , SH/T 0805 oil filterability test equipment , lubricating oil test equipment with warranty

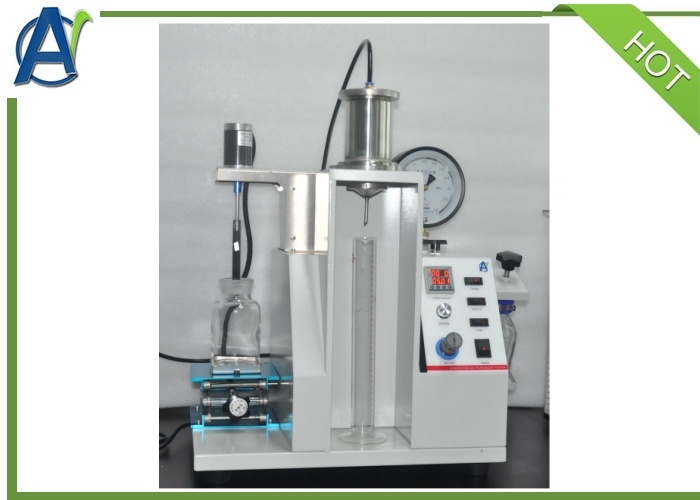

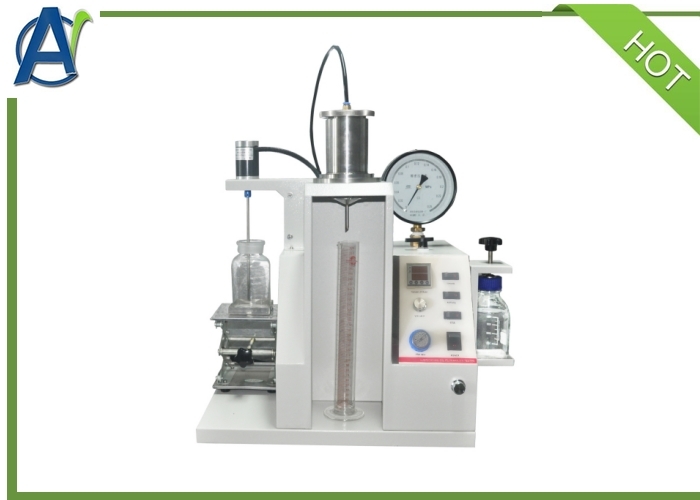

I. Lubricating Oils Filterability Tester ISO13357

This Lubricating Oils Filterability Tester is used to determine the filterability of lubricating oil based on mineral oil, especially hydraulic oil in hydraulic system. It is not suitable for liquids based on other materials (such as flame retardant liquids, because they may be compatible with the filter membrane used in this method); nor for some hydraulic oils with special properties, because they contain insoluble or partial Dissolved additives or special macromolecular substances.

II.Main technical characteristics

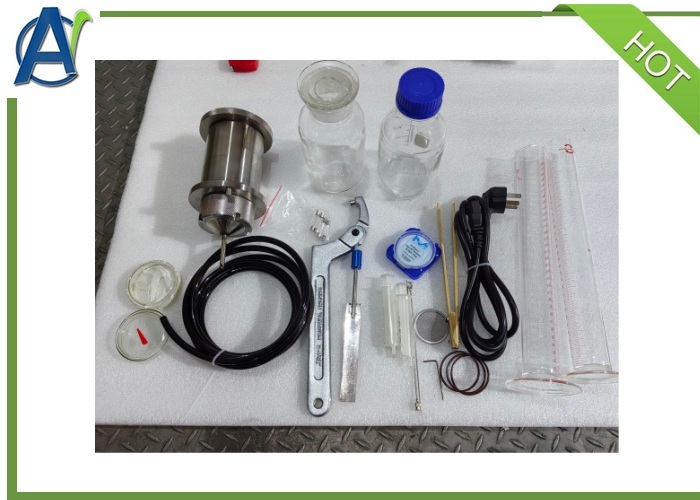

1. Glass fittings meet the standard requirements;
2. Digital display time, easy to operate, easy to observe;
3. The pressure can be controlled within the range of 86658Pa by precise pressure stabilizing valve;
4. The Lubricating Oils Filterability Tester is designed as an integrated structure, which is convenient for operation;
5. The shell is made of high-quality cold-rolled steel plate, and the surface is treated by electrostatic spraying, which has good rust resistance and is easy to clean;
6. The Lubricating Oils Filterability Tester has electronic agitator with stainless steel paddles and blades.

III. Main technical parameters and index

Test standard	SH/T 0805, ISO 13357
Timing mode	Digital display
Pressure control	precise pressure regulating valve adjustment, accurate control pressure ± 5 kPa
Solvent receiver	special solvent filter receiving bottle
Rotation mode	driven by reduction gear motor, automatic reverse
Mixing mode	Motor mixing, 1500r/min ± 50 r/min
Working power supply	AC220V 50Hz
Overall power	2500W
Dimension	510mm400mm620mm
Weight	38kg

FAQ

What's the delivery time?

About 30days.
What's your payment terms?

30% paid by T/T in advance,70% paid by by T/T before shipping.
What's your guarantee terms?

The warranty of all products is 1 year.During this period,we are responsible for all faults caused by us.And we can supply life-long technical support.
Can you supply training?

We can supply training in our factory and online training for free.If onsite installation and training are required,please pay for tickets,accommodation and salary USD280/Day for every person.
