ASTM D6184 Grease Oil Separation Equipment Conical Screen Static Method

Basic Information

Place of Origin:	China
Brand Name:	AI
Certification:	ISO9001
Model Number:	AIC-6184

Minimum Order Quantity:	1 Set
Price:	USD$100~200
Packaging Details:	Plywood case
Delivery Time:	30days
Payment Terms:	T/T,Western Union,L/C
Supply Ability:	20sets per month

Get Best Price Contact Now

Application:	Grease Testing	Warranty:	1full Year
Language:	English	OEM Service:	Available
Test Standard:	ASTM D6184	Test Method:	Conical Screen Static Method
Operation:	Manual	Seive:	60 Mesh
Weight:	1kg	Core Matching Component:	Conical Stainless Steel Wire Screen
Hole Density:	55696 Holes/dm²	Wire Diameter:	0.19 Mm
Highlight:	ASTM D6184 grease oil separator , conical screen oil test equipment , static method oil separation equipment

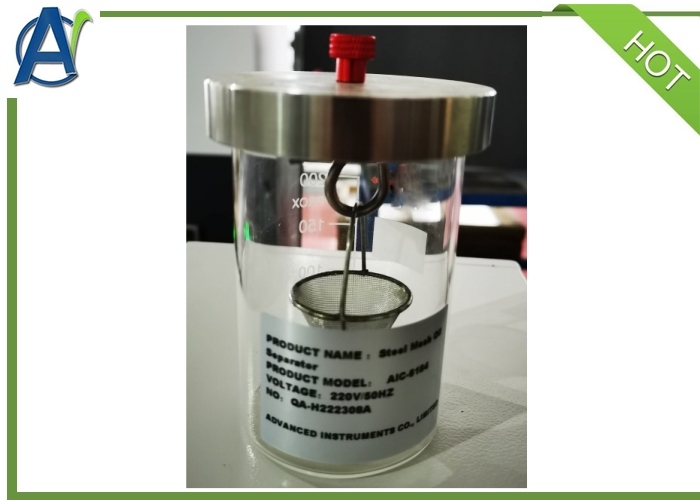

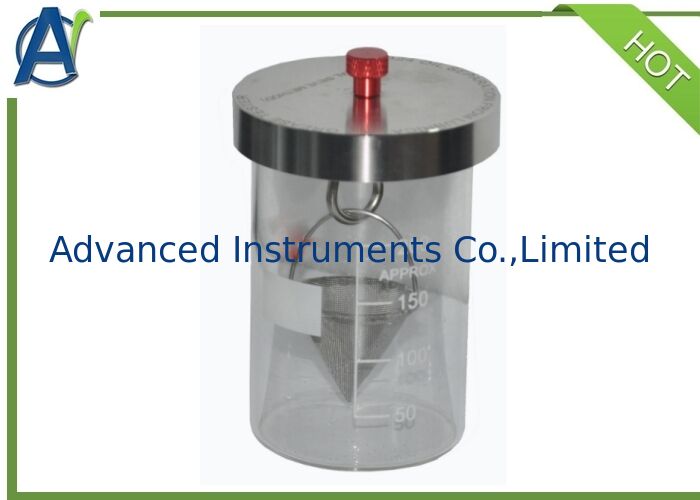

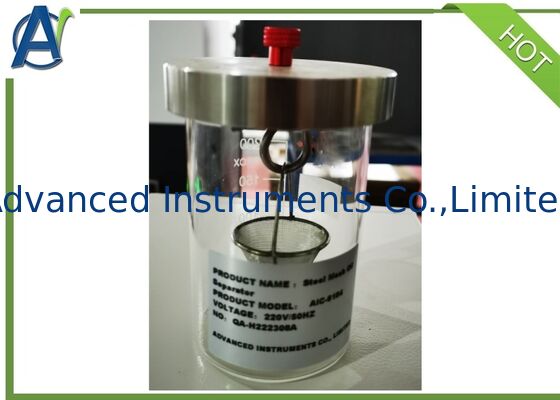

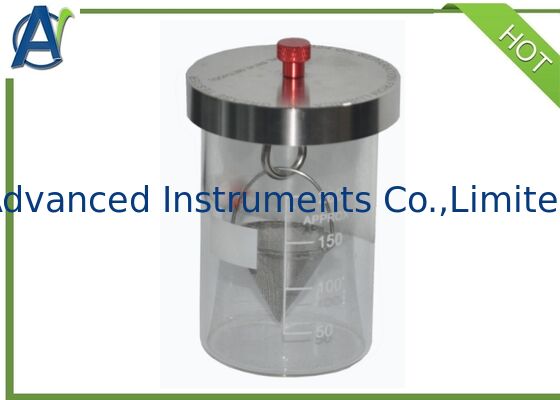

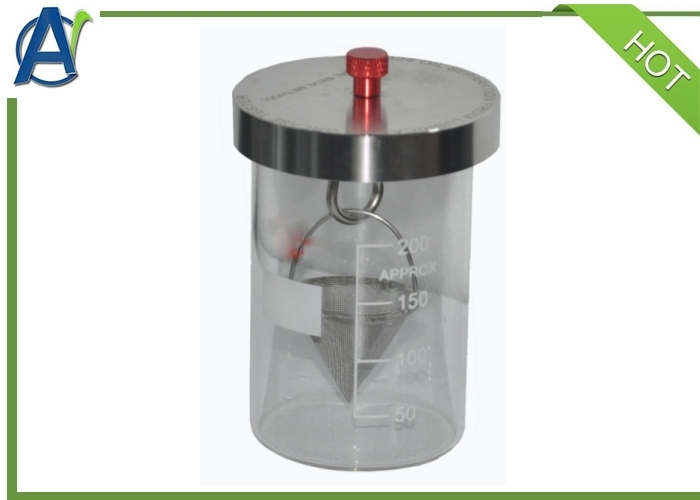

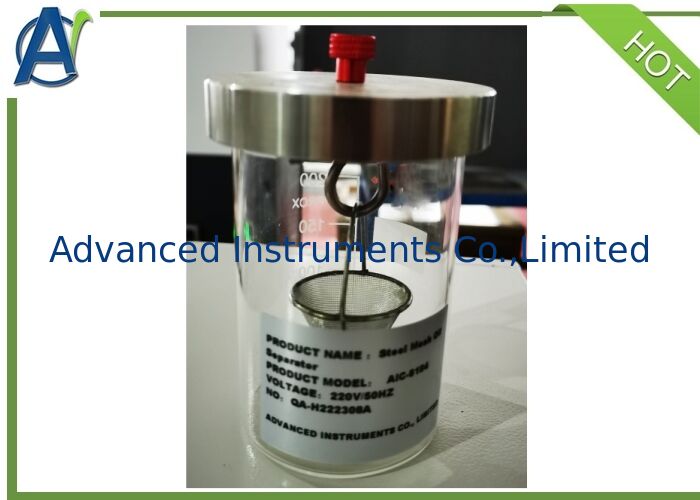

I. ASTM D6184 Oil Separator Tester

ASTM D6184 Oil Separator is suitable for measuring the tendency of lubricating grease to separate oil at higher temperatures.

Place approximately 10 grams of the sample in a metal wire mesh and let it stand still at 100 ºC+1 ºC. After 30 hours, measure the mass percentage of oil flowing through the sieve.

II. Apparatus and materials

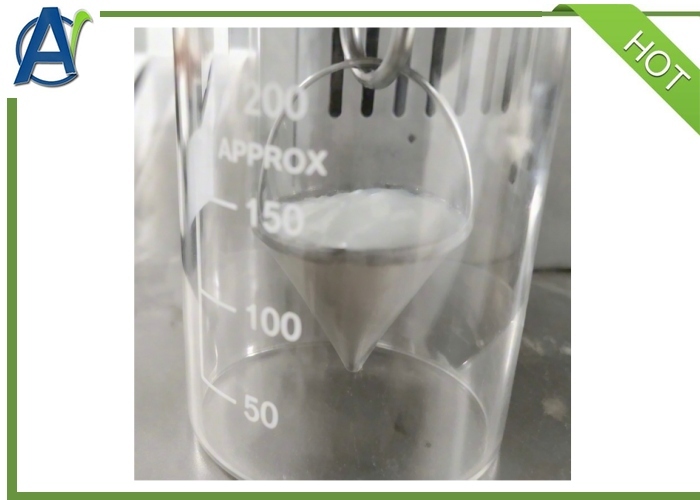

1. Nickel wire steel mesh or stainless steel mesh: 60 mesh, with a metal wire lifting beam above the steel mesh.

2. Beaker: tall, mouthless, 200 ml.

3. Lid: Tightly fitting with the cup, there should be a hook at the center of the lid bottom.

4. Thermostatic box: the temperature can be controlled to 1 ºC.

III. Experimental procedure:

1. Preheat the constant temperature box to 100 ºC+1 ºC. (or at a specified temperature)

2. Weigh a clean beaker (without steel mesh and lid) to an accuracy of 0.01 grams.

3. With minimal stirring, carefully place about 10 grams (accurate to 0.01 grams) of the sample into the steel mesh using a scraper (the steel tip should be filled with the sample), avoiding the formation of bubbles and voids, making the top of the sample smooth and convex to prevent oil accumulation. Use your fingers to wipe off the sample squeezed out from the mesh, weigh the steel mesh that has been loaded with the sample, accurate to 0.01 grams..

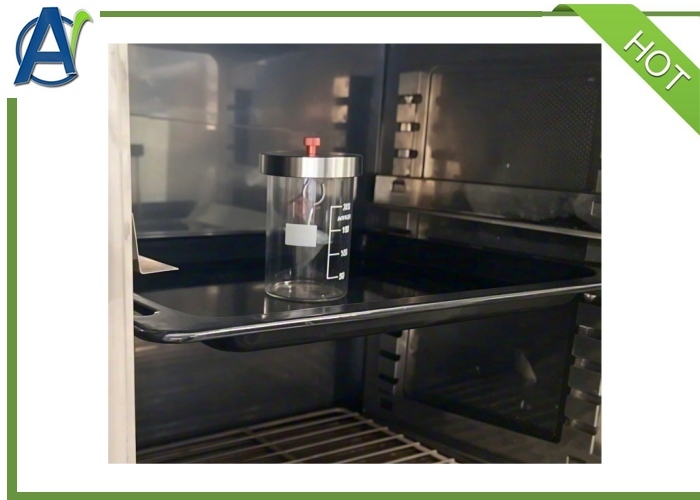

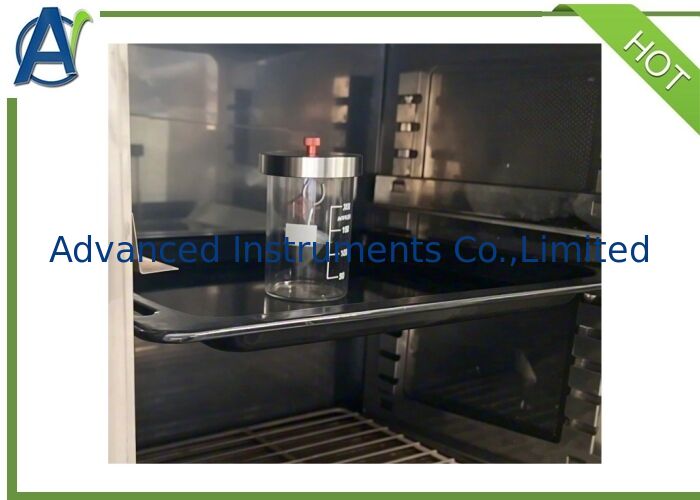

4. Place the assembled steel mesh oil separator into a constant temperature box and maintain it at 100 ºC+1 ºC for 30 hours.

5. After reaching the specified time, remove the steel mesh oil separator from the constant temperature box and cool it to room temperature.

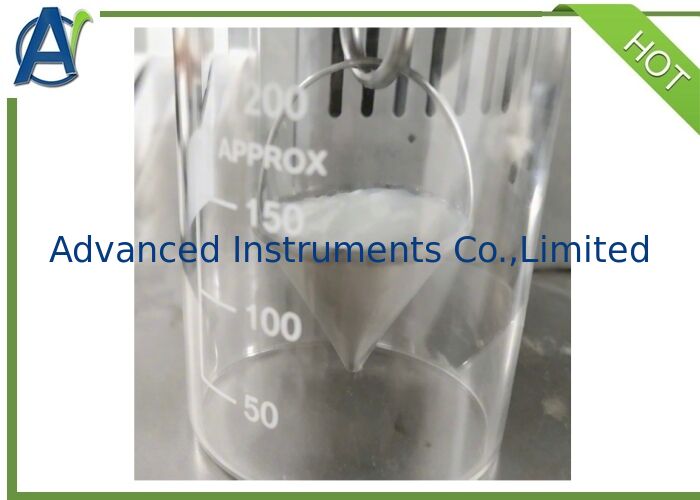

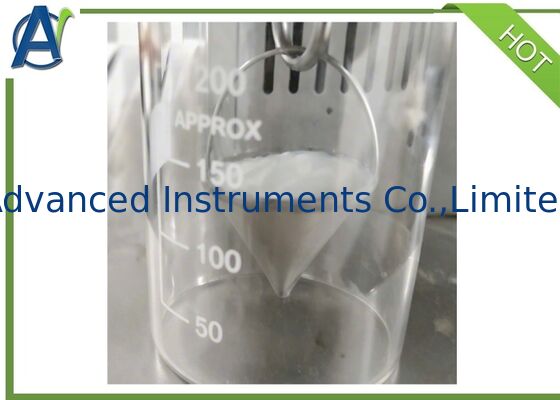

6. Take out the steel mesh from the cup and let the oil on the tip of the mesh drip into the beaker along the cup wall.

7. Weigh the mass of oil in the beaker to the nearest 0.01 grams.

FAQ

What's the delivery time?

About 30days.
What's your payment terms?

30% paid by T/T in advance,70% paid by by T/T before shipping.
What's your guarantee terms?

The warranty of all products is 1 year.During this period,we are responsible for all faults caused by us.And we can supply life-long technical support.
Can you supply training?

We can supply training in our factory and online training for free.If onsite installation and training are required,please pay for tickets,accommodation and salary USD280/Day for every person.
